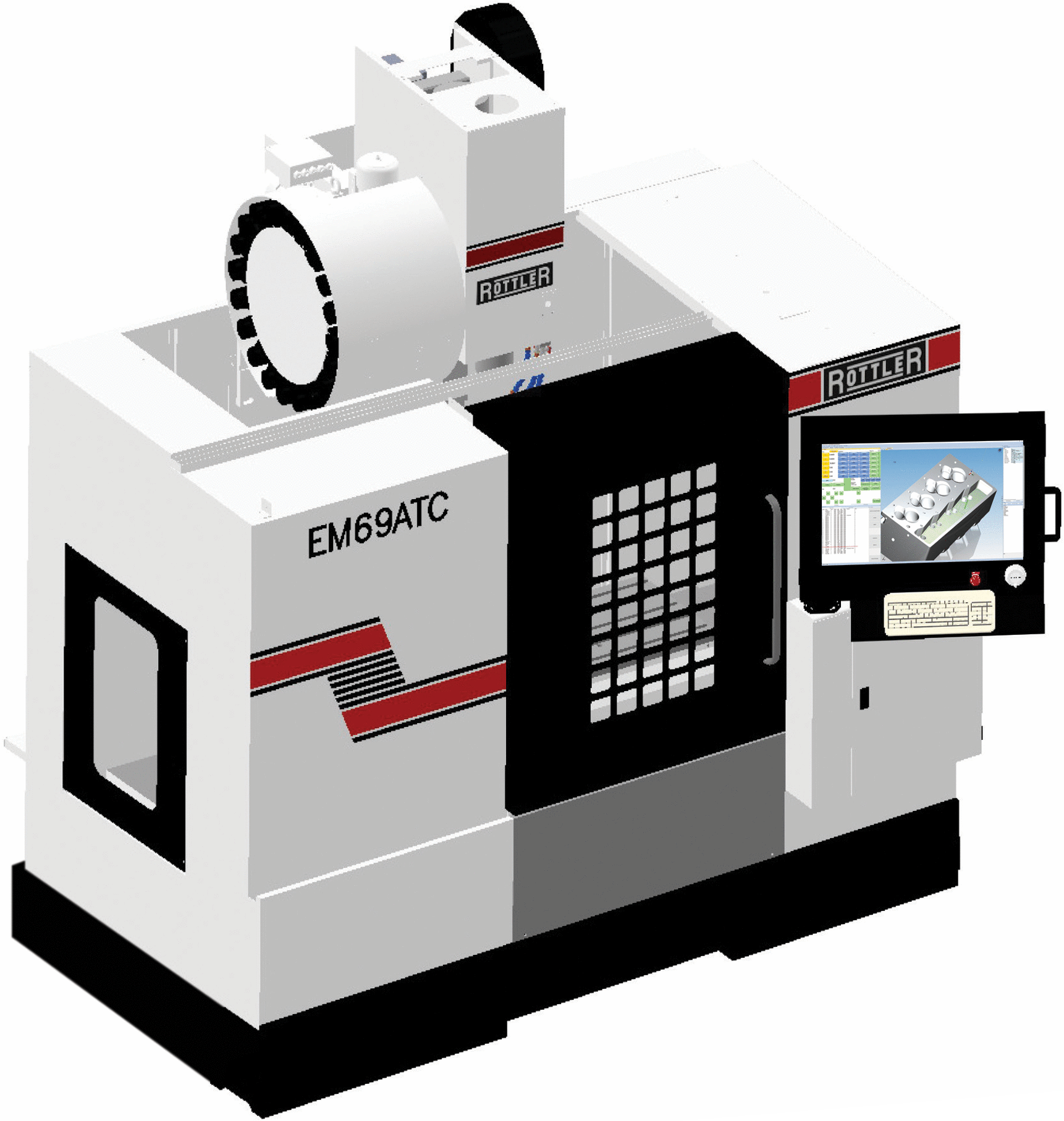

EM69ATC
The EM69ATC 3 and 4 axis CNC Machining Center is versatile and great for machining engine blocks and making custom parts with a 24-tool Automatic Tool Changer. Read more in the "Features" tab below.
Rottler’s totally new, next generation CNC control found in the EM Series machines continues to give users unmatched speed of learning and ease of use when probing/digitizing without the need of additional cumbersome and expensive software. This advanced 4C software lets users know they are machining with the most state-of-the-science equipment available.
For B2B customers, please register here for EU VAT exemption.
EM69ATC
Sale price€0,00
CHARACTERISTICS
- 5 Axis CNC Digitizing
- Automatic Tool Changer
- CNC Head Porting
- Cylinder Boring
- Cylinder Head Resurfacing
- Lifter Boring
- Line Boring
- Multi Purpose CNC (Custom Parts)
- Thrust Cutting
MACHINEPARTS
- Control: Rottler CNC
- Spindle - Motor Torque: 80 NM
- Slideway Type (X/Y/Z): Linear Roller Bearing Slideways
- Axis Feed Method (X/Y/Z): Direct Coupled Servo Driven Ball Screw
- Table - Size: 500 x 1500mm
- Table - T Slots: 5
- Travel - Horizontal (X Axis): 1000mm
- Travel - In/Out (Y Axis): 500mm
- Travel - Vertical (Z Axis): 762mm
- Travel - Spindle Nose to Table: 1016mm
- Spindle - Taper: CAT40
- Spindle - Rotation Speed: 0 to 20000 RPM
- Coolant Capacity: 320 Liters
- Weight Capacity: 700kgs
- 5th Axis Rotation: 120deg (+/- 60 Deg)
- Feed Rate: 0-2.54mpm
- Tool Changer - Number of Tools: 24
- Tool Changer - Maximum Weight of Tool: 7kgs
- Tool Changer - Maximum Length of Tool: 300mm
- Dimensions - Machine: 2827D x 3025W x 2745mm H
- Dimensions - Floor Space Requirements: 3460D x 4335Wmm
- Dimensions - Shipping: 2300D x 3000W x 2540mm H
- Machine Weight: 6000 kg Electrical Requirements: 208-240V, 60A, 50/60Hz, 3Ph Air Requirements: 28 l/min @ 6 bar
- Paint Color Code: RAL9002 (Grey White)
