Rottler CNC Automatic Programmable Hole-to-Hole Cylinder Boring Machine and Programmable Multi-Pass Surfacing Machine. 1.5 - 9.0" (38 - 230mm) Diameter Boring and 10-14" Diameter Surfacing with Optional Equipment.

Machine Operations

 - Block Surfacing
 - Boring & Sleeving
 - Cylinder Boring
 - Cylinder Head Resurfacing

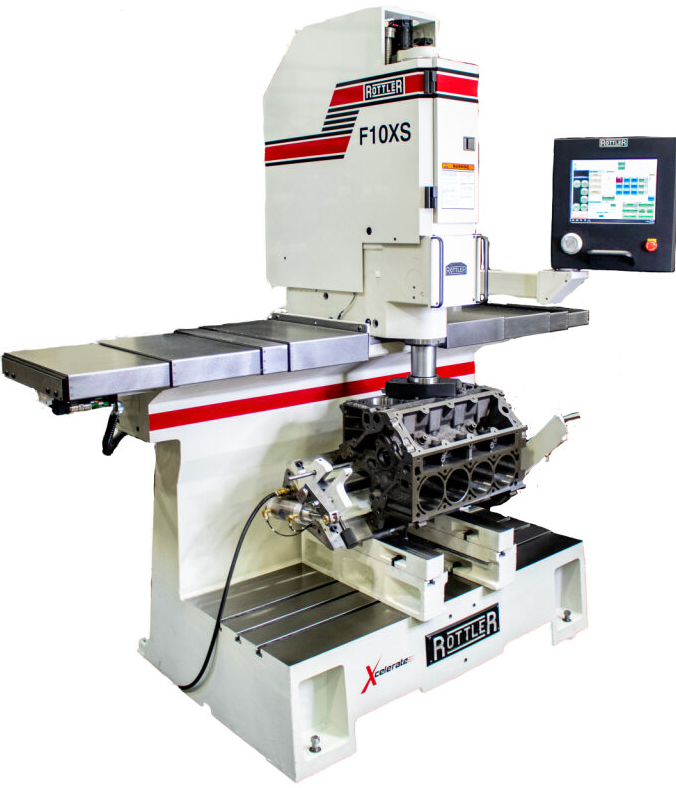

Designed for the everything shop, the Rottler F10XS features Rottler's "Point and Shoot" CNC programmable control for automated and un-attended boring and surfacing of Vee and Inline Blocks as well as Cylinder Heads.

The F10XS is the evolution of over 50 years of Rottler made boring bars. Based on the original F2B model the F10XS features a 4500lb single piece rigid meehanite base casting. The machine uses automatically engaging centering finger system to allow fast and accurate centering on cylinder bores. The rigid base and spindle make sleeving operations a breeze, cuts of up to .200" on diameter can be made in a single pass.

The F10XS features a large work envelope for work on up to 15-liter size blocks such as the Cummins ISX while maintaining a small footprint to save space in your shop. Optional Boring Cutterheads allow for a range of boring applications from 1.5" up too 9" diameters.

Speed

• - The F10XS models use high performance AC servo motors for fast and reliable cutting performance. Spindle RPM ranges from 100 -1200 RPM and Feedrate is infinitely variable in .0001" increments.

Accuracy

• - The F10XS series uses a precision ground ball screws on the Horizontal and Vertical axes to control feed rate and cutter position. All machines are tested and certified to produce less than .001" total indicated runout on cylinder bores at a .040" or less cut on diameter.

Strength

• The Rottler proven spindle and bearing design gives you a rigid machine capable of making heavy sleeve cuts for a lifetime. Sleeving operations can be performed in one or 2 passes on sleeves up too .200" in total oversize thickness.

Flexibility

• - With optional equipment the F10XS can perform the work of 2 machines in one package. Save floor space with a compact and capable machine which can switch from Boring to Surfacing Operations in less than 1 Minute and Switch from Fixturing Cylinder Blocks to Cylinder Heads in less 15 minutes.

Reliability

• - The F10XS is designed and developed from over 50 years of innovation in this platform. This makes the machine a piece of equipment that can be trusted to run for decades just like the original F2B which has many operational examples currently still working!

Return on Investment

• - The F10XS saves space by combining 2 machines into 1 platform. Eliminating the need to move blocks between machines saves times and improves accuracy. 1 Operator can bore and surface a V8 block in 30 minutes. Automation allows the same operator to perform other work while the cutting process is occurring. In a work-cell floorplan a F10XS when paired with a CNC honing machine can allow one operator to produce a fully machined V8 block (Bore, Surface, Hone) in 1 hour or less!

Compact and Powerful, the F10XS can complete a Floor-to-Floor Bore and Surface on a V8 block in as little as 30 minutes. Cylinder heads can be run at a production rate with Rottlers Dual-Axis-Leveling Table, where modern low Ra surfaces (as low as 12 microinch) can be achieved with ease.

Standard Equipment

• Automatic Hole-to-Hole Unattended Boring and Surfacing Machine

• CNC (Computer Numerical Control) Machine using Windows Operating System and Industrial PC with Intel Processor.

• Precision Programming and Control with a 15" (367mm) Computerized Touch Screen.

• Software for Programmable Automated Cycles such as Boring, Sleeving, Counterboring, Chamfering, O-Ringing, and Surfacing

• All motors - AC Servo Motors with BISS Encoders - Infinitely Variable;

• Horizontal Movement (X Axis) - Left/Right - 44" (1117mm)

• Vertical Movement (Z Axis) - Up and Down – 15” (380mm)

• Vertical and Spindle Load Monitoring for Fast Overload Shut Down

• Precision Position Display in .0001" (.002mm) Resolution.

• Electronic Hand Wheel for manual movement - per click: Coarse Mode .01" (.25mm) Medium Mode .001" (.01mm) Fine Mode .0001" (.002mm)

• Infinitely Variable Feed rates adjustable by hand wheel during automatic cycles

• High Performance Spindle Rotation AC Brushless Servo Motor - infinitely variable to 1000RPM

• Heavy Duty Hard Chromed Precision Spindle 3.25" (82.5mm) Diameter with High Speed Angular Contact Bearings supported with Adjustable Conical Outer Bearings

• Spindle with Quick Change Cutterhead System

• Fast Rapid and Jog Speeds for Reduced Cycle Time

• Automatic Work Head Tilt System for Milling Mode Tilt Lead. Ensures no Back cutting when Surfacing

• One Piece Heat Treated Meehanite Cast Iron Machine Base

• Turcite Coated Slideways for Low Friction and Extended Life

• Automatic Central Lubrication System monitored by computer
