FG10000
Tax excluded. Shipping calculated at checkout

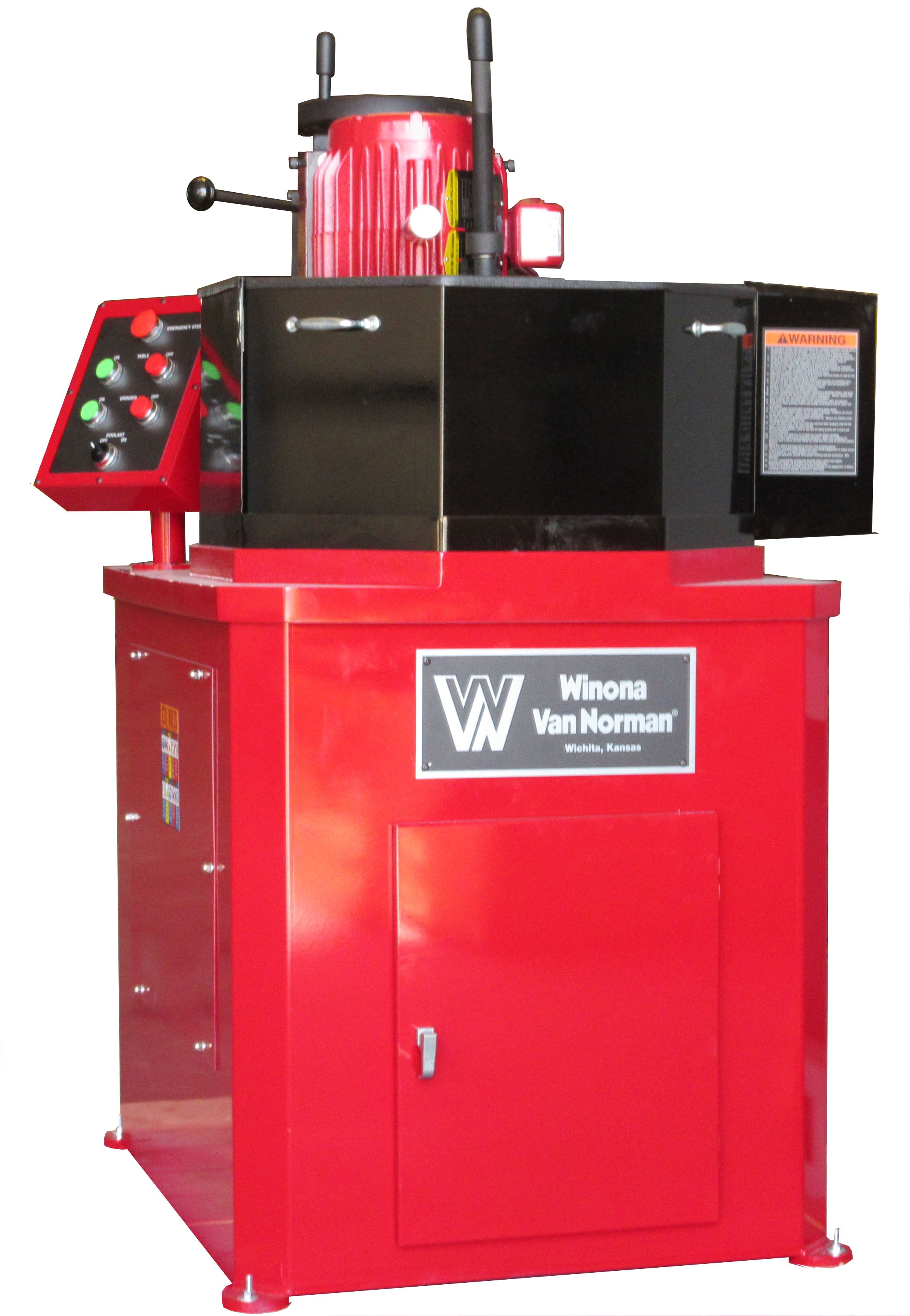

The FG10000 Flywheel Grinder is a solid, well-built machine designed for grinding a variety of flywheels. One of the most versatile grinders on the market today, the FG10000 Flywheel Grinder resurfaces automotive and import stepped flywheels, truck flat flywheels, heavy duty truck stepped flywheels center plates, and racing clutch components. You can also grind Heavy Duty Commercial Truck Brake Rotors with the HD Truck Rotor Kit.
For B2B customers, please register here for EU VAT exemption.
FG10000
Sale price€0,00
CHARACTERISTICS
- Solid cast iron rugged design
- exclusive cast in table support
- industrial quality gear motor direct table drive for constant torque
- Centering cones
- Replaceable Radius Cutter Tip Holder
- Superabrasive Grinding Wheels
- Stone grinding wheels
- Rinse nozzle kit (optional)
MACHINEPARTS
The FG10000 Flywheel Grinder takes work pieces up to 24". With a table diameter of 18" and six (6) slots in the table, you have the stability and versatility for a full range of work. The table support diameter is 15" and the column diameter is 5.5". The vertical head travel of the column is 8.75" with the maximum height of the table to wheel of 10.50". A strong, 10 horsepower grinding motor at 3,500 revolutions per minute and a 1/3 horsepower table motor at 16 revolutions per minute.
The overall height of the FG10000 Flywheel Grinder is 69" with the height to the table at 34.6". The width is 34.5" and the front-to-back measures 36". The weight of the machine is 1,550 pounds. Packaged for shipping, the weight is 1,700 pounds.
