FG5000
Tax excluded. Shipping calculated at checkout
The FG5000 will grind from the small automotive to the largest heavy duty.
Solid cast iron rugged design, exclusive cast in table support, industrial quality gear motor direct table drive for constant torque. Setup is extremely fast and accurate.
Grind most automotive and light truck flywheel floor to floor in 5 - 10 minutes -- slightly longer for the Heavy Duty stepped flywheels. The FG's cost just a few dollars per day to own, takes very little floor space, and will last for many years. The FG's are an excellent investment! Supply costs are minimal and labor costs are low since a skilled machinist is not needed.
Solid cast iron rugged design, exclusive cast in table support, industrial quality gear motor direct table drive for constant torque. Setup is extremely fast and accurate.
Grind most automotive and light truck flywheel floor to floor in 5 - 10 minutes -- slightly longer for the Heavy Duty stepped flywheels. The FG's cost just a few dollars per day to own, takes very little floor space, and will last for many years. The FG's are an excellent investment! Supply costs are minimal and labor costs are low since a skilled machinist is not needed.
For B2B customers, please register here for EU VAT exemption.
FG5000
Sale price€0,00
CHARACTERISTICS
- Solid cast iron rugged design
- exclusive cast in table support
- industrial quality gear motor direct table drive for constant torque
- Centering cones
- Replaceable Radius Cutter Tip Holder
- Superabrasive Grinding Wheels
- Stone grinding wheels
- Rinse nozzle kit (optional)
MACHINEPARTS

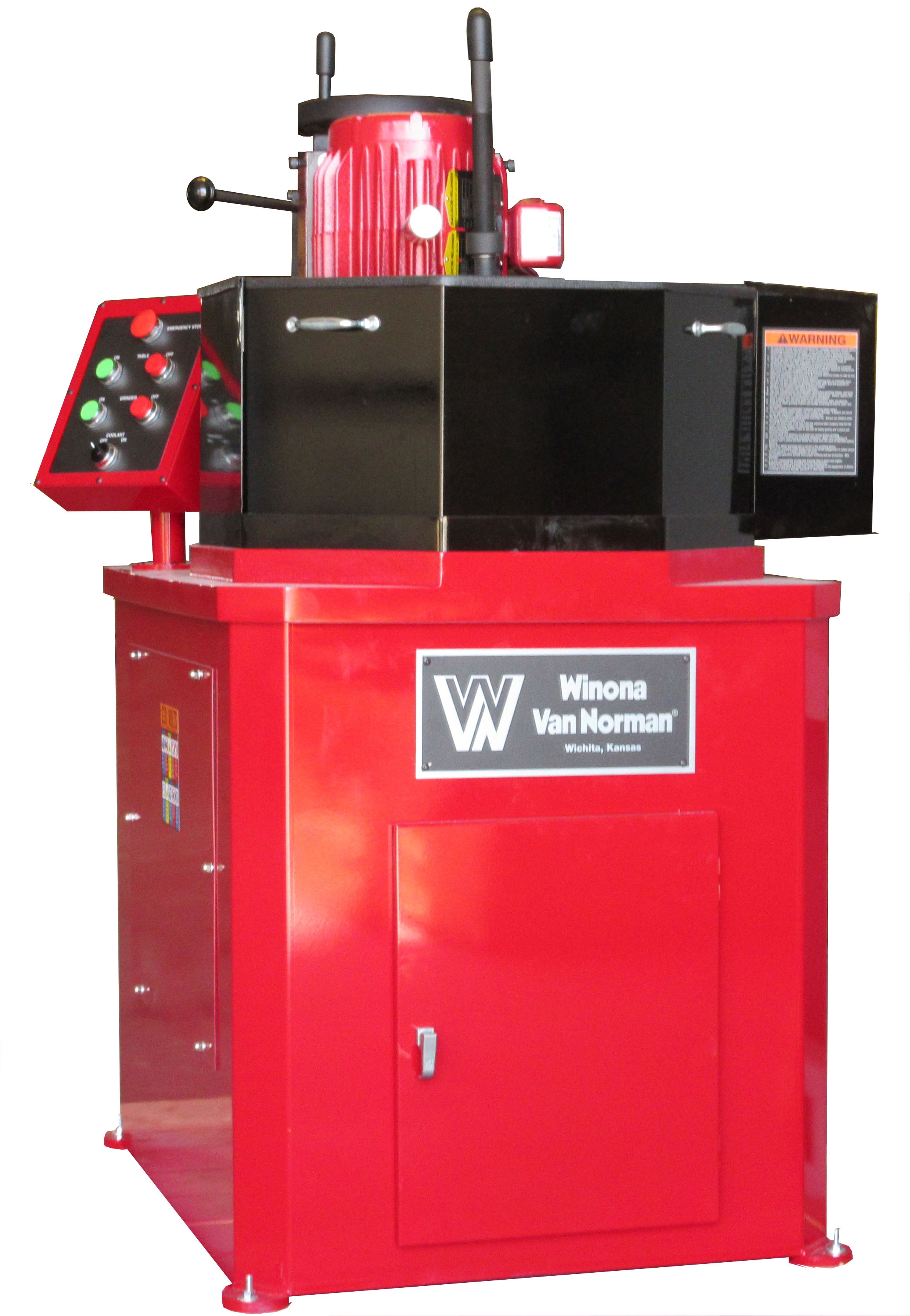

The FG5000 Flywheel Grinder takes work pieces up to 24" wide. With a table diameter of 18" and six (6) slots in the table, you have the stability and versatility for a full range of work. The table support diameter is 15" and the column diameter is 4.44". The vertical head travel of the column is 8.75" with the maximum height of the table to wheel of 8.75". A strong, 5 horsepower grinding motor at 3,500 revolutions per minute and a 1/4 horsepower table motor at 16 revolutions per minute.
The overall height of the FG5000 Flywheel Grinder is 69" with the height to the table at 34.6". The width is 34.5" and the front-to-back measures 36". The weight of the machine is 1,350 pounds. Packaged for shipping, the weight is 1,500 pounds
