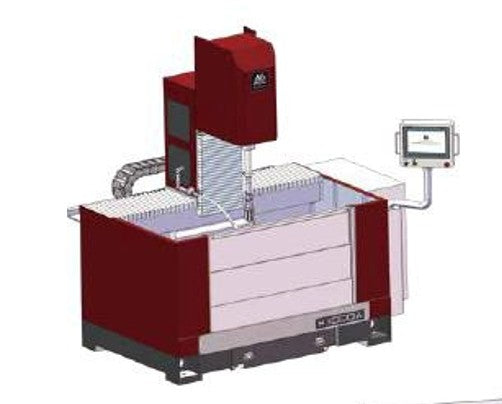

H-1000A PLC controlled economy Honing machine

MODEL : H-1000A PLC controlled economy model

The AMC-SCHOU vertical honing machine H1000A is one of the best automatic honing machine in the industry. With the latest computer control and Siemens servo systems, AMC-SCHOU decades’ experience on machinery developing and producing, the H1000A Honing machine offers high precision, easy to use and lasting long working life for our customers all over the world.
Every single part of the machine has been controlled several times during the manufacture, and just before shipping the machine has been tested according to the test certificate delivered with the machine.
Following closely the instruction contained in the manual will secure excellent grinding results and through careful maintenance of the machine such results can be obtained during a long row of years.
A thorough study of the operating manual is necessary in order to obtain excellent honing results, and by correct maintenance of the machine accurate honing results can be obtained for a great number of years.

CAPACITY :
Max. honing diameter: 300mm
Max. length of stroke : 500mm
Max work piece length: 1500mm

Technical Data:

Diameter Range: 45-300mm
Spindle Speed: 1-500RPM
Stroke Speed: 0-30m/min
Stroke Length: 500mm
Work-head Horizontal Travel: 1000mm
Spindle Motor: 2.5kW
Stroker Motor: 2kW
Move motor: 1.5kW
Feed motor: 0.6Kw
Pump motor: 0.25Kw
Coolant Capacity: 150L
Dimensions-Floor Space Requirements: 2300x2100x2500mm
Weight: 2500Kg
Electrical requirements: 400V, 3Ph, 50Hz
