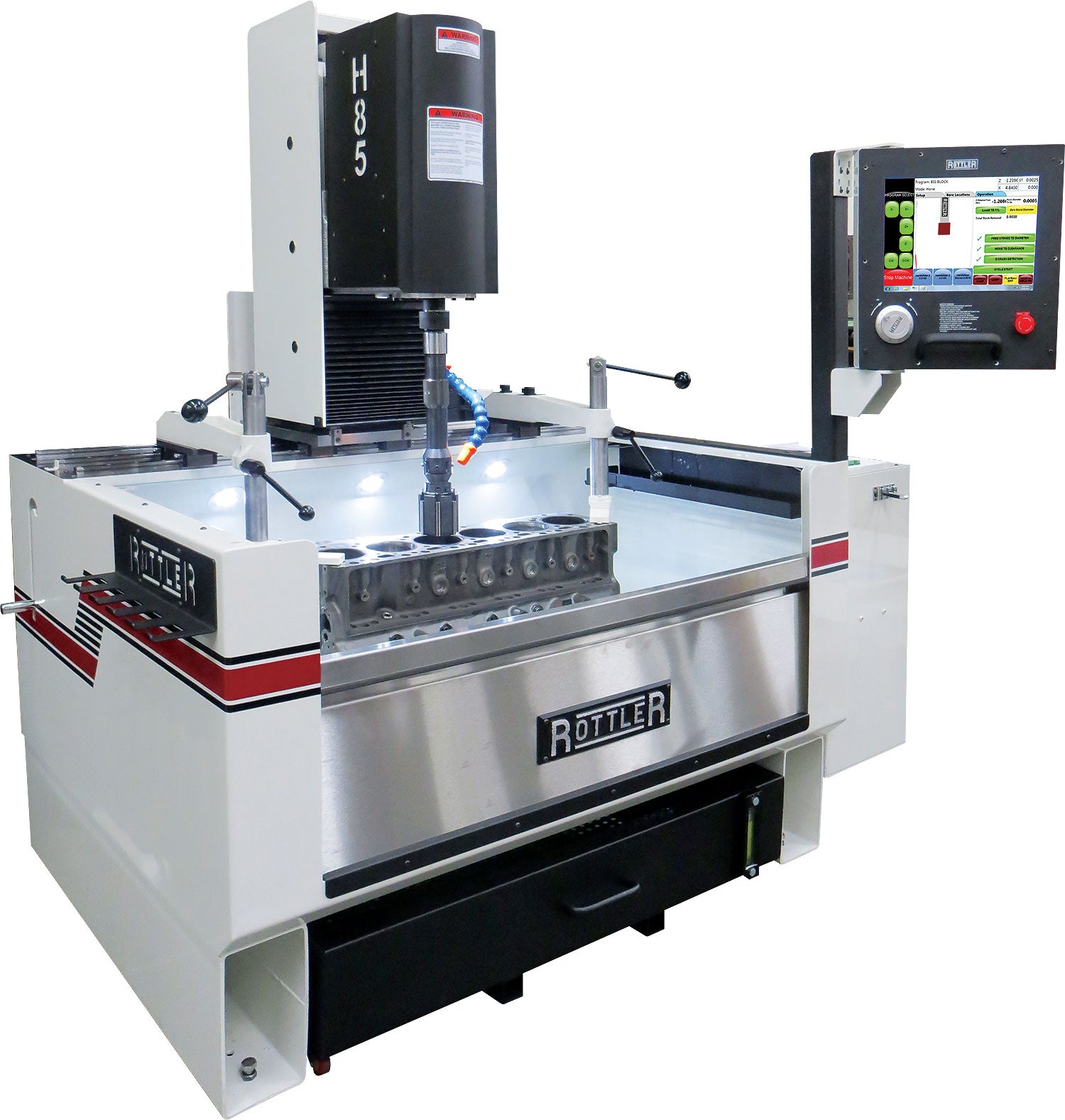

Rottler H85A CNC Automatic Vertical Honing Machine offers true, constant and accurate crosshatch angle the entire length of the bore with machine feeding stones to specified load during honing process and withdrawing stones before stopping. Rottler understands surface finish is critical and it can be hard to replicate consistently block after block. The Rottler H85A accomplishes this with extreme reliability and can pay for itself in less than 5 years! *

• Rottler Plateau Mode loads to proper stone pressure before starting rotation and counts down number of strokes.

• Diamonds and CBN stones save money with built-in Crash Protection that prevents tearing up hone heads, stone holders and diamond/CBN abrasives.

• Modern CNC Windows based software with online capabilities.

• Save time maintaining coolant with superior filtration and roll out coolant tank.

* Pay back the cost of the machine in less than 5 years compared to traditional machines using stones and oil. Calculated considering labor saving (using Rottler CNC) and consumable savings (using diamond stones and water based coolant).



Features

Automatic Lower Crash Protection SystemMany Engine Blocks have interference in the lower area of the bores and can damage honing stones and holders. Everytime the H85A starts honing a cylinder, the machine will check bores for interference avoiding potential damage to honingstones and holders. Variances in lower bores are common. Rottler H85A Control senses lower bore interference prior torotation and stroking stroking motion starting at full power, eliminating any stone or holder damage.

Control

Rottler Software is designed with Simplicity in mind. Conversational software allows operators to quickly and easily learn and create their own programs. It takes only a few minutes to create a new program for a new block then it is saved for future recall and use.
