HORIZONTAL ENGINE BALANCING MACHINE LEGEND SERIE

SKU: HC500

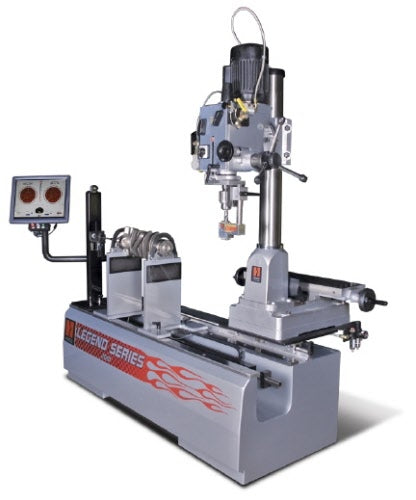

MODEL HC-500 LEGEND DYNAMIC BALANCING MACHINE

High performance engine balancing with laser precision

The Legend is a unique balancing machine, the ultimate solution for balancing crankshafts, flywheels and dampers. The Hines Industries Model HC-500 Legend balancing machine is a computer based, dynamic (two plane) or static (single plane) manual load, single station, balancing machine. The Legend utilizes a rugged hard-bearing suspension that gives high sensitivity and permanent calibration. Part set ups are menu driven, allowing an operator to quickly change between single-plane and two-plane balance operations. The balancer will calculate amount, angle and multiple-hole corrections. Adjustable stanchions allow for easy changeover for a wide range of part sizes. The base is made of concrete for stability and mass. The Legend Series provides the latest in technology available today for engine balancing.

Standard Features

  • User-friendly touch screen menu
  • User configurable display colors (readouts and background)
  • Industry-leading post-sale service and support



Standard Machine Specs

Machine Base:

Base (length, width, height):   72" x 30" x 24"   /   183 cm. x 76 cm. x 61 cm.

Suspension:

Type:   "Hard Bearing"

Measuring Planes:   Single plane (static) and two-plane (dynamic)

Support Bearings:    Plastic vee-blocks (standard)

Support Bearings:    Roller Bearings (optional)

Drive:

Motor Description:    1 HP

Balancing Speed:     400 to 700 RPM

Braking:                    dynamic

Drive type:                Underslung Belt

Drive diameter range          2" to 20"     /   5 cm to 51 cm

Guarding and Part Restraint:

Guarding:                              Manual retainer on each stanchion

Magnetic U-joint Assembly:   Encoder for angle orientation

Machine Capacity:

Weight capacity:       500 lbs.    /      227 kg

Minimum part weight:          5 lbs.2.3 kg.

Maximum diameter over base:       36"  /    91.4 cm

Part diameter at bearings:  1.5" to 4 1/2"   /   3.8 cm to 11.4 cm

Workpiece length between supports:       5" to 56"    /     12.7 cm to 142 cm Workpiece center height above floor:     38"   /    96.5 cm

Specifications:

Balance Repeatability:        +/-0.01 oz.in     /    +/-0.7 gm.cm.

Power: 110VAC/1ph/60Hz. / Legend Series is also available in 220VAC, please mention your wish at quote request.

Balancer Paint Color:          Hines Silver

Shipping Weight:      3,460 lbs.    / 1569 kg.



Legend Balance computer

Based on the design of the Industrial Hines Cradle balancer (HC), this machine has many special features and software for balancing crankshafts. It features a PC utilizing the Windows 10 operating system, with a flat panel touch screen. It has User-friendly menus for operator ease of use. Large characters are displayed on a 22” high resolution Flat Panel display. Software includes many screens tailored to balancing crankshafts and engines for performance racing.

Standard Software Capabilities:

  • User friendly menus allow for easy setup and easy operation
  • Unbalance readout is displayed in both numerical format and as a polar graph
  • Dual Polar Displays makes for easy interpretation of balance results
  • Single or Two Plane balance readings (dependent on application)
  • Balancer displays “Good Part” when balanced to specification. Specification based on adjustable tolerance in PC software
  • Unlimited part setups and jobs storage
  • Automatically calculated multi-hole drilling calculations tell you how many holes, where to drill, and how deep
  • Automatically calculated heavy metal corrections allow you to make even larger corrections using Mallory metal. This may be necessary for jobs with more intense engine modifications
  • Part Orientation Angle Indicator. Allows PC to display the angle that the part is rotated to in respect to the machine. Connects to the part via easily attachable magnet
  • “Engine Build Sheet” software allows for entry of all details of your engine build
  • Laser alignment system helps you line up the part exactly where it needs to be drilled.
  • Data Acquisition/IO/Encoder board as well as electronic filter board are enclosed within the computer case along with the PC components. These allow for precise electronic measurement of the unbalance
  • Fan-less computer enclosure makes the computer well suited for dirty environment.

Extra optional Tooling:

  • V-6 Premium Bobweight: with guides & quick release
  • V-8 Premium Bobweight: with guides & quick release
  • V-6/V-8 /V-10 Combo Bobweights: with guides & quick release



  • Drill, Gear Head: 21-inch swing diameter,220VAC/1ph/60Hz (X-Y table not included) Includes drill chuck - to 0.750" dia. R8 to Morse Taper #3 Adapter

Mount and Slide Mechanism listed below is required for drill:

  • 5 feet long for a 6-foot base with air lock
  • 7 feet long for an 8-foot base with air lock
  • Drill Spacer



  • Drill/Mill, Gear Head: Allows Drill/Mill to rotate 360 degrees, For milling of pistons on x-y table, 21-inch swing diameter, 220VAC/1ph/60Hz. Includes drill chuck – to 0.750” dia.R8 to Morse Taper #3 Adapter

Mount and Slide Mechanism listed below is required for drill/mill:

  • 5 feet long for a 6-foot base with air lock
  • 7 feet long for an 8-foot base with air lock
  • Drill/Mill Spacer



  • Graphic Drill Depth Indicator: Displays the drill’s depth on the PC screen within 0.001” allowing the operator to make precise corrections. Includes hardware, software and interface cable
  • Digital Depth Indicator: A digital instrument allowing the operator to measure depth
  • Piston Vise: Used to clamp pistons for milling

ADDITIONAL ENGINE BALANCING ACCESSORIES

  • Test Rotor:This is the same test rotor that is used during the factory machine calibration process. Included with this test rotor are two one-ounce test weights and a
    carrying case.
  • Precision Flywheel Balancing Mandrel. Cone style, hardened and ground, also designed to be used as a test rotor.
  • Spacers, set of 4: To balance parts with different journal diameters.
  • Spare Belt: 3/4" x 52” pn 944-10-208
  • Spare Belt: 1/2” x 56” pn 944-10-106
  • Spare Belt: 3/4” x 56” pn 944-10-209
  • Spare Belt: 3/4" x 60” pn 944-10-210
  • Drill Platform and Clamps: Used for addition of heavy metal
  • Roller Bearing Kit
  • Chip Removal System. Automatically collects debris left from drilling.
  • Custom Paint Color: The standard paint color is Hines blue. Custom paint colors are available as an option.
  • Spare Parts Kit.

Interested? Please request quote for prices.
