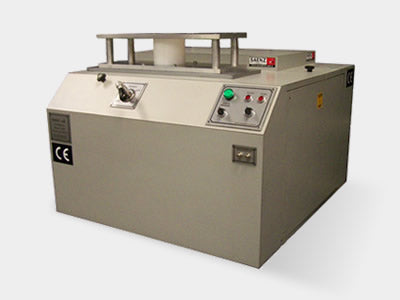

J-400
Tax excluded. Shipping calculated at checkout
Modular design. Saenz flowbenches offer the option to upgrade them any time. Automatic pressure control can be easily added to a manually operated flowbench and also the measurement and automated valve movement. J series are the completely automated option, the flowbench performs all the tests without the operator driving: work pressure and valve lift are controlled and set regarding the test set up, you only need to select flow direction (intake or exhaust).
For B2B customers, please register here for EU VAT exemption.
J-400
Sale price€0,00
CHARACTERISTICS
Acquisition software has different tests types, specific for cylinder head, carburetors or air speed maps building all with a wide range of tools to analyze and compare the results.
MACHINEPARTS
- Capacity: 400 cfm @ 28" of water
- Dimensions: 90 x 80 x 75 cm
- Weight: 125kg
- Electric sources: 240/380 VAC, monophasic 50/60 Hz
- Max Consumption: 10 Amp per phase
- Flow Direction: Intake and exhaust
