K-LINE Guide-Top-Cutters and cutter pilots

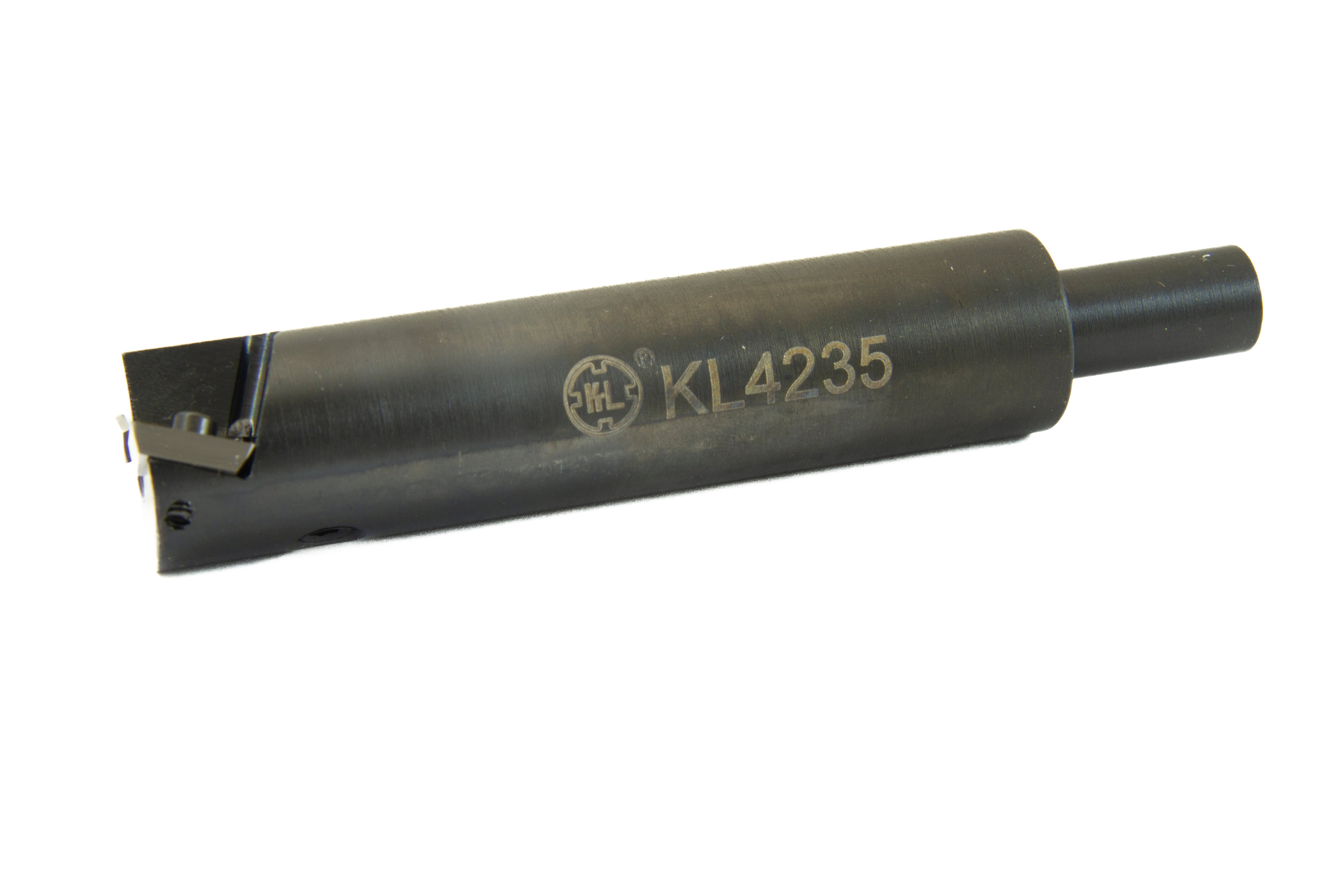

KL4235 Guide-Top-Cutter

Designed to be used when cutting excess Guide-Liners. It has replaceable carbide blades, which are fastened on with screws. Uses standard K-Line guide-top cutter pilots.

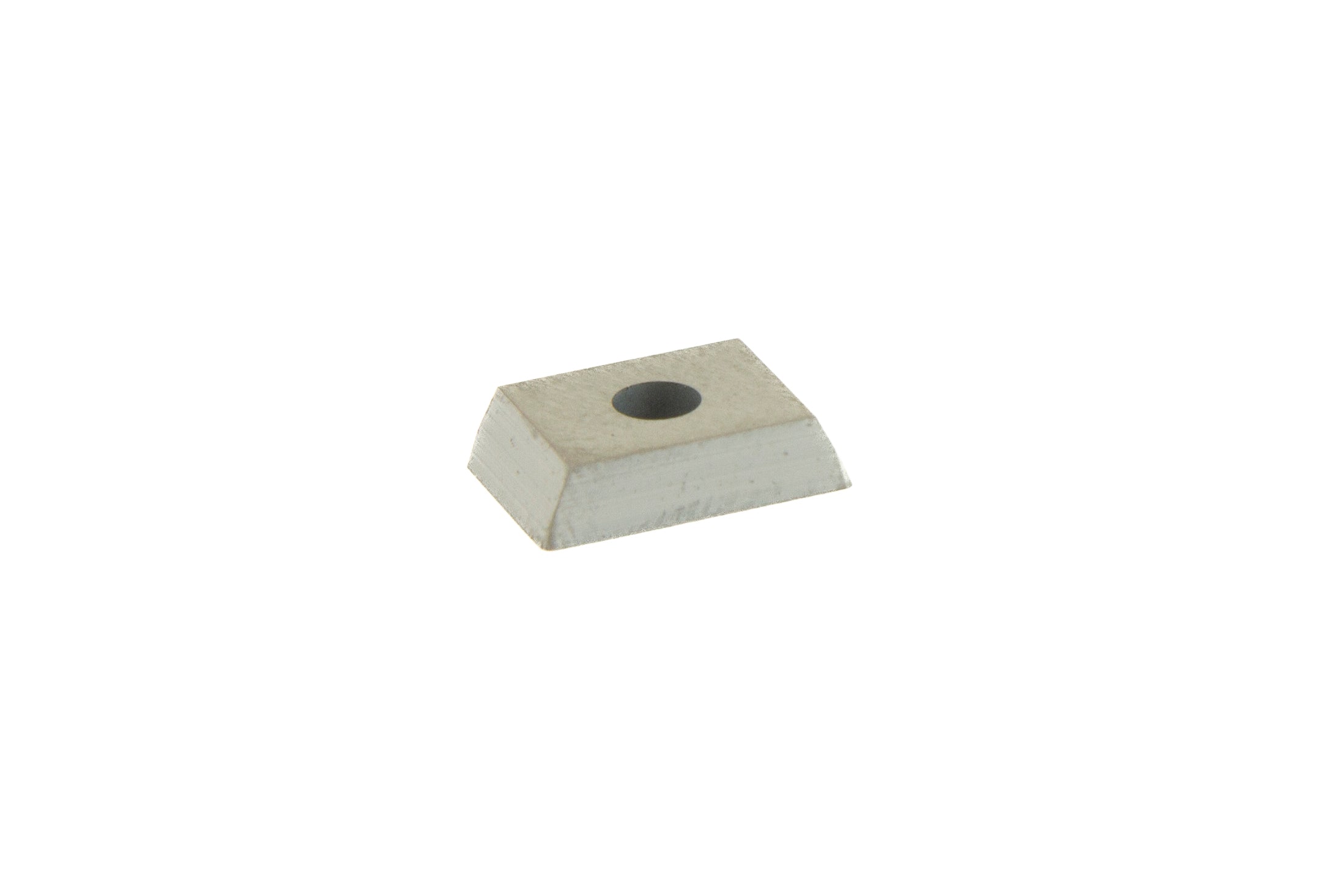

KL4236: Replacement Carbide Blade (2 required)

KL4237: Replacement Holding Screw

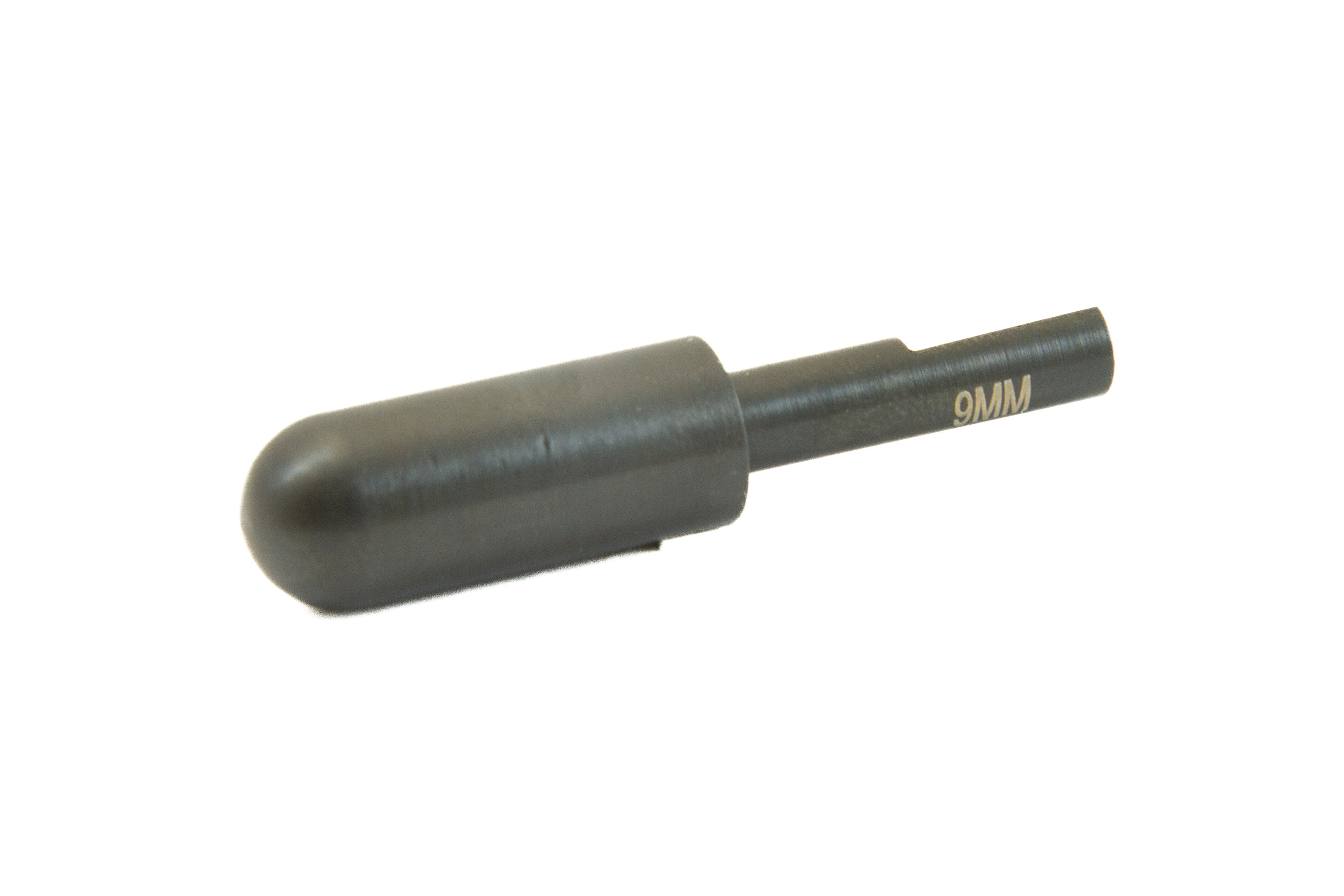

Cutter pilots

Part No                Cutters

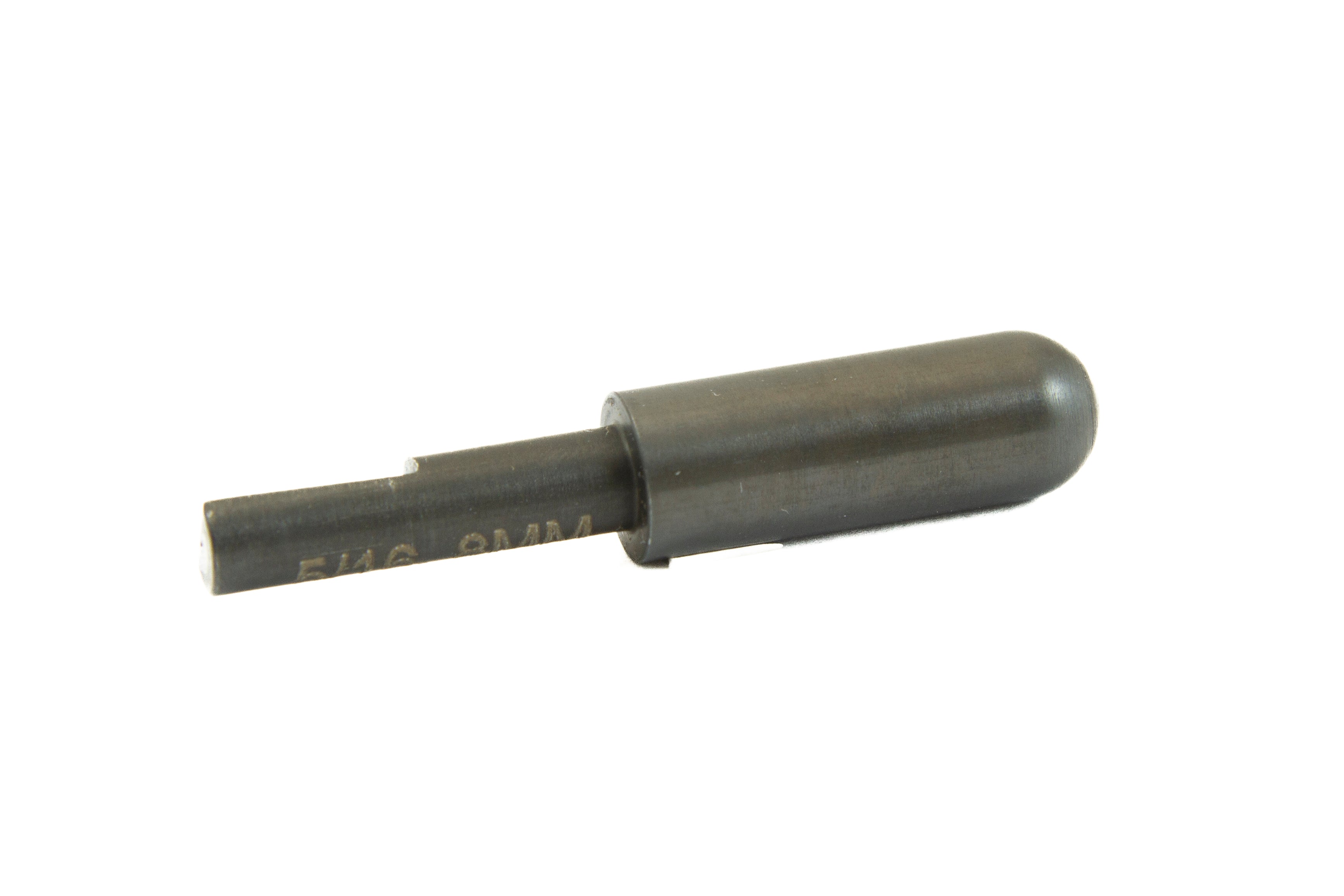

KL4238                5/16"-8mm

KL4239                11/32"

KL4240                3/8"

The tool shank is 5/8" in diameter x 4" long and the reversible carbide blade is 720 in diameter.

KL4233 Small Diameter Deluxe Guide-Top Cutter

Reversible Carbide Blade

This deluxe cutter is ideal for cutting excess Guide-Liner material form valve guide bosses in limited clearance areas found on small port cylinder heads. Pilots are interchangeable with the larger KL4235A Deluxe Guide-Top Cutter.

Cutter Pilots

Part No.             Cutters

KL4246            5.5mm

KL4245             6mm

KL4243             7mm

The tool shank is 3/8" in diameter x 3 3/4 long and the reversible carbide blade can cut up to a 7/16" diameter guide boss.

KL4234: Replacement Carbide Blade
