KWIK-WAY High Precision (HP) Chuck SVS range 4-14,3 mm
Tax excluded. Shipping calculated at checkout

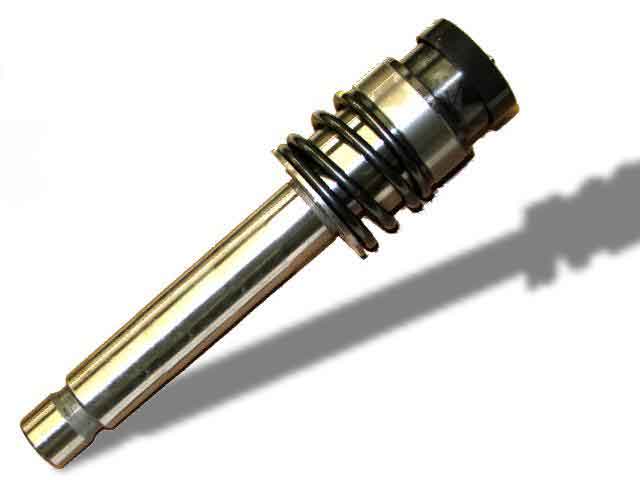

The Kwik-Way High Performance Valve Chuck: Redefining Valve Grinding Accuracy
Building on our century-long legacy of innovation, Kwik-Way proudly introduces the next evolution in valve grinding technology: the High Performance Valve Chuck. This advanced system takes our renowned 6-ball Centerline Chuck design to new heights of accuracy and reliability.
The High Performance chuck employs an enhanced gripping mechanism, now securing the valve stem at three points spaced 2.75 inches apart. This tri-point grip ensures an even more precise alignment between the valve face and stem guide, resulting in concentricity and alignment accuracy to within two ten-thousandths of an inch.
Our High Performance chuck retains the versatility Kwik-Way is known for, accommodating an expanded range of automotive valve stem sizes. The compensating feature has been refined to handle even the most challenging valves with irregular circumferences or size variations along their length.
The air-assisted operation and engineered valve stop makes changing valves lightening fast. The precision balls and collars are manufactured to exacting standards in our U.S. factory, ensuring unparalleled accuracy across the entire chuck assembly.
We thoroughly inspect every High Performance chuck that we make to be certain it can center a hardened and ground arbor to within one-thousandth of an inch of perfection - a new industry benchmark for valve grinding accuracy.
Elevate your valve refacing process with the new Kwik-Way SVSIID valve grinder, featuring our High Performance chuck. Experience a level of accuracy that sets a new standard in the industry.
Specifications:
- Compatible with SVSIID+, EVS+, and VL+ models (Serial Number 3680 and higher)
- Extended stem diameter range: .118” - .630” / 3.0mm - 16.0mm
- RANGE: .1575” - .5625” / 4.0mm - 14.3mm
- Includes Enhanced 6-Ball Chuck Assembly, and Precision Disassembly Kit
Choose Kwik-Way High Performance chucks for the ultimate in valve grinding technology, where every micron matters.
This High Performance Chuck will have 0.0002 runout or less.
