KWIK-WAY Chuck Feed Handwheel Assembly SVSIID
Tax excluded. Shipping calculated at checkout

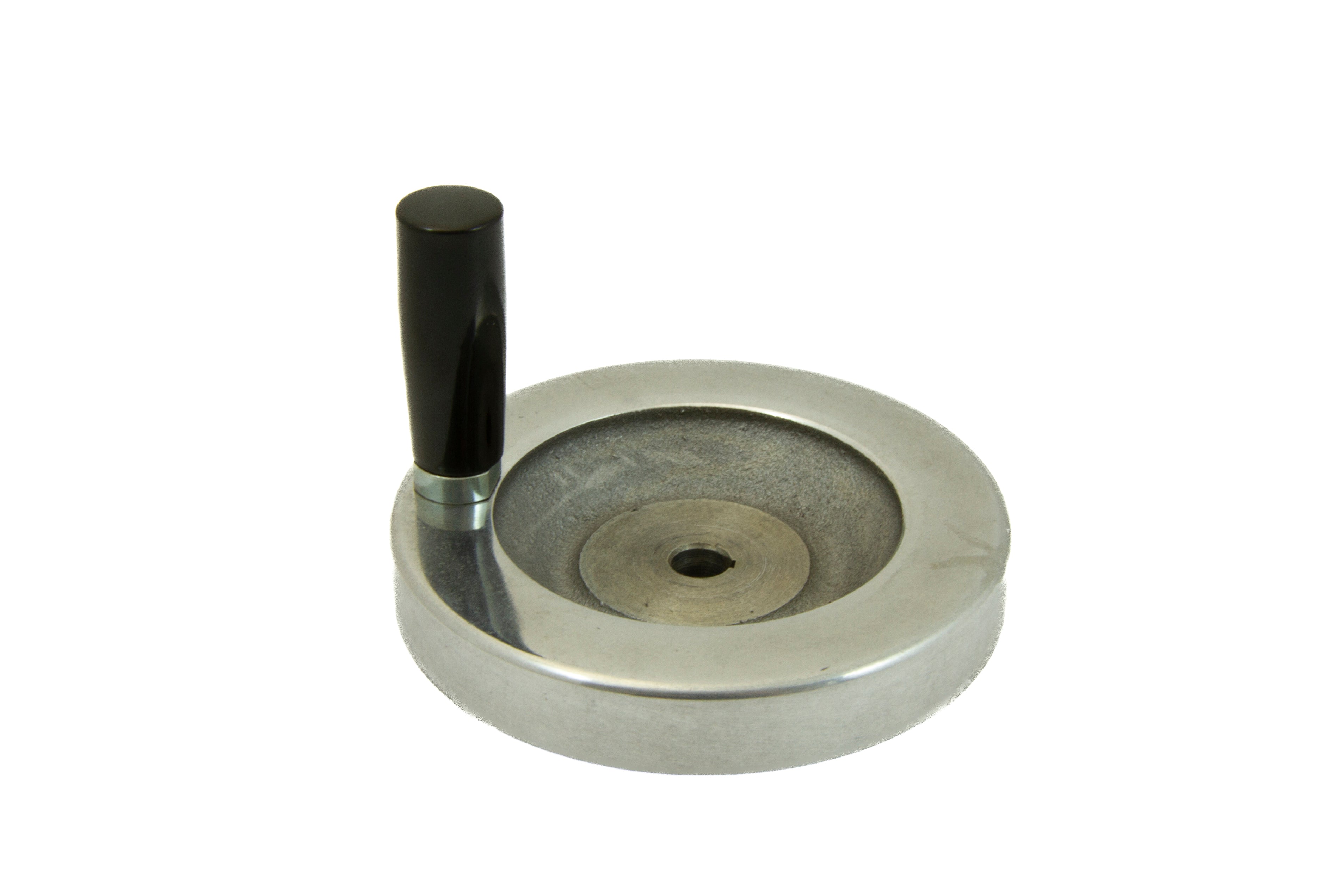

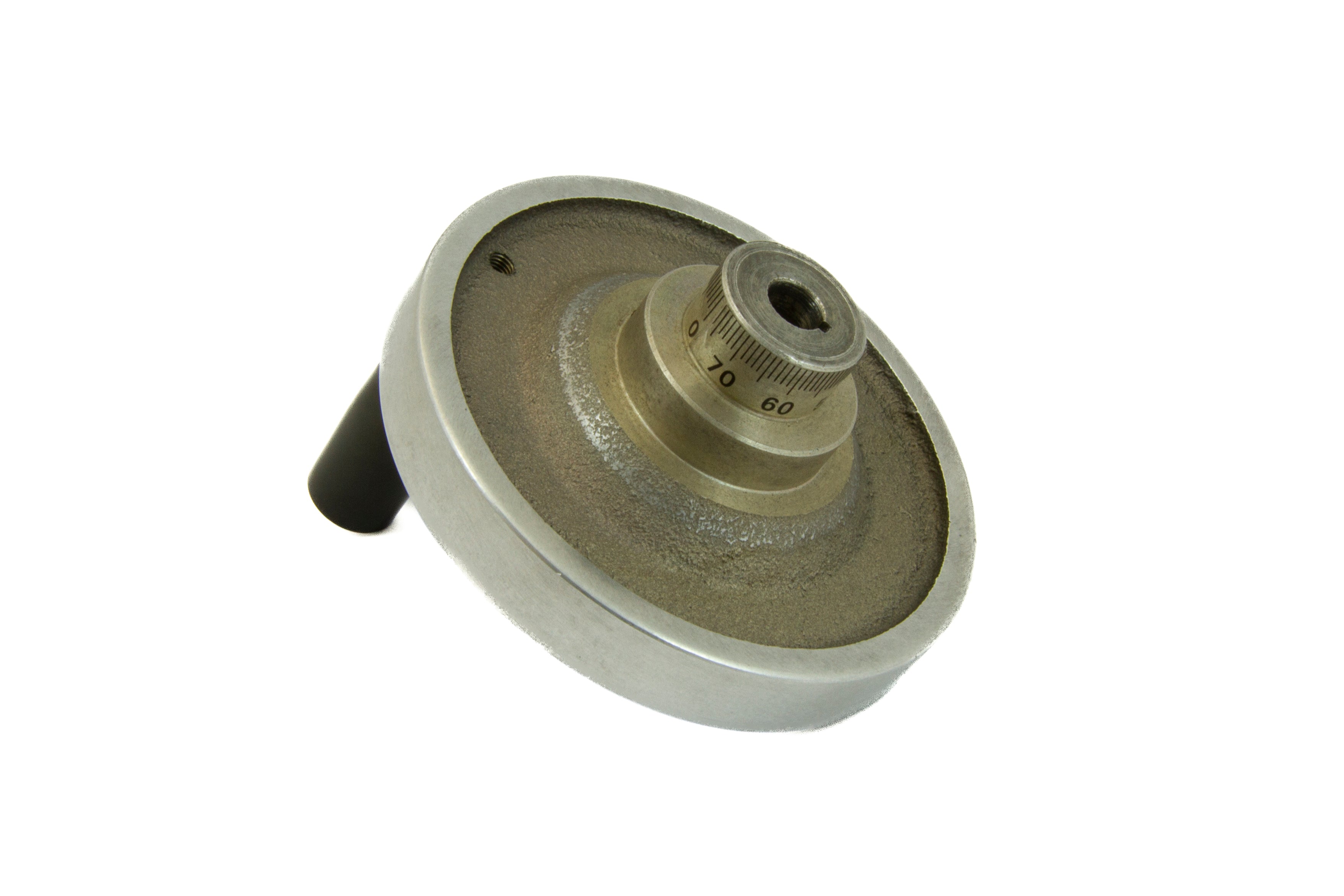

The Chuck Feed Handwheel Assembly is a component of the Chuck Bearing Slide Assembly in Kwik-Way SVS II Deluxe Valve Refacers with serial numbers 12651 and up. This assembly allows the operator to precisely feed the valve towards the grinding wheel during the valve face procedure, enabling accurate material removal.
This feed wheel is exclusively used while grinding the valve face and is NOT used when grinding the valve stem (Cut-Off Grinding).
The [012-1042-10] Chuck Feed Handwheel Assembly includes the following parts:
- 000-0515-27 ¼”-20 X ⅜” SOCKET SET SCREW/BRASS TIP
- 000-6611-12 1” Dia. Decal SVSIID Handwheel (0-77)
- [012-1042-00] FEED HANDWHEEL-4” OD
- 012-1046-00 Chuck Bearing Feedscrew SVSIID
- 023-0306-08 Valve Slide Feednut
- 794-8693-53 Revolving Handknob
- 000-2300-57 ⅜ X 9/16 X 3/32 O-RING
