Micro Magnet
Tax excluded. Shipping calculated at checkout

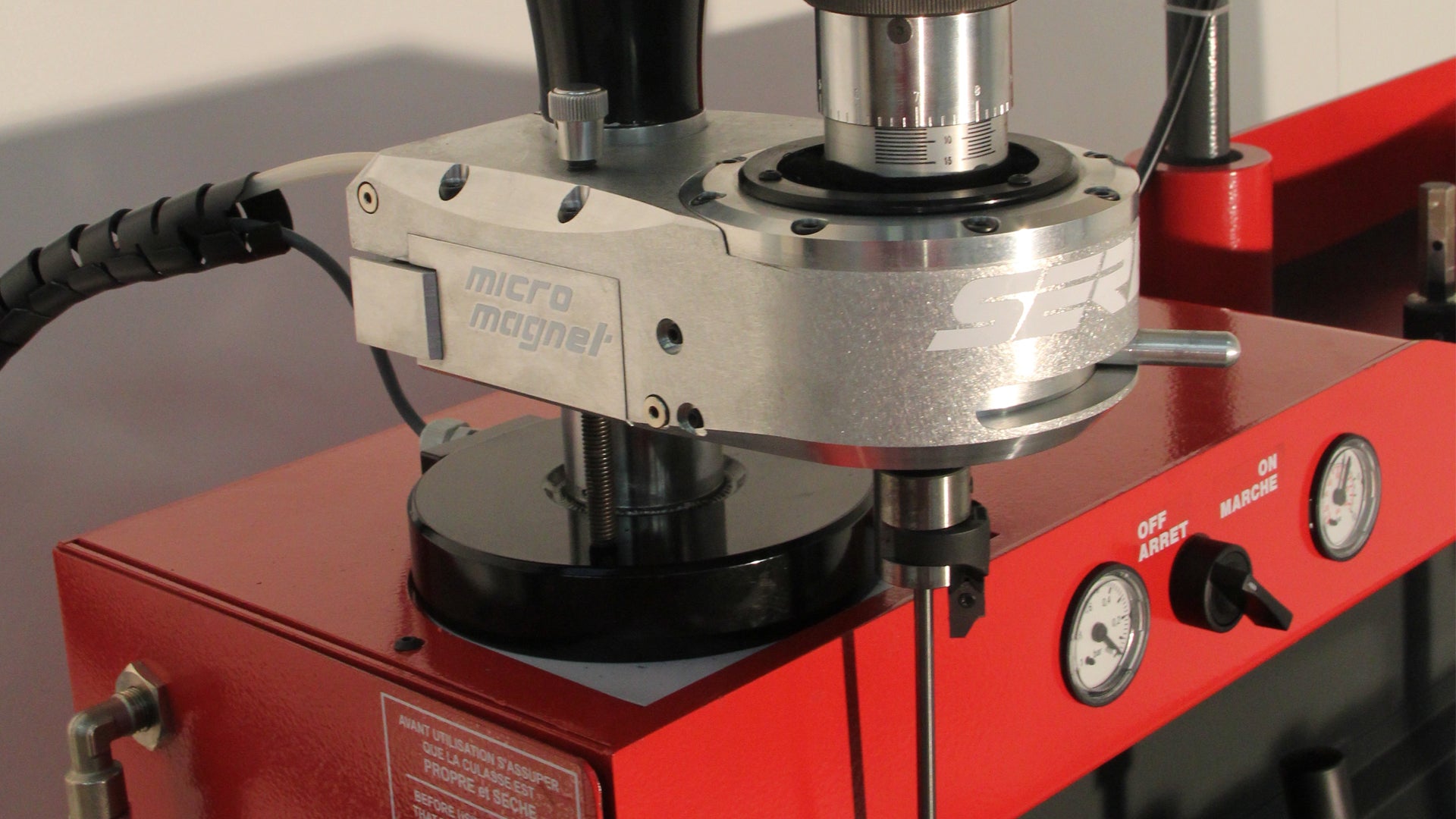

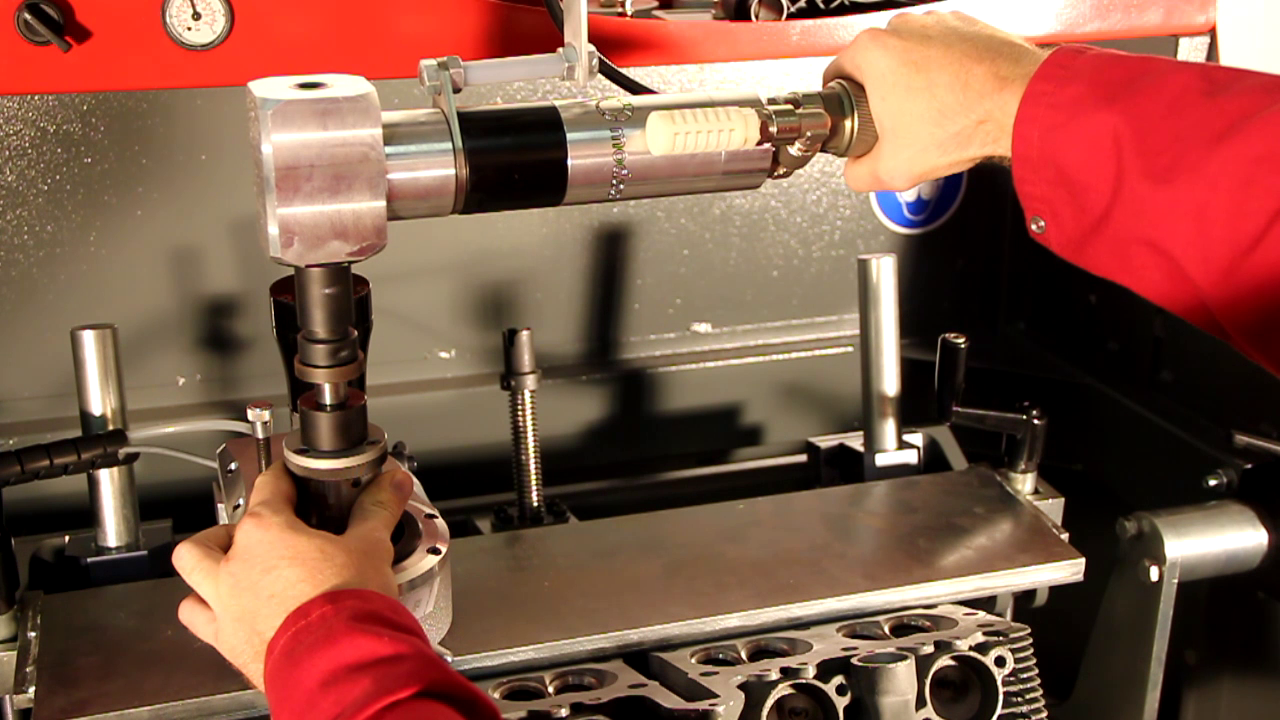

Multi-angle seat cutting unit with precision dual centering system. Ideal for low volume motorcycle and for automotive shops on small diameters.
For B2B customers, please register here for EU VAT exemption.
Micro Magnet
Sale price€0,00
CHARACTERISTICS
- User friendly ergonomic design.
- Easy tool setting, multi-angle seat machining and seat pocket counterboring.
- Uses original SERDI tooling for machining accuracy and economical upgrade to bigger equipment.
- Machining capacity from 0.63’’ /16 mm to 2’’/50 mm.
- Direct magnetic clamping on head center’s steel plate.
- Rugged and heavy construction: 15.4 lb / 7 kg) for rigidity, durability and dependability.
- Precision Vernier for consistent cutting depth control. 0.600’’/15 mm total travel, 0.0008’’/0.02 mm increments.
- 8 degrees spindle tilt accommodate canted and compound angle valves.
- Dual plane and spherical air cushions for perfect concentricity
MACHINEPARTS
TECHNICAL FEATURES
- Dimensions Length: mm / inch 253.5/10
- Width: mm / inch 135/5.3
- Height: mm/inch 208/8.2
- Weight: kg / lbs 7/15.4
- Sphere-cylinder travel (radius): mm / inch 5/0.10
- Spindle stroke: mm / inch 15/0.6
- Spindle rotation speed rpm 50 to 150
