MIRA VGX-21 incl. interchangeable formtoolholder DT-1

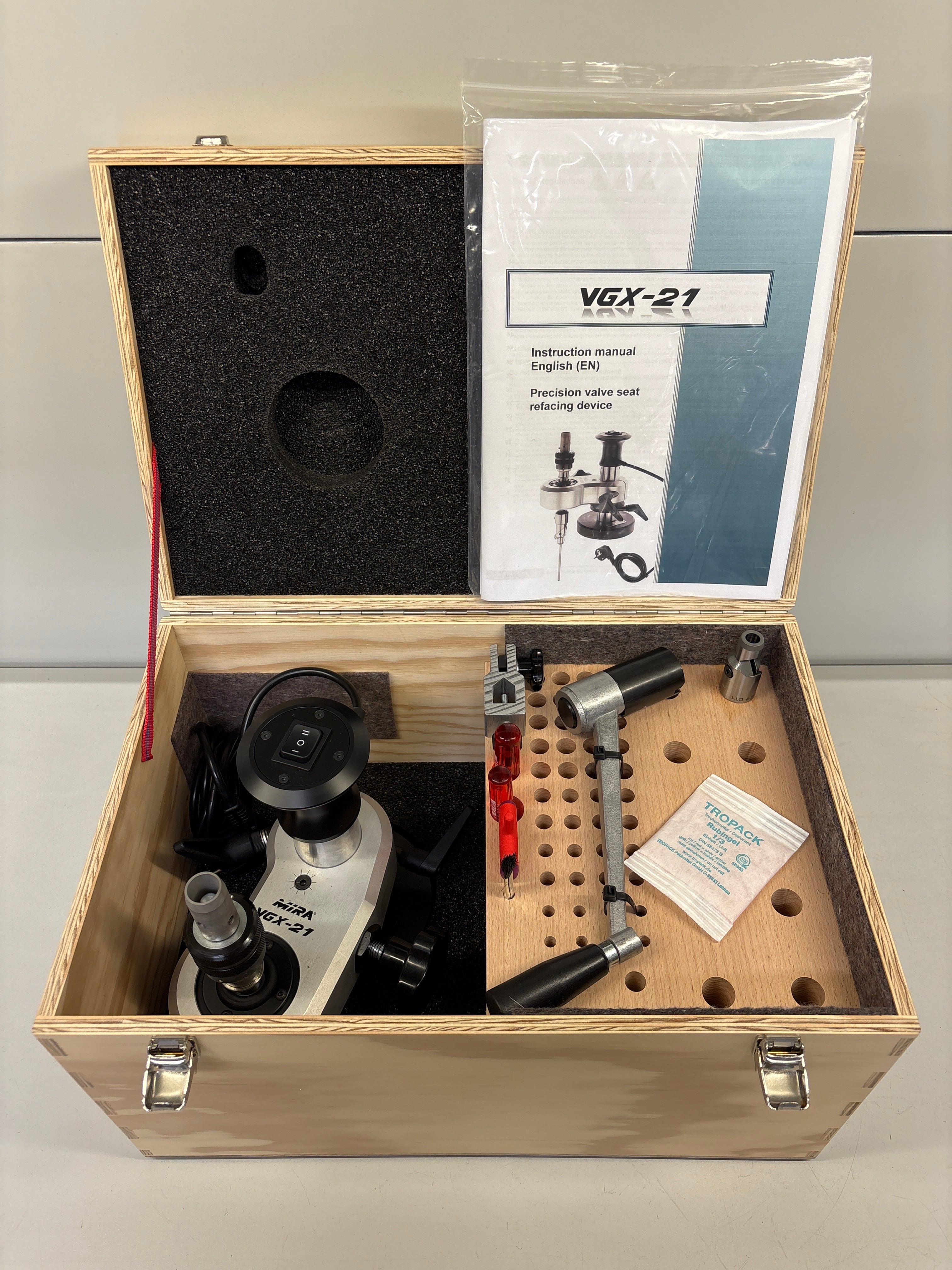

VGX-21 incl. interchangeable formtoolholder DT-1, tool adjusting gauge,.With fast changeable Toolhead System

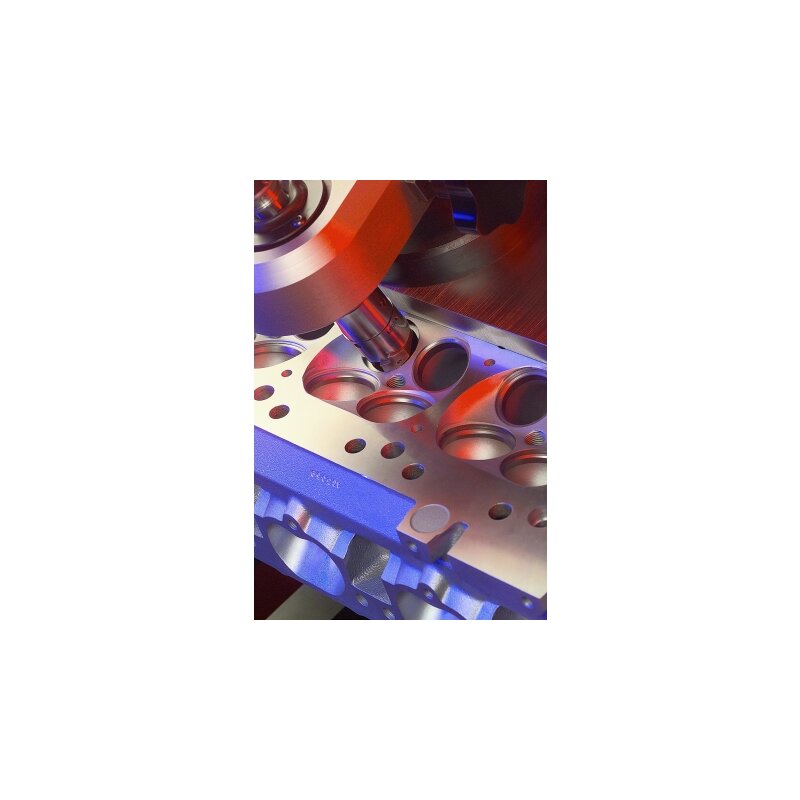

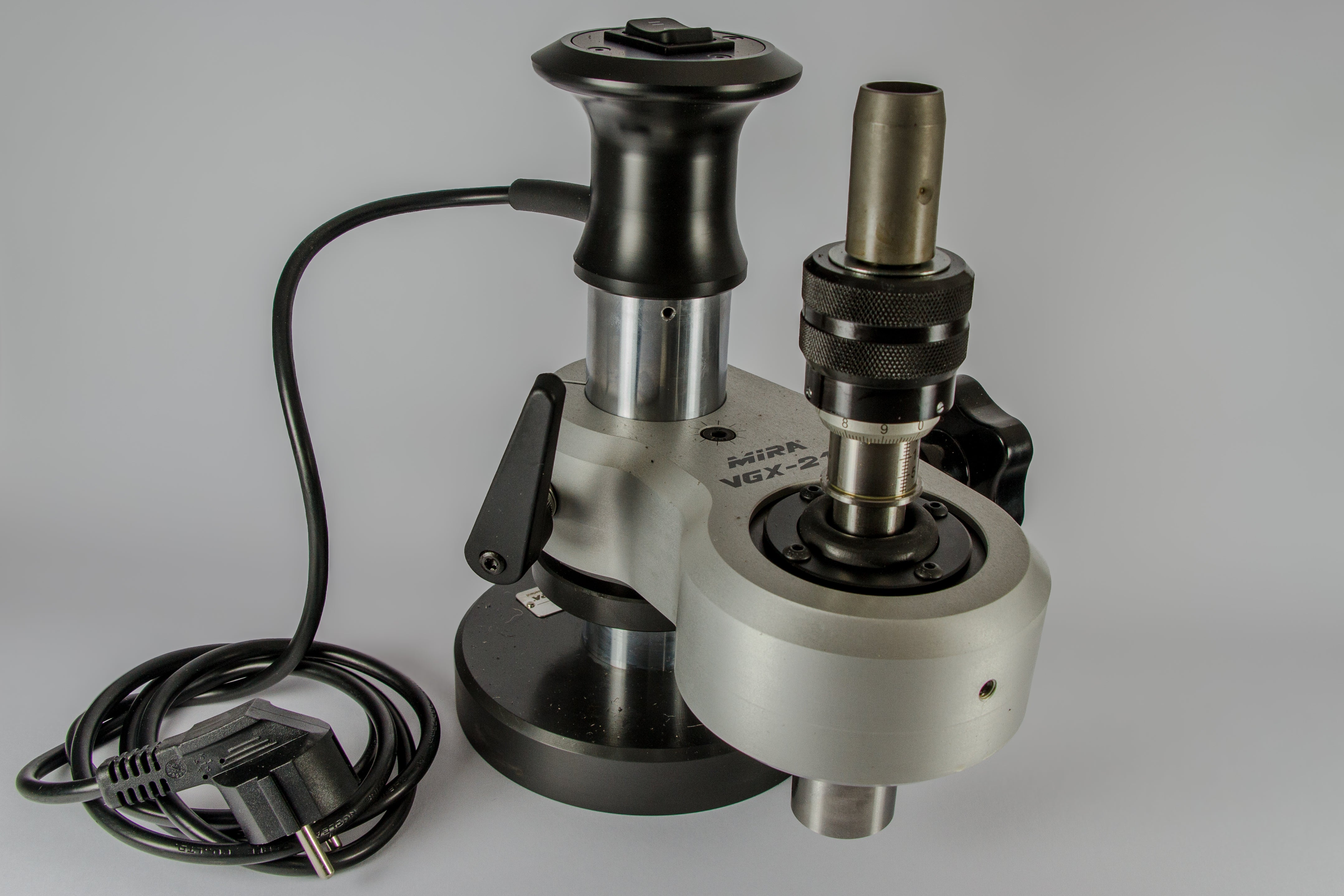

The portable VGX-21 valve seat refacing unit has been developed for the specialised petrol and diesel cylinderhead workshop. The highly accurate valve seat processing is achieved by a spherical spindle guide bearing as well as a unique hydraulic ball clamping system. A almost pressure free centering and braceless fixing of the MIRA rotary head is made possible in order to achieve precise and concentric valve seats.

Specifications

• Valve stem diameter 4 - 16mm
• Valve seat diameter 16 - 75mm
• Seat ring couterbores 21 - 75 mm

Optional Equipment

• DT05 toolhead for 16 - 25 mm seat diameters
• DT2 toolhead for 37 - 55mm seat diameters
• DT3 toolhead for 35 - 75mm seat diameters
• DSD double edged toolhead for 26 - 36mm 0° or 5°
• DSD double edged toolhead for 35 - 45mm 0° or 5°
• DSD double edged toolhead for 45 - 55mm 0° or 5°
• DSD double edged toolhead for 55 - 75mm 0° or 5°
• Adjusting Micrometer EM25 - 75
• VD-97 Vario Drive Electronic Drive unit
• MUV-95 Multivac Vacuum Test Unit
