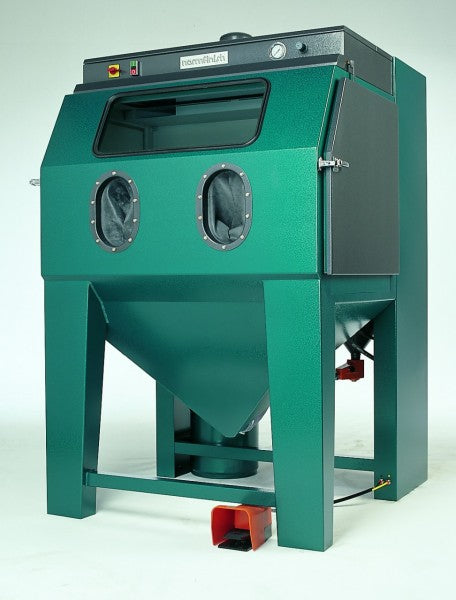

NORMFINISH Blast cabin DI 14 with 8mm nozzle

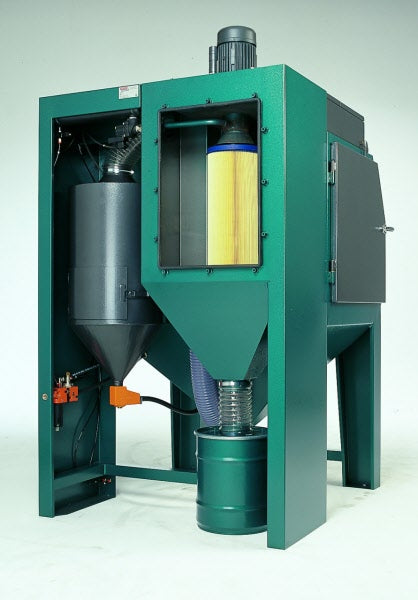

Normfinish DI cabinets are equipped with a cyclone. This guarantees that the abrasive is cleaned perfectly. This results into less wear and better visibility. Our injector blast pistol ensures, in combination with the mixing chamber, a constant optimum mix of pressurized air and abrasive. This results into effective and efficient blasting process.Extra abrasive cleaning with the cyclone separator
Suitable for all common types of abrasive
Easy to change the abrasive
Ergonomic construction
Efficient power blasting
Blasting process free of interruption
Continuous clear view due to optimal circulation of air
Cabinet without foundations, compact construction
Efficient cleaning of abrasives by cyclone
2 Pneumatic door safety switches

Useful blasting space (W x D x H)  1.370 x 890 x 810 mm
Outer dimensions (W x D x H) 1.550 x 1.380 x 2.045 mm
Working Height 810 mm
Illumination 1 x 22 W LED
Weight  480 kg
Door opening (2 pcs)  790 x 690 mm
Maximum load max. 350 kg
Filter cartridge (Bia-class M)  2 x 4 m2
Power supply 230 V / 50 Hz / 0,85 kW
Air consumption 600 - 1.000 liter/min. at 6 bar
