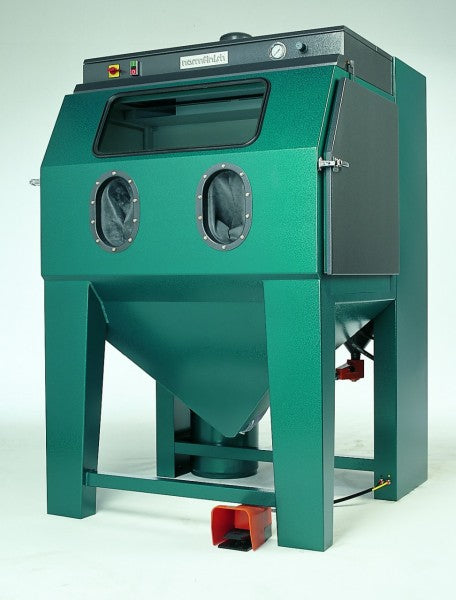

NORMFINISH Pressure Blast cabin DP 14 with 8mm nozzle

Normfinish DP cabinets are equipped with a cyclone. This guarantees that the abrasive is cleaned perfectly. This results into less wear and better visibility. Our pressure pot is equipped with a dosage cylinder which always ensures the right mix of abrasive and pressurized air. Also, the dosage cylinder controls a constant flow of an abrasive, even at the start of the blast process. This results into an effective and efficient blast process.

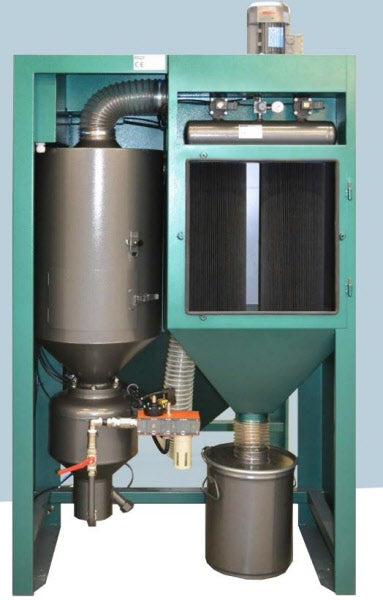

Extra abrasive cleaning by using a cyclone separator
Suitable for all common types of abrasive
Easy to change the abrasive
Ergonomic construction, no platforms or pits required
Efficient power blasting
Blasting process free of interruption
Continuous clear view due to optimal circulation of air
Cabinet without foundations, compact construction
Efficient cleaning of abrasives by cyclone
Air operated, step less adjustable, abrasive dosage valve
Useful blasting space (W x D x H): 1.370 x 1020 x 890 mm
Outer dimensions (W x D x H) 1.550 x 1.620 x 2.150 mm
Working Height 810 mm
Illumination 1 x 50 W LED
Weight 705 kg
Door opening (2 pcs) 920 x 780 mm
Maximum load max. 500 kg
Filter cartridge (Bia-class M) 3 x 4,4 m2
Power supply 3 x 400 V + N + Aarde / 50 Hz / 1,2 kW
Air consumption 3000 liter/min. at 4 bar
