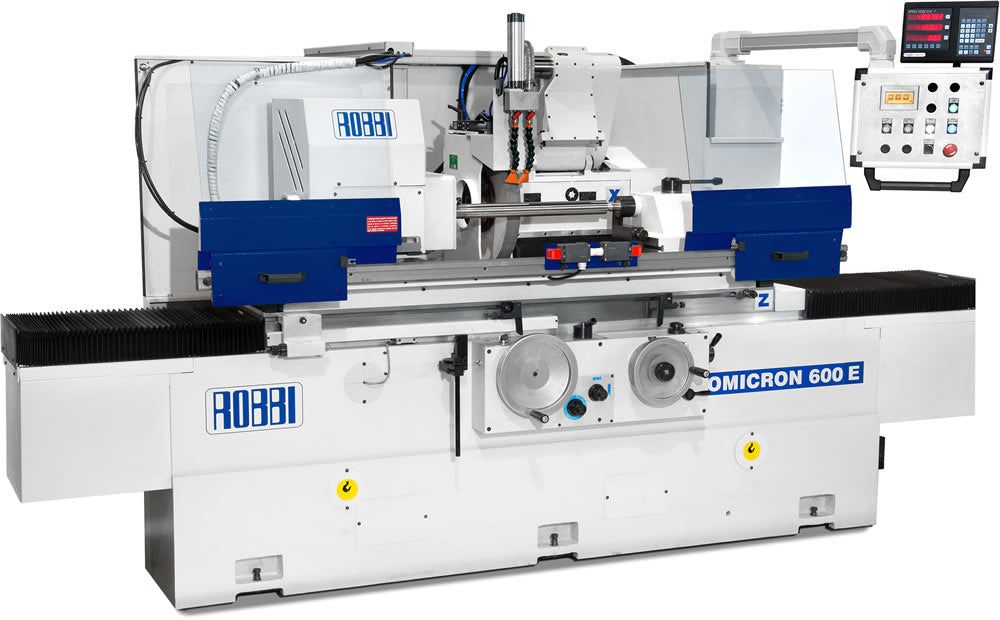

Omicron E
Robbi grinding machines are according to the international precision normes ISO 2433.
The table movement linearity is guaranteed by a max. deviation of 0,002 mm/mt.
Surface finish degree 0,2 Ra m.(**)
The obtainable grinding roundness is :
Grinding between centers 0,3 m (**)
Grinding with live spindle 0,4m (**)
(**) for a test workpiece ground in our factory during machine testing
The table movement linearity is guaranteed by a max. deviation of 0,002 mm/mt.
Surface finish degree 0,2 Ra m.(**)
The obtainable grinding roundness is :
Grinding between centers 0,3 m (**)
Grinding with live spindle 0,4m (**)
(**) for a test workpiece ground in our factory during machine testing
For B2B customers, please register here for EU VAT exemption.
Omicron E
Sale price€0,00
CHARACTERISTICS
- High standards of precision
- Flexibility
- Fast set-up times
- Ideal for processing components with very tight tolerances
- Sturdiness and Stability: Machine bed in normalised cast iron; Grinding wheel spindle mounted on solid bronze bushes
MACHINEPARTS
|
E600 |
E1000 |
E1500 |
||
|
Max distance between centers |
mm |
630 |
1030 |
1530 |
|
Max grinding length |
mm |
630 |
1030 |
1530 |
|
Max table swivel on either side |
degrees |
+9° |
+8° |
+7° |
|
-5° |
-4° |
-3° |
||
|
Technical specifications |
Options | ||
|
Height of centers over table |
mm |
180 |
230 |
|
Max weight on centers |
kg |
250 |
300 |
|
Max cantilever weight (150 mm from Workhead spindle nose) |
kg |
80 |
100 |
