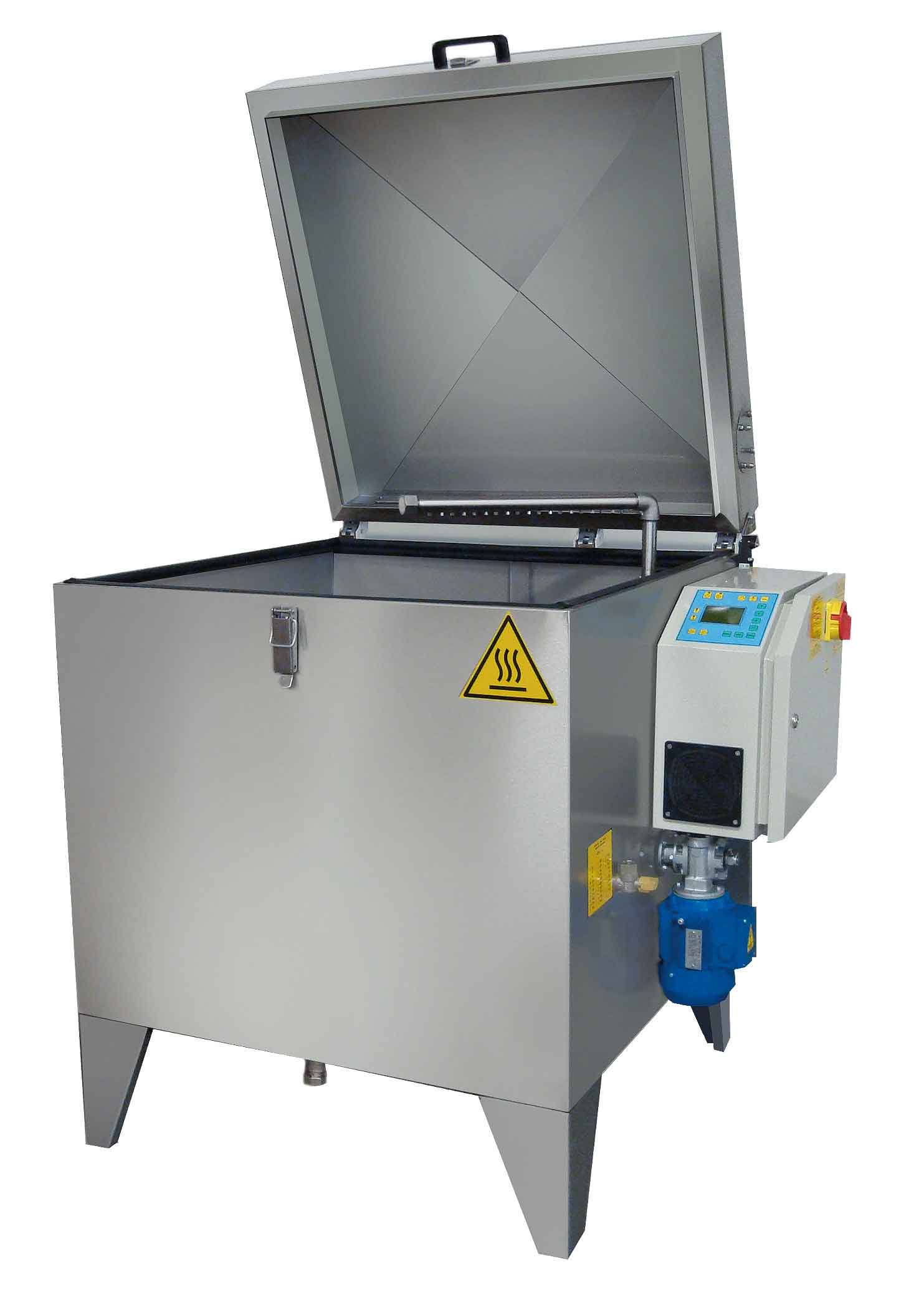

TOPLOADED CLEANING MACHINE
P is a system for automatic washing of mechanical parts. The washing is carried out by the action of upper, lower and side jets. Basket rotates through a gear motor. The board is electromechanical. Operators can set the tank liquid temperature as well as the length of the treatment cycle.
P is a system for automatic washing of mechanical parts. The washing is carried out by the action of upper, lower and side jets. Basket rotates through a gear motor. The board is electromechanical. Operators can set the tank liquid temperature as well as the length of the treatment cycle.
For B2B customers, please register here for EU VAT exemption.
P80
Sale price€4.128,10
CHARACTERISTICS
- Electromechanical control board
- Mechanical rotation of the basket by a gear motor
- Reinforced basket in electrowelded net with external edge of galvanized steel
- Tank minimum level control for the protection of pump and resistor
- Electric pump in stainless steel AISI 304 with special Gaskets
- Filter in stainless steel AISI 304 on the pump suction
- Tank edge Gasket
- Electrical box of painted metal
- Safety limit switch on the cover opening
- Structure and plates in stainless steel
MACHINEPARTS
TECHNICAL DATA
- Closed machine overall dimensions (L x P x H) 112 x 100 x 110 cm
- Opened machine overall dimensions (L x P x H) 112 x 105 x 185 cm
- Washing capacity ( Ø x H ) 78 x 43 cm
- Basket load capacity 100 Kg
- Tank capacity 130 lt Washing pump 0,55 kW 2,5 bar 120 lt/min
- Washing heating 4,0 kW
- Mechanical rotation 0,09 kW
- Disc oil separator 30
- Supply: aria comp. 6 bar
- Tank drain outlet: F 1” Gas
- Oil separator drain outlet: M 1/2” Gas
- Steam drain outlet Ø: 0 50 mm
