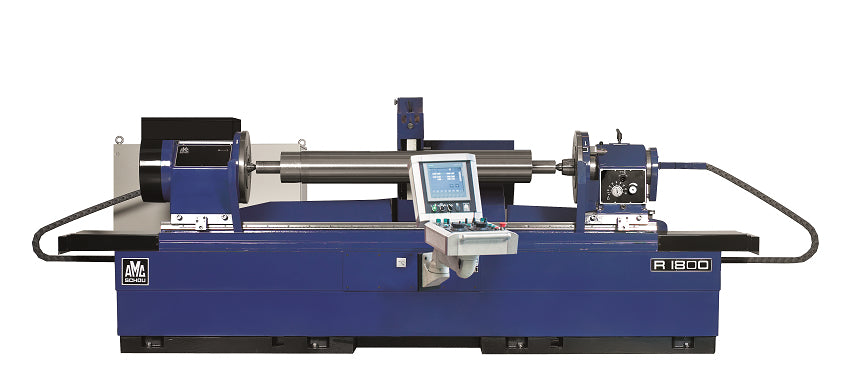

R-1800 Precision Cylindrical Grinding Machine PLC Controles

SPECIFICATIONS:

Maximum workpiece length:

1800 mm

(70,8”)

Maximum workpiece diameter:

680 mm

(26,7")

Maximum grinding diameter:

610 mm

(24”)

Maximum workpiece weight between centers:

800 kg

(1764 lbs)

Maximum workpiece weight between chucks:

2000 kg

(4409 lbs)

Power supply:

3 x 400 V,

50 cycles + 0 cable

Colour:

Blue RAL 5013

Graduation:

mm or inch

BED

One piece cast iron

Alignment by means of a number of adjusting screws

Guideways protected by telescopic guards

TABLE

Surface with 10° inclination

Guideways with antifriction coating

Rack and pinion gear for head- and tailstock movement

Movements performed by means of SKF 50 mm (1.97”) ball screw with pre-loaded ball nut.

Movement performed by means of a SIEMENS 1FL6+V90PN servomotor 2,5 kW (11.9 NM)

Speed 5 to 4000 mm/min. (0.2”-197”)

Guide ways lubrication with lubricate rollers and oil pocket fed from an oil pump

HEADSTOCK

Rigid spindle with Ø 170 mm (6.7”) SKF NN-double row bearing

Movement performed by means of a SIEMENS 1FL6+V90PN servo motor 7,0 kW (33.4 NM),

range 5 - 500 RPM.

Hub prepared for fitting chuck.

Morse Taper No. 6 hole in the spindle for centers.

TAILSTOCK

Rotating spindle with Ø 170 mm (6.7”) SKF NN double row bearing

Hub prepared for fitting chuck

70 mm (2.7”) hydraulically operated quill, adjustable centre pressure

Side adjustment ±2 mm, controlled by a 40 mm (1.57”) dial gauge

Locking pin for non-rotation of spindle for working with centres

Morse Taper No. 6 hole in the spindle for dead or live centres

WHEELSLIDE

Guideways with antifriction coating

Guideways lubrication fed from a pump

Movement performed by means of 40 mm (1.57”) SKF ball screw with pre-loaded ball nut

with SIEMENS servo motor drive 1FK7+S120 3,3 kW 10.5 NM.

Speed 5 to 3000 mm/min. (0.2”-118”)

GRINDING WHEEL HEAD

Hardened spindle runs in the grinding wheel end in a tapered adjustable and hand scraped

sleeved bronze bearing of heavy duty design

At pulley end pre-loaded high precision angle contact bearings are used

The grinding spindle is driven by a 15 kW (20 HP) AC-motor with vaiabel speed, max. 1,000 rpm.

GRINDING WHEEL GUARD

Grinding wheel guard for protection of the 813 mm (32") grinding wheel

with a max. width of 80 mm (3.15”)

GRINDING WHEEL HUB

A grinding wheel hub 12" (305 mm) dia. with clamping width 50 - 80 mm (1.96” - 3.15”)

3 pcs. adjustable balancing arbors

Rapid wheel change system

CONTROL

The machine has a CPU1511 for control, X, Z and C-axes

AMC operator panel with SIMATIC HMI Touch operated 9” TFT colour display

The machine can be used in manual mode, and also have a semi auto function where it is possible

put in some parameter.

There is two different way:

Manuel infeed.

There must be set 4 parameter from the screen:

a. Position z-axis right side

b. Position z-axis left side

c. The speed mm./min. the z-axis should move.

d. Number of seconds that must dwell in the ends (Example 10)

Automatic infeed:

There must be set 15 parameter from the screen:

a. Position z-axis right side

b. Position z-axis left side

c. Start diameter (example 142.512)

d. Final diameter (example 142.000)

e. Grinding rough (how much should be grind per time in diameter, example 0.060)

f. Grinding fine (how much should be grind per time in diameter, example 0.003)

g. Number of fine cut (Example 5)

h. Number spark out (Example 2)

i. Speed workpiece rough grinding

j. Speed workpiece fine grinding

k. Speed workpiece spark out

l. Z-axis speed rough grinding

m. Z-axis speed fine grinding

n. Z-axis speed spark out

o. Number of seconds that must dwell in the ends (Example 10)

Detached relay box

Cabinet for power supply 400 volts 3 phase, 50 cycles

24 volt DC for control of circuits

Plug-in relays with thermal overload protection

Built-in ventilation for cooling of electrical equipment

TOOLS

1 grinding wheel balancing arbor

1 puller for change of grinding wheel

1 set of tools, spanners.

1 lifting hook for grinding wheels

LITERATURE

1 Operating manual with spare part section

1 Packing list
