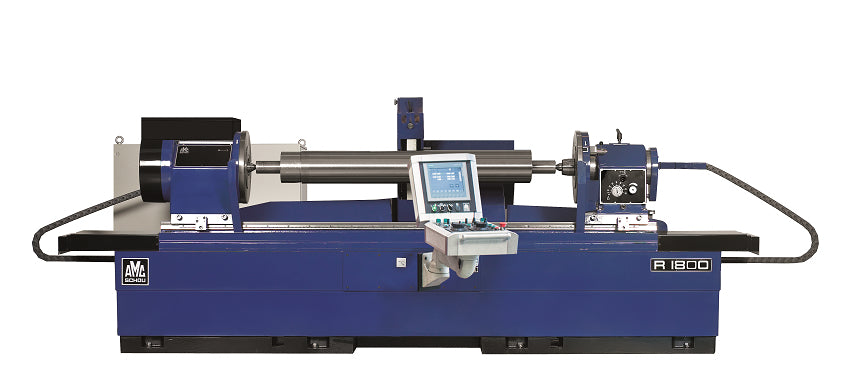

R-5000MD Precision Cylindrical Grinding Machine PLC Controles

SPECIFICATIONS:

Maximum workpiece length:

5100 mm

(201")

Maximum workpiece diameter:

1200 mm

(47")

Maximum grinding diameter:

1200 mm

(47")

Maximum workpiece weigh

5000 kg

(11000 lbs)

Power supply:

3 x 400 V,

50 cycles + 0 cable

Colour:

Blue RAL 5013

Graduation:

mm or inch

BED

Cast iron

Alignment by means of a number of adjusting screws

No pressure lubrication rolling system with automatic filling of oil pockets

Guide ways protected by telescopic guards

Electrical indicator for low oil level and inspection window on tank for used oil

TABLE

Cast iron

Surface with 10° inclination

Guide ways with antifriction coating

Rack and pinion gear for head- and tailstock movement

Movement performed by means ball screw with pre-loaded ball nuts with servomotor drive

for SIEMENS digital converter system

Speed 1 to 3000 mm/min. (0.004 - 118 inch/min)

HEADSTOCK

Movement performed by means of a Siemens main spindle servo motor

for Simodrive digital converter system, range 1-140 r.p.m.

Hub prepared for fitting chucks

Morse taper

TAILSTOCK

Rotating or stationary spindle

Hub prepared for fitting chucks

Hydraulically operated quill traverse, adjustable centre pressure

Locking pin for non-rotation of spindle for working with centres

Morse Taper No. 6 hole in the spindle for dead or live centres

WHEELSLIDE

Guide ways with antifriction coating

No pressure lubrication rolling system with automatic filling of oil pockets

Movement performed by means of a ball screw with pre-loaded ball nuts with servomotor drive for

Simodrive digital converter system

Speed 5 to 2000 mm/min. (0.2”-79”)

Linear transducer for X-positioning secured against dust by overpressure

GRINDING WHEEL HEAD

Hardened spindle runs in the grinding wheel end in a tapered adjustable and hand scraped

sleeved bronze bearing of heavy-duty design

At pulley end pre-loaded high precision angle contact bearings are used

The grinding spindle is driven by AC motor

GRINDING WHEEL GUARD

Grinding wheel guard for protection of the maximum size grinding wheel Ø1200 mm with a max.

with a max. width of 70 mm (2.75”)

GRINDING WHEEL HUB

A grinding wheel hub 12" (305 mm) dia. with clamping width 25 – 70 mm

3 pcs. adjustable balancing arbours

Rapid wheel change system

CONTROL

The machine has a CPU1511 for control, X, Z and C-axes

AMC operator panel with SIMATIC HMI Touch operated 9” TFT colour display

The machine can be used in manual mode, and also have a semi auto function where it is possible

put in some parameter.

There is two different way:

Manuel infeed.

There must be set 4 parameter from the screen:

a. Position z-axis right side

b. Position z-axis left side

c. The speed mm./min. the z-axis should move.

d. Number of seconds that must dwell in the ends (Example 10)

Automatic infeed:

There must be set 15 parameter from the screen:

a. Position z-axis right side

b. Position z-axis left side

c. Start diameter (example 142.512)

d. Final diameter (example 142.000)

e. Grinding rough (how much should be grind per time in diameter, example 0.060)

f. Grinding fine (how much should be grind per time in diameter, example 0.003)

g. Number of fine cut (Example 5)

h. Number spark out (Example 2)

i. Speed workpiece rough grinding

j. Speed workpiece fine grinding

k. Speed workpiece spark out

l. Z-axis speed rough grinding

m. Z-axis speed fine grinding

n. Z-axis speed spark out

o. Number of seconds that must dwell in the ends (Example 10)

ELECTRICAL SYSTEM

Detached relay box

Cabinet for power supply 400 volts 3 phase, 50 cycles

24 volt DC for control of circuits

Plug-in relays with thermal overload protection

Built-in ventilation for cooling of electrical equipment

TOOLS

1 grinding wheel balancing arbor

1 puller for change of grinding wheel

1 set of tools, spanners.

1 lifting hook for grinding wheels

LITERATURE

1 Operating manual with spare part section

1 Packing list
