COMEC PV0535 Dual Axis Manual leveling table

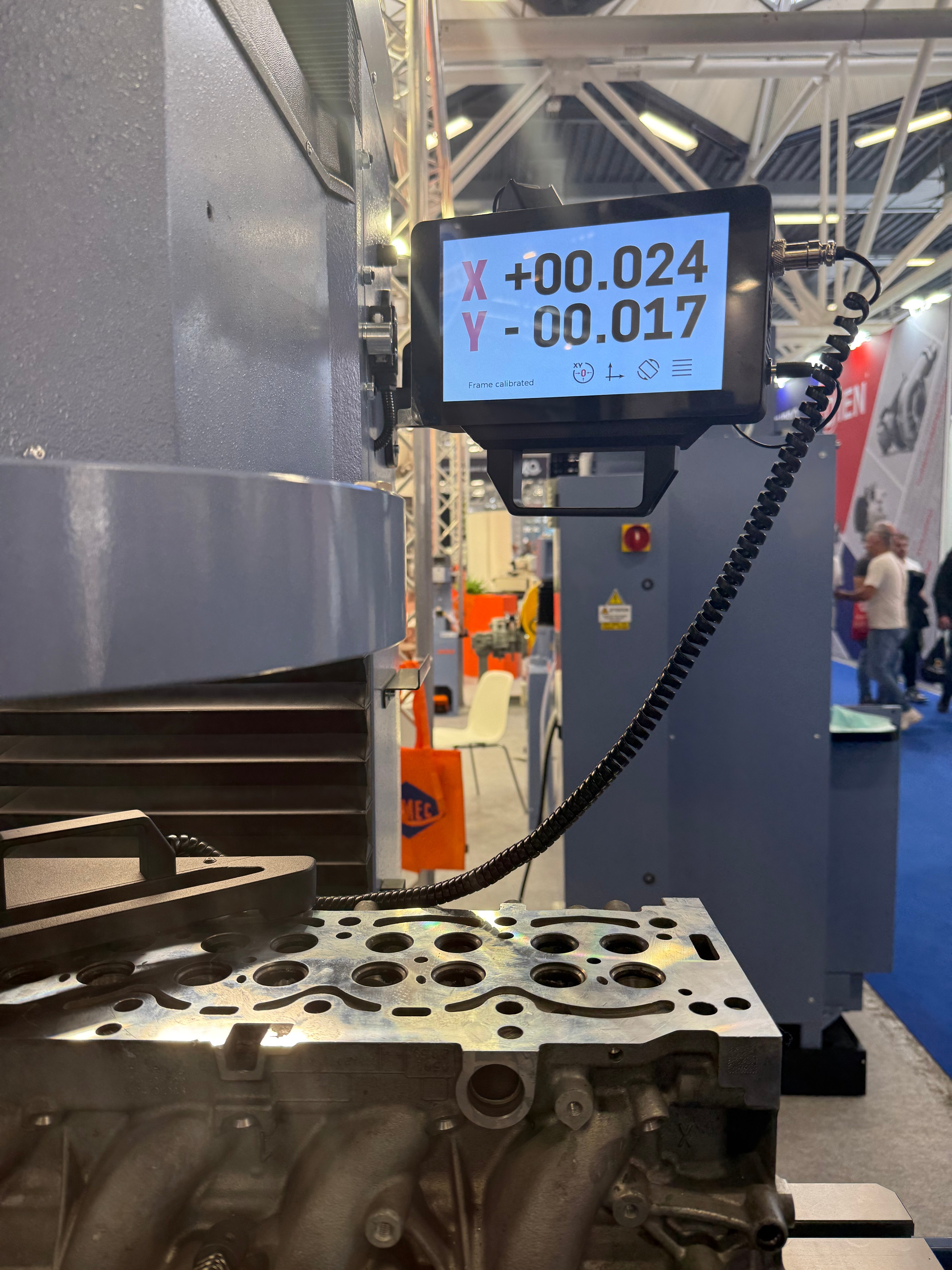

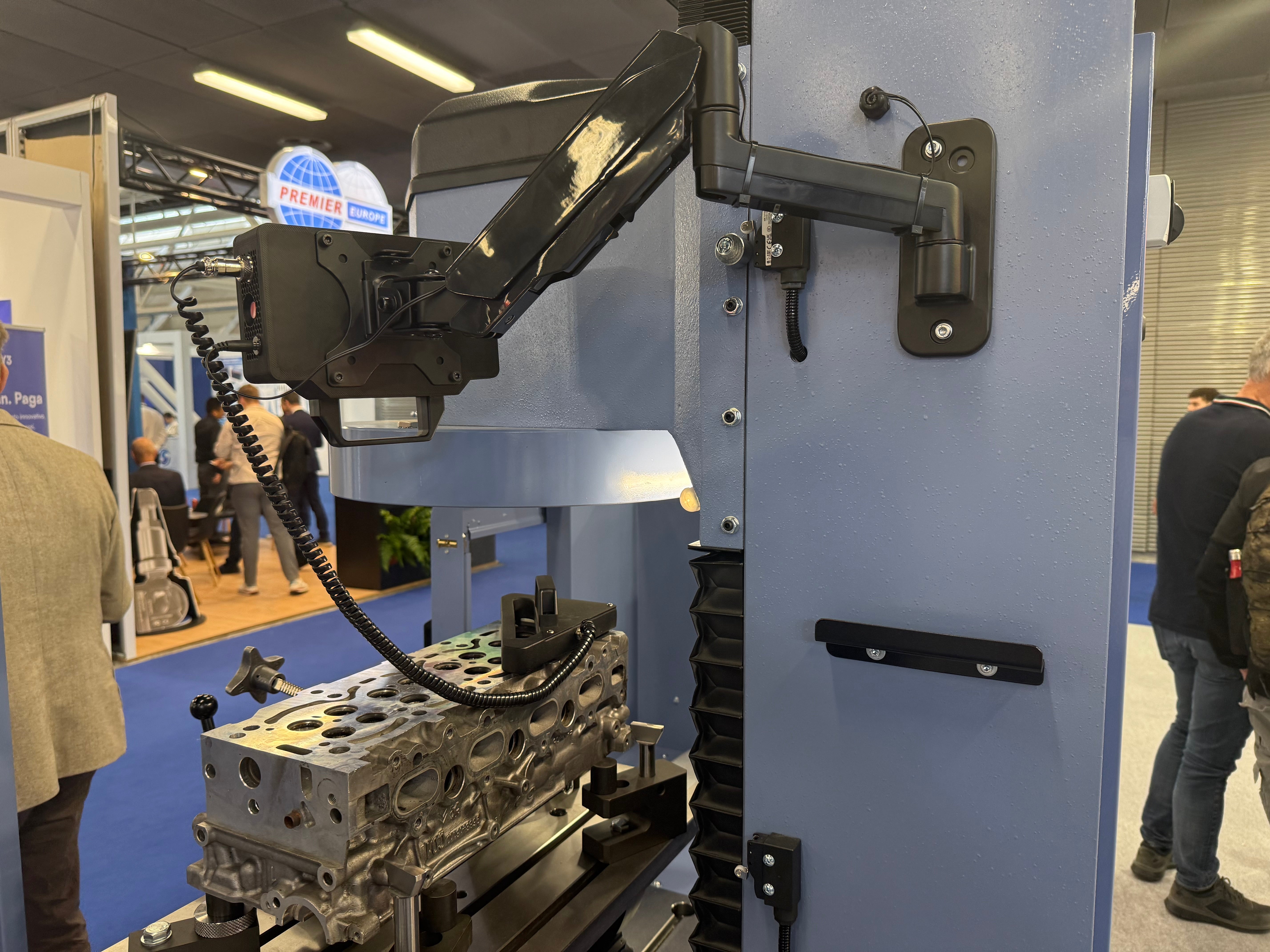

COMEC leveling table with electric level.

The PV0535 leveling table is a piece of equipment designed and built to be used on COMEC leveling machines for machining cylinder heads and engine blocks.

Comec’s solution for accommodating a wide range of cylinder heads and engine blocks

New PV0535 Manual leveling table, is compatible with the majority of surfacing machines:

·         RP1000 Head and block resurfacer

·         RP1000-CNC CNC Head and block resurfacer

·         RP1300 Head and block resurfacer

·         RP1400 CNC Head and block resurfacer

·         ACF170 Cylinder boring-resurfacing machine

·         ACF200 Cylinder boring-resurfacing machine

·         ACF200-CNC CNC cylinder boring - resurfacing machines

Once the head is fixed on the table, it can be tilted according to your needs, in order to then proceed with the work.

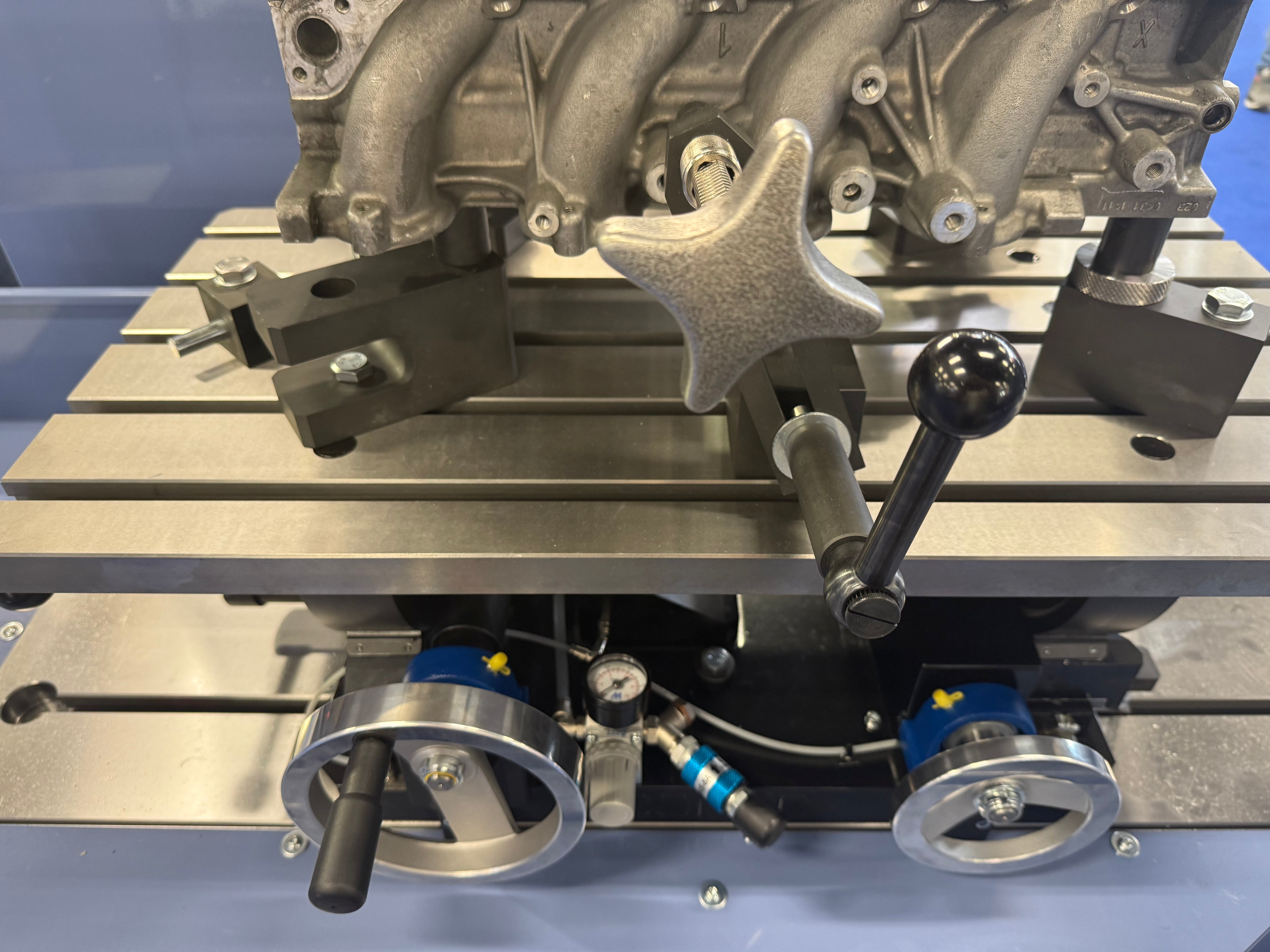

The PV0535 Manual leveling table streamlines the clamping process, enabling swift adjustment in both directions by rotating the two handwheels - delivering a fast, firm and accurate result.

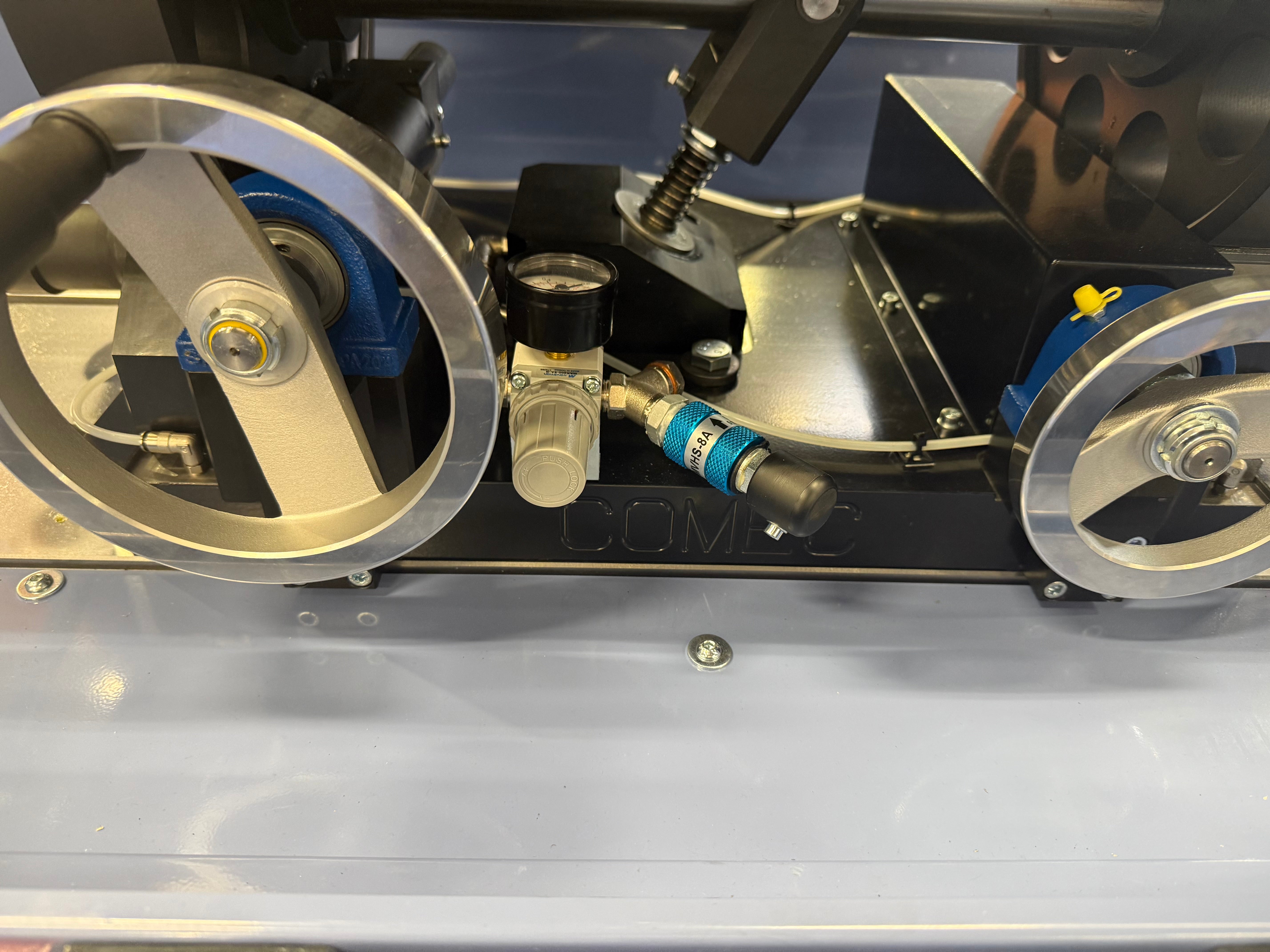

The Air cushion feature, connected to the compressed air system, with a pressure of at least 6 bar, permits effortless a smooth and light displacement of PV05353 Precision leveling table.
By opening the air flow, the air cushion generated underneath the fixture base allows to floats the PV0535 away from the machine table, in order to be repositioned accordingly for the surfacing process.

With PV0535 levelling table, any workpiece can be clamped and leveled within seconds.

Standard equipment

·         Rear dowels for centring the table on the bench

·         Head locking cones

·         Front dowels for locking the table on the bench

·         Central screw for locking the table on the bench

·         Block with lateral stop rod for the head

·         Short cones for stopping the head

·         Short front clamping lever

·         Adjustable head support

·         Front clamping block with long lever

·         Fixed head supports with long cones

·         Fixed head support

·         Plugs for closing the central hole (Iis a spare)

·         19 mm fixed wrench

·         6 mm and 4 mm Allen wrench

·         Digital level

Specifications
