- Electric installation 24 V
- Hydraulic installation
- Cooling installation with tank
- Two self centering chucks
- Pair of additional counter weights
- Grinding wheel with pair of wheel hubs
- Narrow steady rest
- Wheel periphery and side truing attachment with diamond
- Eccentricity control device with dial gauge
- Truing fixture for checking concentricity with dial gauge
- V-square for centering of crankpins with dial gauge
- Wheel balancing mandrel
- Motor drive pulley for reduced wheel diameter
- Grinding wheel stripper
- Set of steel splash guards
- Service spanners
- Operating manual
- Set of steel splash guards
- Service spanners
- Operating manual

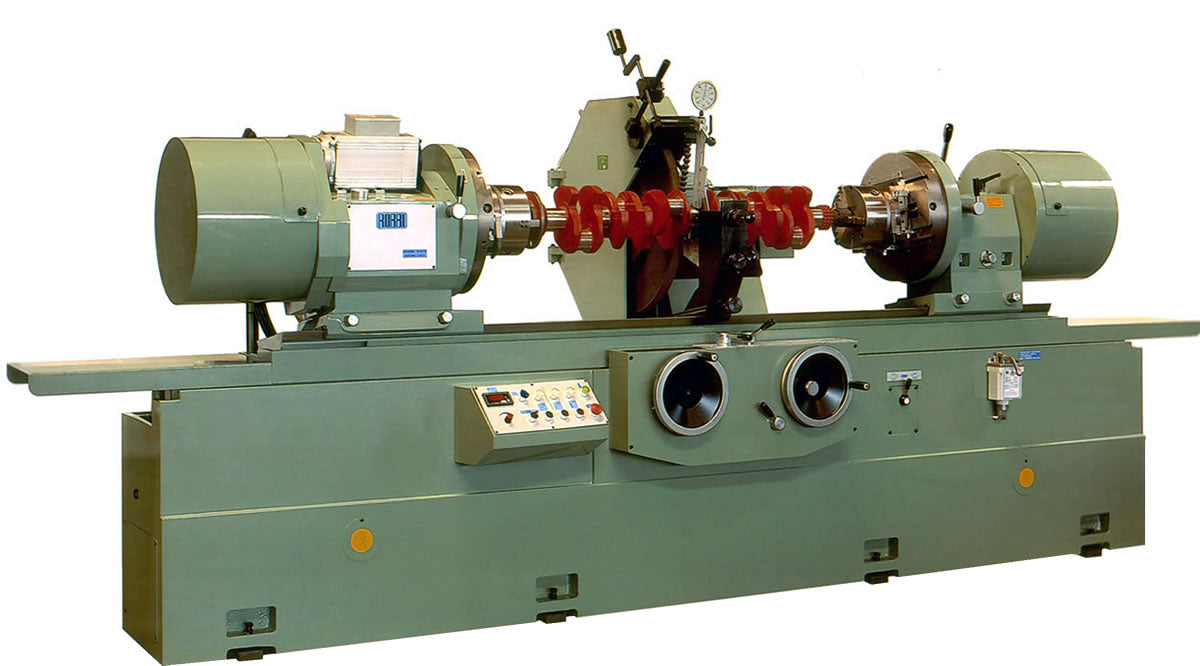

REX 1800
Tax excluded. Shipping calculated at checkout
REX Crankshaft Grinders are designed to utilize the most accurate and efficient crankshaft setup system available.
REX Crankshaft Grinders use work heads with 4-way cross slides with an advanced locking system which permits quick centering of the crankshaft.
Heavy duty one piece cast iron construction assures you a lifetime of superior accuracy and dependability.
Whatever your crank grinding needs, REX has a model designed to do the job that your customers demand at a price that you can afford.
REX Crankshaft Grinders use work heads with 4-way cross slides with an advanced locking system which permits quick centering of the crankshaft.
Heavy duty one piece cast iron construction assures you a lifetime of superior accuracy and dependability.
Whatever your crank grinding needs, REX has a model designed to do the job that your customers demand at a price that you can afford.
For B2B customers, please register here for EU VAT exemption.
REX 1800
Sale price€0,00
CHARACTERISTICS
Standard Equipment
MACHINEPARTS
Technical Specifications
- Distance between centers: mm 1800
- Distance between chucks: mm 1750
- Height of centers over table: mm 300
- Swing over table: mm 600
- Offset of centers: mm 125
- Grinding diameter: mm 180
- Fast hydraulic wheelhead traverse: mm 130
- Hand micrometric wheelhead feed: mm 170
- Hand micrometric wheelhead feed graduation: mm 0,005
- Whellhead feed per reverse: mm 1
- Hand micrometric worktable traverse per reverse: mm 8
- Fast hydraulic worktable traverse: m/ min 3
- Grinding wheel speeds: rpm 850-940
- Grinding wheel diameter: mm 760
- Width of grinding wheel (min – max): mm 19-50
- Diameter of chucks: mm 200
- Chucks holding diameter: mm 250
- Rest capacity: mm. 30 -120
- Workhead spindle speeds: r.p.m. 0 – 60
- Max. weight on centers: Kg. 350
- Max. weight on rests: Kg. 800
- Lenght x width x height: m. 4.5 x 1.65 x 1.7
- Approx. net weight: Kg. 4600
