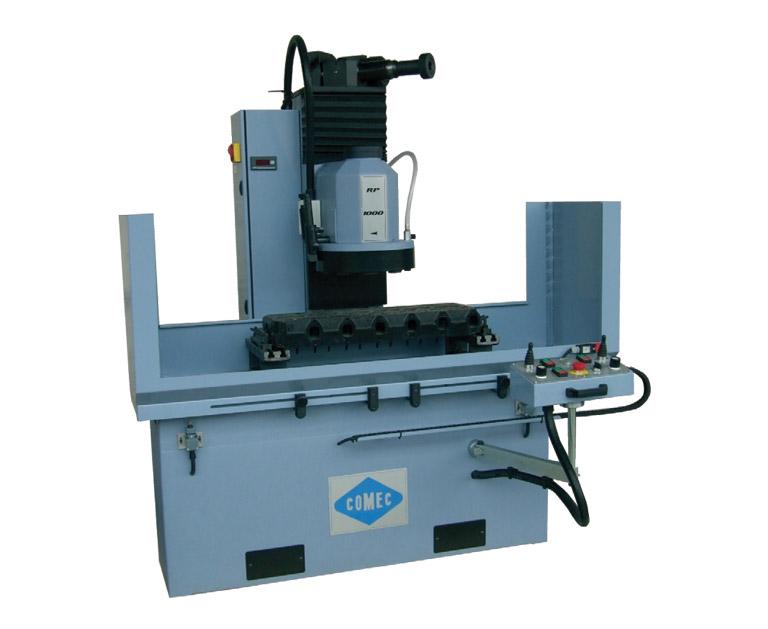

COMEC RP1000M Cylinder Head and Block Resurfacer

Technical Specifications

Table travel: 1,050–1,070 mm

Max workpiece length: 895 mm

Max workpiece width: 315–355 mm

Workpiece height (min–max): 125–545 mm

Effective table size: approx. 920 × 210 mm

Segmented grinding wheel diameter: 355 mm (14″)

Variable spindle speed: 300–1,500 rpm

Table feed speed: 0–1,500 mm/min

Main motor power: 4.0 kW (2.2 kW on M version)

Table motor power: 0.55–0.75 kW

Rapid head feed motor: 0.18 kW

Coolant pump power: 0.10 kW

Overall dimensions (L×W×H): approx. 1,680 × 1,140–1,300 × 1,850 mm

Net weight: approx. 1,015 kg

Standard Equipment (RP1000M version)

Variable spindle speed with digital readout

Variable table feed

Ball screw-driven table movement

Motorized rapid head movement

Manual, continuous, and automatic working modes

Pivoting control panel

Transparent polycarbonate safety guard

Pair of parallel supports with clamps

Coolant system with tank and drain

Diamond wheel dresser

Supplied with grinding segment set or CBN/PCD tool and holder (depending on M or standard version)
