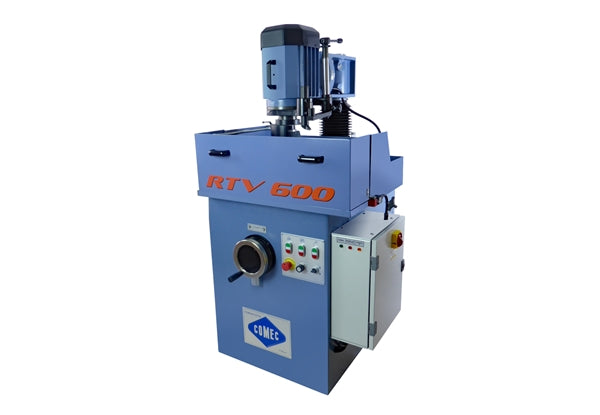

COMEC RTV600 Flywheel and Clutch Pressure Plate Grinder
Tax excluded. Shipping calculated at checkout
The grinding machine RTV600 represents the best and most advanced solution in terms of reconditioning of flywheels, clutch friction plates and pressure plates in industrial vehicles. RTV600 it is also suitable for fine grinding of any other circular piece like discs, rings or flanges.

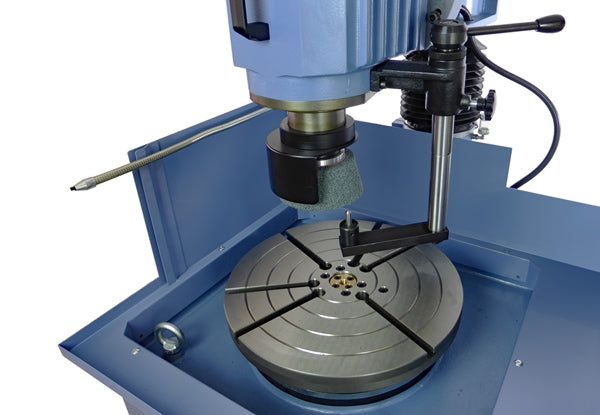

The flywheel surface grinder offers a high rigidity torsion, thanks to the use of cast iron for the base. The rotary table lies on a surface constantly lubricated with oil that helps in reducing the friction and preserving the machine at the same time and it can also be supplied with a magnetic plate.
The 4 kW motor grants a sufficient power to work any kind of material with high depths of cutting. For all these reasons the RTV600 meets the requirements of the most demanding mechanincs.
Consult the brochure, watch the video and contact us for any other inquiry.
- Head power feed
- Splash and safety guard
- Cooling plant complete with pump and settling tank
- Grinding wheel dresser
- Wheel dressing diamond
- Cup grinding wheel for cast iron
- Set of centering cones
- Set of supporting rings
- Dial gauge with support
- Blocking screws
- Lubricant for slides
- Emulsifiable oil
- Wrench set
- Instruction manual
Maximum grinding diameter |
630 mm |
Rotary table diameter |
450 mm |
Max distance table-wheel |
220 mm |
Taper grinding wheel diameter |
150 mm |
Grinding wheel speed |
2800 rpm |
Rotary table speed |
5÷30 rpm |
Head motor power (RTV612) |
4 kW (9 kW) |
Table motor power |
0,55 kW |
Rapid feed head motor power |
0,18 kW |
Dimensions (LxWxH) |
1200x900x1600 mm |
Weight |
710 Kg |
For B2B customers, please register here for EU VAT exemption.

CHARACTERISTICS
- Head power feed
- Splash and safety guard
- Cooling plant complete with pump and settling tank
- Grinding wheel dresser
- Wheel dressing diamond
- Cup grinding wheel for cast iron
- Set of centering cones
- Set of supporting rings
- Dial gauge with support
- Blocking screws
- Lubricant for slides
- Emulsifiable oil
- Wrench set
- Instruction manual
MACHINEPARTS
- Maximum grinding diameter: 630 mm
- Rotary table diameter: 450 mm
- Maximum distance between table and wheel: 220 mm
- Taper grinding wheel diameter: 150 mm
- Grinding wheel speed: 2800 rpm
- Rotary table speed: 5÷30 rpm
- Head motor power: 4 kW
- Table motor power: 0,55 kW
- Rapid feed head motor power: 0,18 kW
- Dimensions (LxWxH): 1200x900x1600 mm
- Weight: 710 Kg
