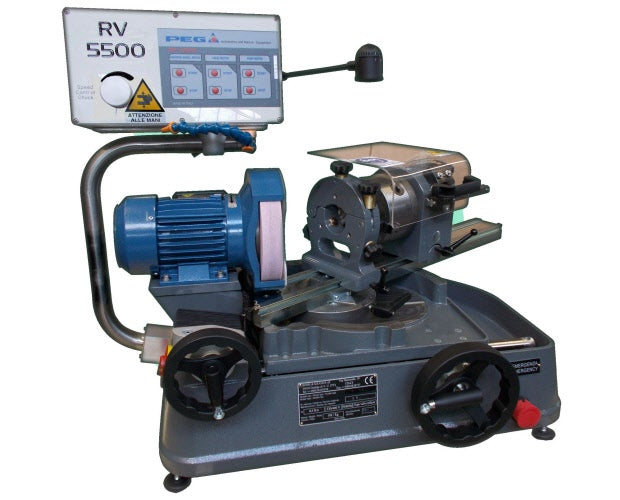

RV 5500
Tax excluded. Shipping calculated at checkout
The RV55000 valve refacer marks a new phase in valve refacing. It`s operation brings very accurate results and is extremely easy. The peculiar valve locking system can be applied on bigger motors, for example: big ships
For B2B customers, please register here for EU VAT exemption.
RV 5500
Sale price€0,00
MACHINEPARTS
- Max valve stem diameter: 40 mm
- Minimum valve head diameter at 45° with steady rest: 15 mm
- Maximum diameter valve head 45°: 200 mm
- Maximum diameter valve head 30°: 200 mm
- Grinding wheel motor stroke: 95 mm
- Graduate quadrant stroke: 150 mm
- Minimum length of valve with steady rest 45°: 180 mm
- Minimum length of valve without steady rest 45° (Valve head diameter 30 mm): 95 mm
- Minimum length of valve with steady rest 30°: 230 mm
- Minimum length of valve without steady rest 30° (Valve head diameter 45 mm): 120 mm
- Grinding angle: 20° - 60°
- Overall valve length: ---------
- Grinding wheel size: 175 x 30 mm
- Grinding wheel speed: 2800 g/m (rpm)
- Chuck speed: 20 - 50 g/m
- Electric power: 220/400 V - 50Hz - 3 ph
- Dimension: L 860 x P 615 x H 550 mm
- Weight: 150 Kg - 342 Lbs
- Low tension driving control
- Motor-driven grinding whell
- Incorporated coolant pump
