RV3000
Tax excluded. Shipping calculated at checkout

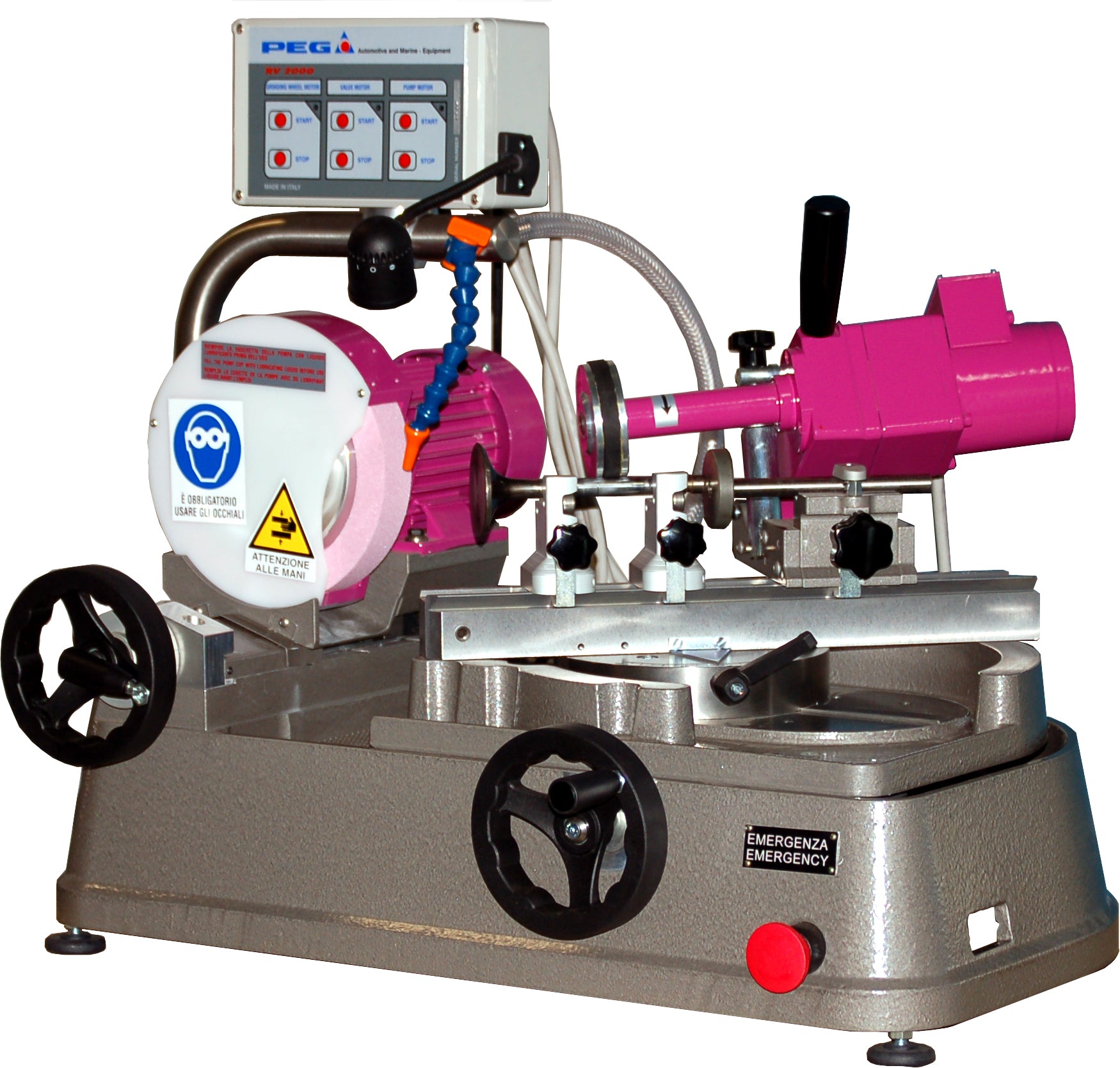

The RV3000 valve refacer marks a new phase in valve refacing. It`s double "V" operation, instead of the traditional use of pliers or chucks, brings to very accurate results and is extremely easy. The peculiar valve locking system can be applied on a wide range of engines
For B2B customers, please register here for EU VAT exemption.
RV3000
Sale price€0,00
CHARACTERISTICS
EQUIPMENT
- Allen wrench 2.5/3/4/5/6
- Open end wrench 8
- Valve drassing wheel
- Valve stop
- Diamond
- Diamond support and valve and refacer
OPTIONS
- Other eletric powers on request
- Adapter for valve stem lower than Ø 4 and lower than 70 mm length
- Pair of valve supports for valve stems over Ø 16 mm
MACHINEPARTS
- Valve stem diameter: 4 mm (5/32") - 16 mm (10/16")
- Grinding sngle: 20°-60°
- Maximum head diameter: 100 mm
- Maximum head length: 400-450 mm
- Valve length at 30° and 40°: 75 mm min
- Head diameter 30°: 22 mm min
- Head diameter 45°: 11 mm min
- Grinding wheel size: 175 Ø x 30 mm
- Grinding wheel speed: 2800 rpm
- Electric power: 230/400V 50Hz 3Ph
- Valve dragging wheel speed: 14 rpm
- Dimension: 800(31" 1/2) x 600(23" 3/5) x 600(23" 3/5)
- Weight: 109Kg (240Lbs)
- Low tension driving control
- Moror-driven grinding wweel
