s3.5
Tax excluded. Shipping calculated at checkout

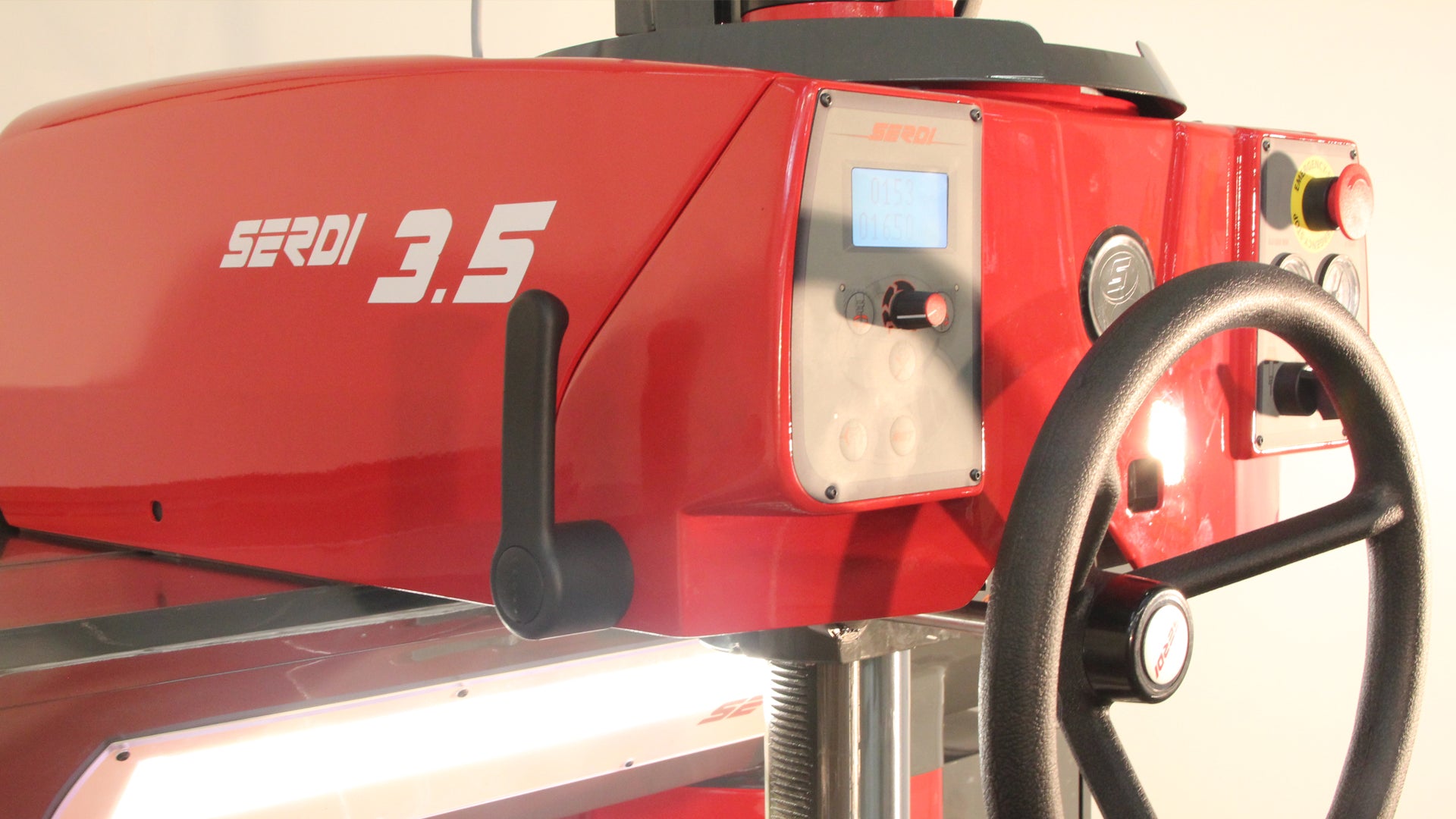

High precision valve seat and valve guide cutting machine especially designed for multi-valve cylinder heads. Patented workhead with triple air-float, patented centering system and built-in spindle motor. Perfect machine for the most demanded motorcycle and automotive multi-valve cylinder heads. Achieves excellent levels of concentricity even in guide sizes as small as 3 mm/0.12”.
For B2B customers, please register here for EU VAT exemption.
s3.5
Sale price€0,00
CHARACTERISTICS
- Machining capacity from 16mm to 70mm / 0.6’’ to 2.75’’.
- Patented lightweight workhead : built-in spindle motor and triple air-float centering system.
- Minimal workhead inertia and maximum floatation for unmatched centering sensitivity.
- Fully integrated spindle motor, variable speed from 100 to 1200 RPM, paired to a 1.5 kW Siemens inverter.
- Forward and reverse directions. Extremely wide torque ratings from lowest RPM with constant torque spindle rotation.
- Digital spindle speed rotation and machining depth read out.
- Modern modular machine bed design for improved rigidity, using iron casting parts to get chatter free valve seat machining.
- Manual front-to-back displacement of the cylinder head with pneumatic locking.
- Available with a dedicated tool bit sharpener and a 360° roll over fixture.
- LED worklight.
- Supplied with the new SERDI tooling that decreases the cutting force by 30%, this machine will cut the hardest seats.
MACHINEPARTS

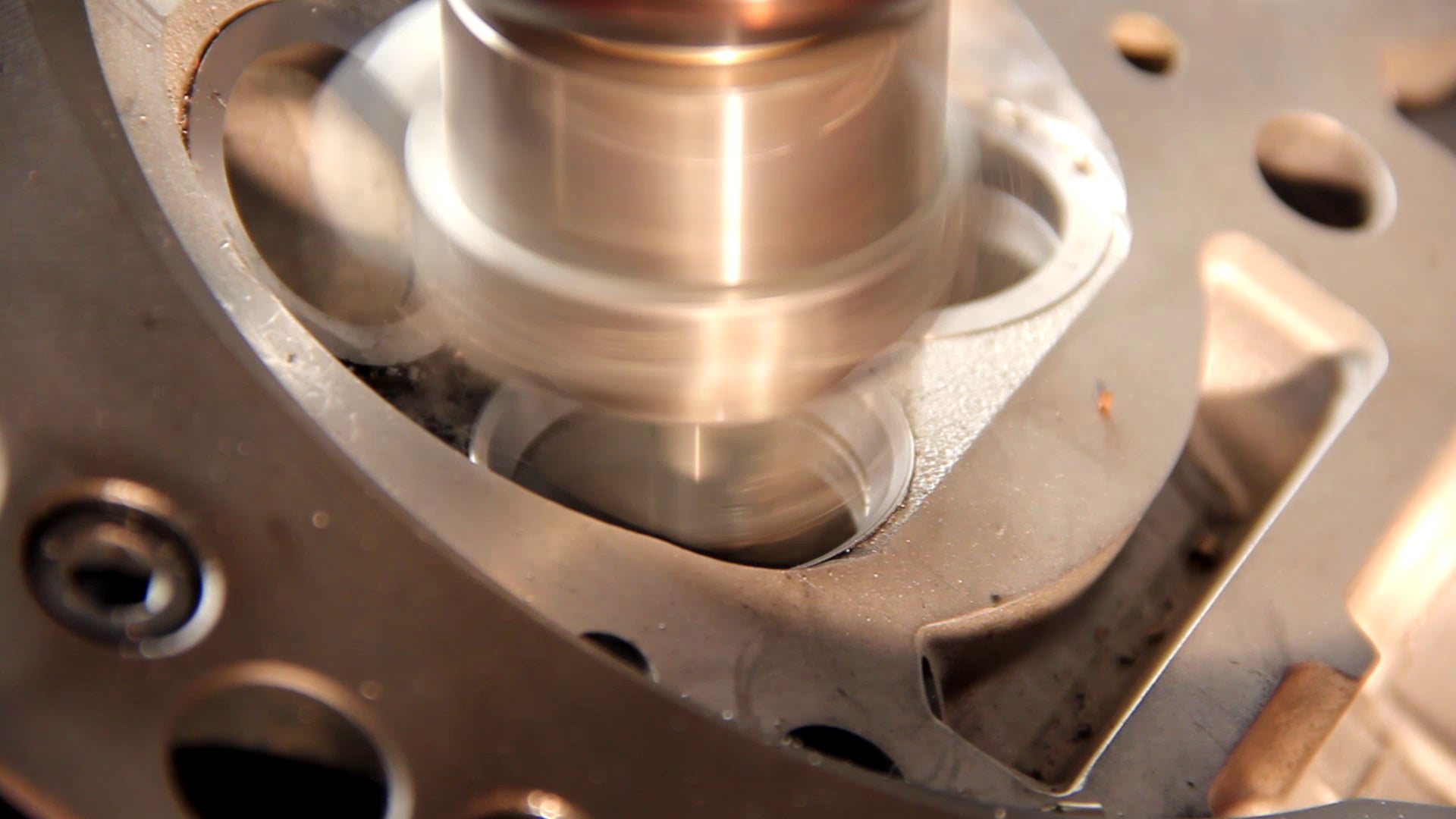

- Machining process : Profile cutting bit
- Machining driving : Manual
- Industry : Small and medium production

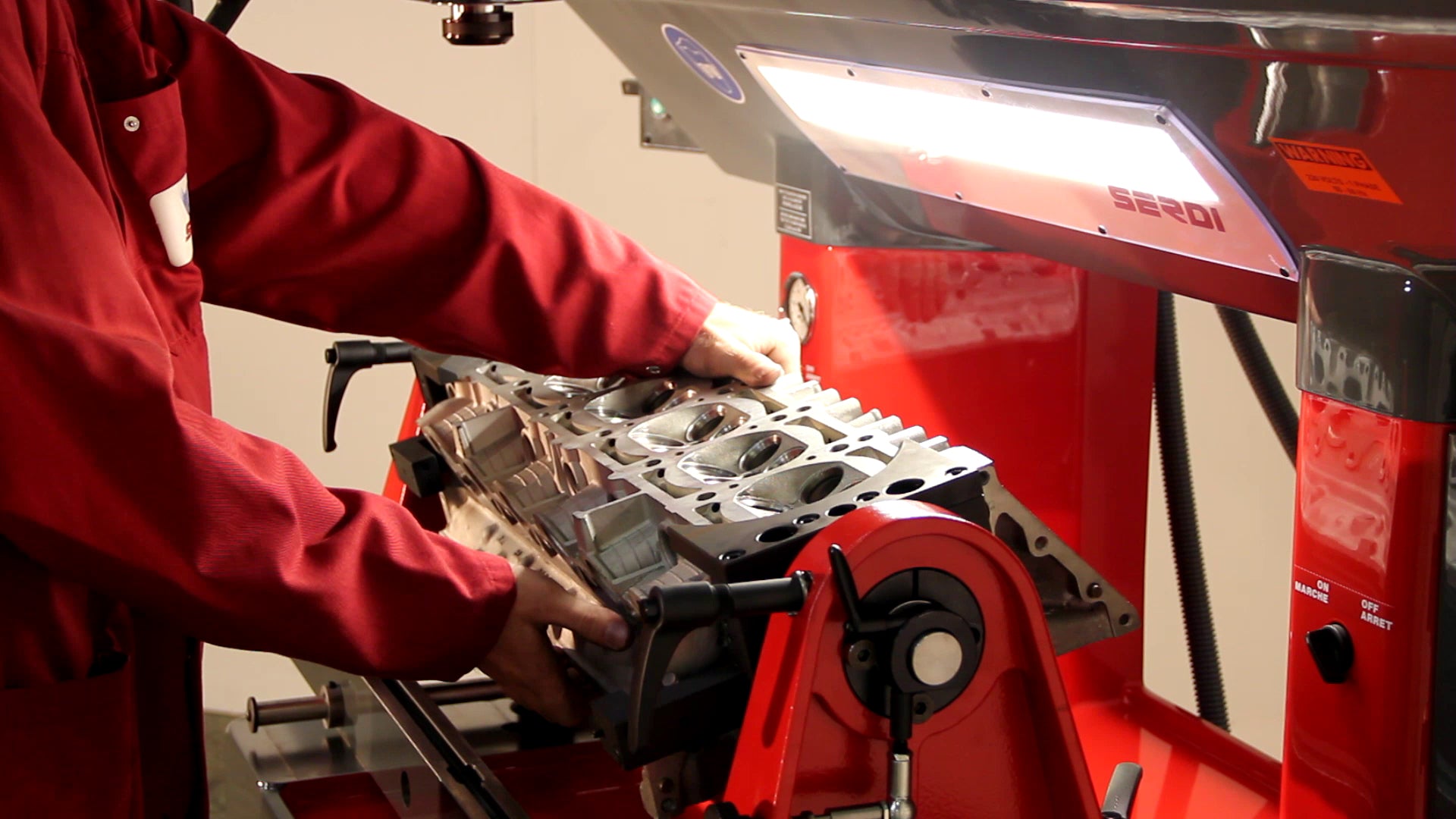

- Cylinder head type : Motorcycle and automotive multi-valve cylinder heads
- Seat capacity: Ø16 to Ø70 mm / 0.6’’ to 2.75’’
- Centering technology: Triple air cushion centering
