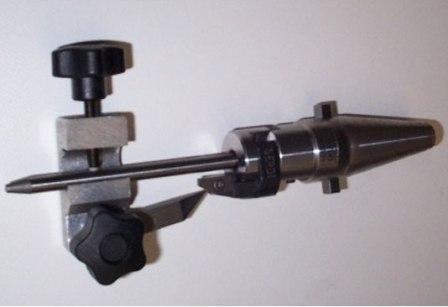

SERDI MICRO 2000 Portable multi-angle seat cutting unit

Portable multi-angle seat cutting unit with precision dual plane centering system.
Ideal for low volume motorcycle for automotive shops.

SPINDLE

Spindle travel : 15 mm - 0.59"

Feed Vernier scale : 0.02 mm - 0.0007"

Cylinder heald tilting (from horizontal) : +52° to -15°

Angular stroke : 8°

MACHINING CAPACITY

Valve seat capacity : 16 to 40 mm - 0.63" to 1.57"

CONNECTIONS

Net weight approx. : 4.5 Kg - 9.9 lbs

Electric power supply : none

Pneumatic air supply : none
