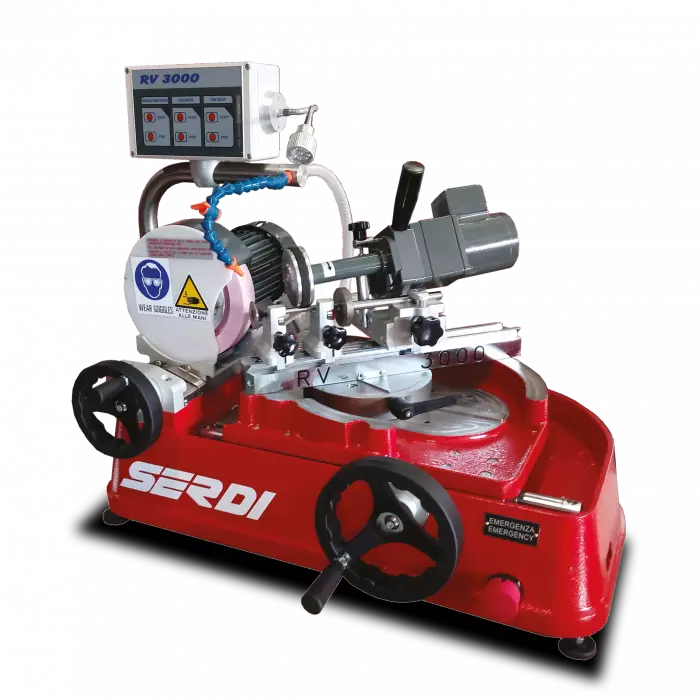

SERDI RV3000+ Centerless Valve Refacing Machine
Tax excluded. Shipping calculated at checkout
SERDI RV3000+ Centerless Valve Refacing Machine
High precision centerless valve refacing machine. Its double-V operation, instead of the traditional use of pliers or chucks, brings to very accurate results and is extremely easy.
The peculiar valve locking system can be applied on a wide range of engines.
ADJUSTABLE TRAVEL STOP
Adjustable travel stop system on the sliding plate to ensure the operator doesn’t contact the valve stem with the wheel edge.
VALVE STOP HANDLE
Integration of a clamping handle to setup fastly the valve stop
COOLANT
The machines is equiped with an electric pump to lubricate the grinding. The hose is strightly fitted on the sliding plate in order to ensure a constant flow on the valve.
UNIVERSAL VALVE SUPPORT
The universal valve support allows mounting some valve guides to grind the valve stem with more accuracy.
SPACE REQUIREMENT
Width : 800 mm - 31.5"
Depth : 600 mm - 23.6"
Height : 600 mm - 23.6"
Net weight approx. : 109 Kg - 240 lbs
CONNECTIONS
Electric power supply : 230V-1PH+N+T-50/60Hz
VALVE SIZE
Maximum valve head Ø : 100 mm - 3.93"
Max. valve length : 400-450 mm / 15.75-17.71"
Minimum valve head Ø at 30° : 22 mm - 0.86"
Valve head minimum Ø at 45° : 18 mm - 0.7"
Valve stem Ømini-maxi : 4 to 16 mm - 0.15" to 0.63"
MOTORS
Grinding wheel speed : 0 to 2800 rpm
Valve driving speed : 0-14 rpm
Grinding wheel motor power : 80 W
