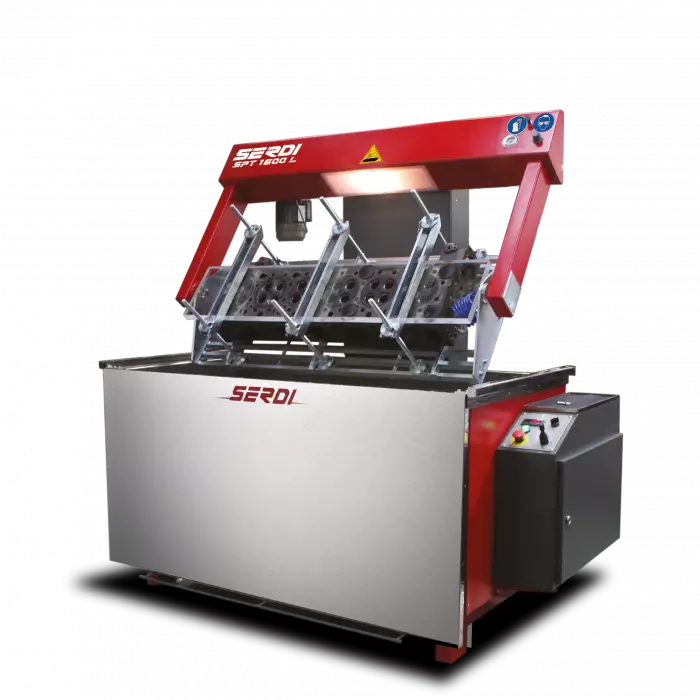

SERDI SPT1600L Pressure Tester

SERDI SPT1600L Pressure Tester

Easy and efficient pressure test of cylinder head and cylinder block coolant circuits.

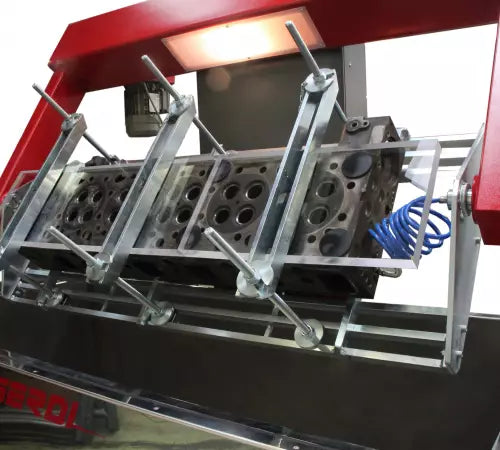

MOTORIZED 360° CRADLE

Electric powered rotation of the part on 360° to inspect all the sides of the part.

HYDRAULIC POWERED VERTICAL TRAVEL

Lift and lowering of the part by hydraulic jacks.

TANK

Stainless steel insulated tank

WATER LEVEL CONTROL

In order avoiding the heating resistances to get damaged, a float makes sur the water level is sufficient.

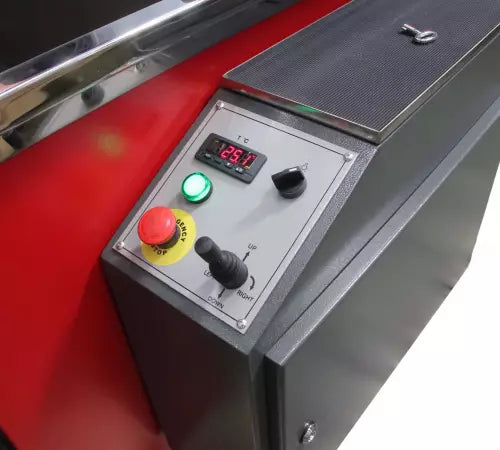

PRAGRAMMABLE HEATING CYCLE

Heating cycle is programmable on a weekly basis and allows a pre-heating by night, consequently optimising the using time of the machine.

HEATING RESISTANCES

Water heating is provided by two 4.5 kW electric resistor, located at the tank bottom and protected by covers.

SPACE REQUIREMENT

Depth : 1120 mm - 44.1"

Height : 1650 mm - 64.96"

Net weight approx. : 510 Kg - 1124 lbs

Width : 2050 mm - 80.7"

MAXIMUM CYLINDER HEAD SIZE

Width : 1350 mm - 53.15"

Height : 300 mm - 11.81"

Width : 395 mm - 15.55

Block max. weight : 300 Kg - 661 lbs

CONNECTIONS

Electric power supply : 16kVA-3x400V-AC-50/60 Hz

or 16kVA-3x230V-AC-50/60 Hz

Pneumatic air supply : 6 bars

TANK

Tank capacity : 590 L

Heating resistances power : 2 x 4.5 kW

Thermostat : 0 to 90°C

CRADLE

Cradle rotation gearmotor power : 0.18 kW

Up-down travel : 490 mm - 19.3"

Cradle rotation speed : 4 rpm

Hydraulic unit power : 0.75 kW
