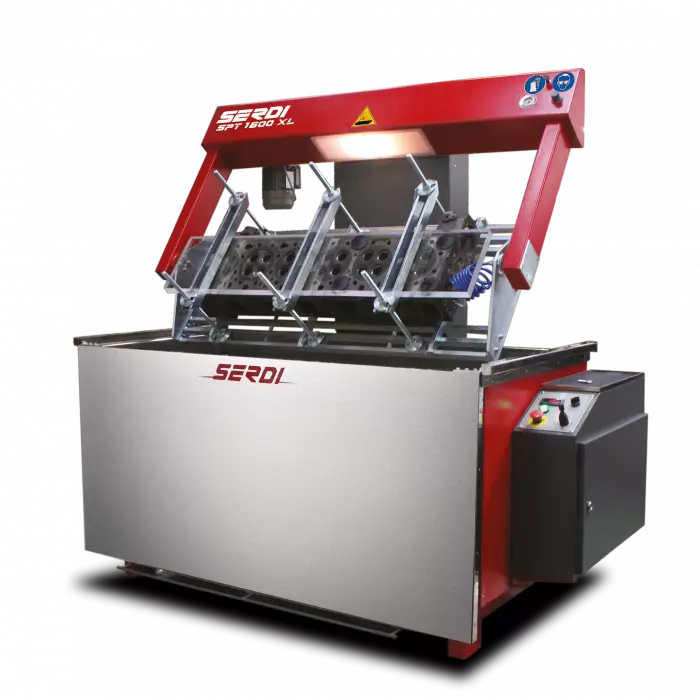

SERDI SPT1600XL Pressure Tester

SERDI SPT1600XL Pressure Tester

Easy and efficient pressure test of cylinder head and cylinder block coolant circuits.

HYDRAULIC POWERED VERTICAL TRAVEL

Lift and lowering of the part by hydraulic jacks.

TANK

Stainless steel insulated tank

HEATING RESISTANCES

Water heating is provided by two 4.5 kW electric resistor, located at the tank bottom and protected by covers.

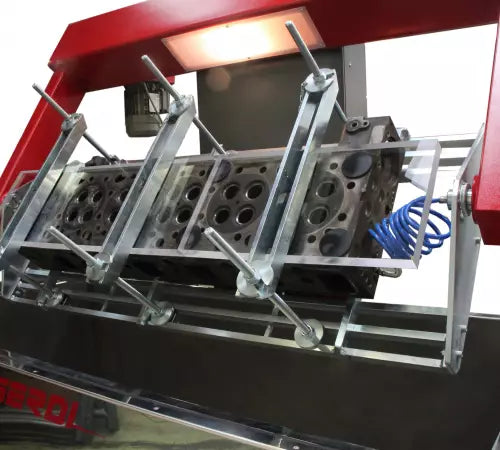

MOTORIZED 360° CRADLE

Electric powered rotation of the part on 360° to inspect all the sides of the part.

WATER LEVEL CONTROL

In order avoiding the heating resistances to get damaged, a float makes sur the water level is sufficient.

PRAGRAMMABLE HEATING CYCLE

Heating cycle is programmable on a weekly basis and allows a pre-heating by night, consequently optimising the using time of the machine.

SPACE REQUIREMENT

Width : 2060 mm - 81.1"

Depth : 1200 mm - 47.24"

Height : 1900 mm - 74.8"

Net weight approx. : 660 Kg - 1455 lbs

MAXIMUM CYLINDER HEAD SIZE

Width : 1350 mm - 53.15"

Depth : 460 mm - 18.11"

Height : 410 mm - 16.14"

Block max. weight : 300 Kg - 661 lbs

CONNECTIONS

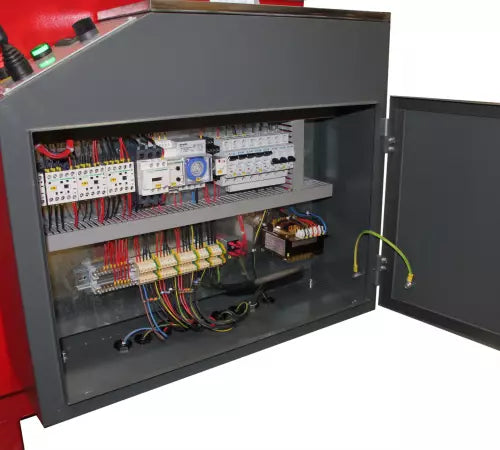

Electric power supply : 16kVA-3x400V-AC-50/60 Hz

or 16kVA-3x230V-AC-50/60 Hz

Pneumatic air supply : 6 bars

TANK

Heating resistances power : 2 x 4.5 kW

Thermostat : 0 to 90°C

Tank capacity : 710 L

CRADLE

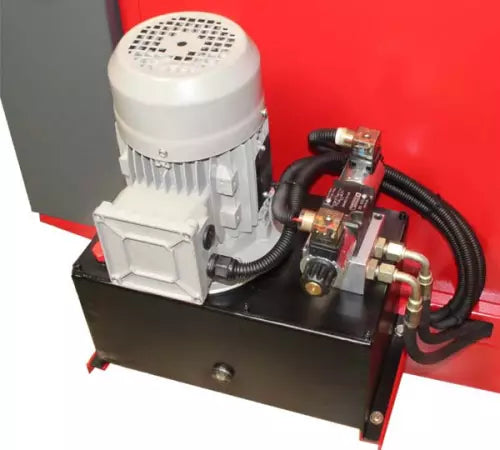

Hydraulic unit power : 0.75 kW

Cradle rotation gearmotor power :

Up-down travel : 545 mm - 21.45"

Cradle rotation speed : 4 rpm
