SIMPLEX BIG 1000 2B
Tax excluded. Shipping calculated at checkout
PARTS WASHERS WITH ROTARY BASKET, PLC AND TOUCHSCREEN

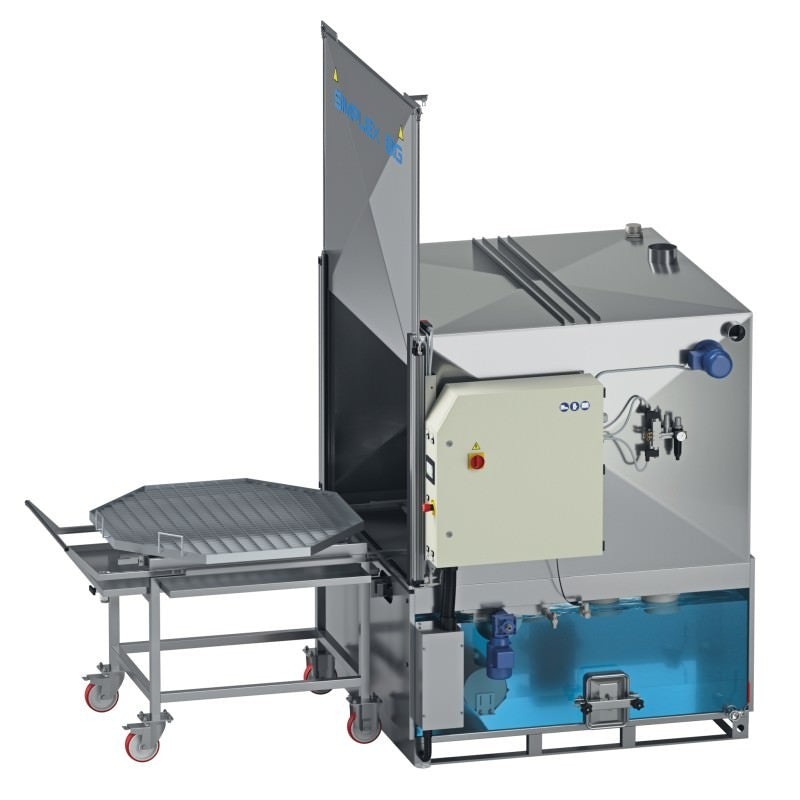

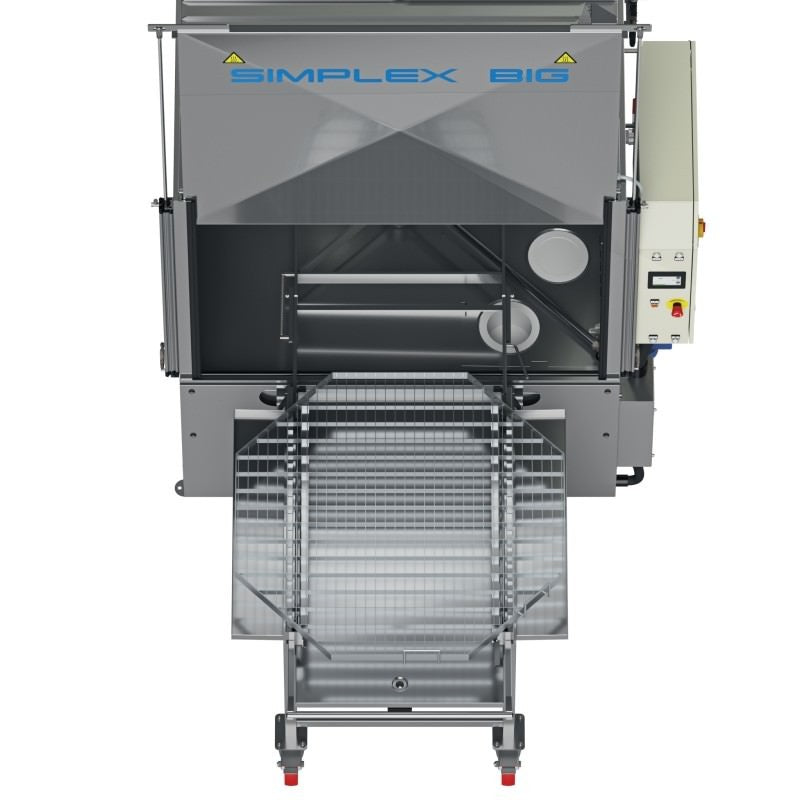

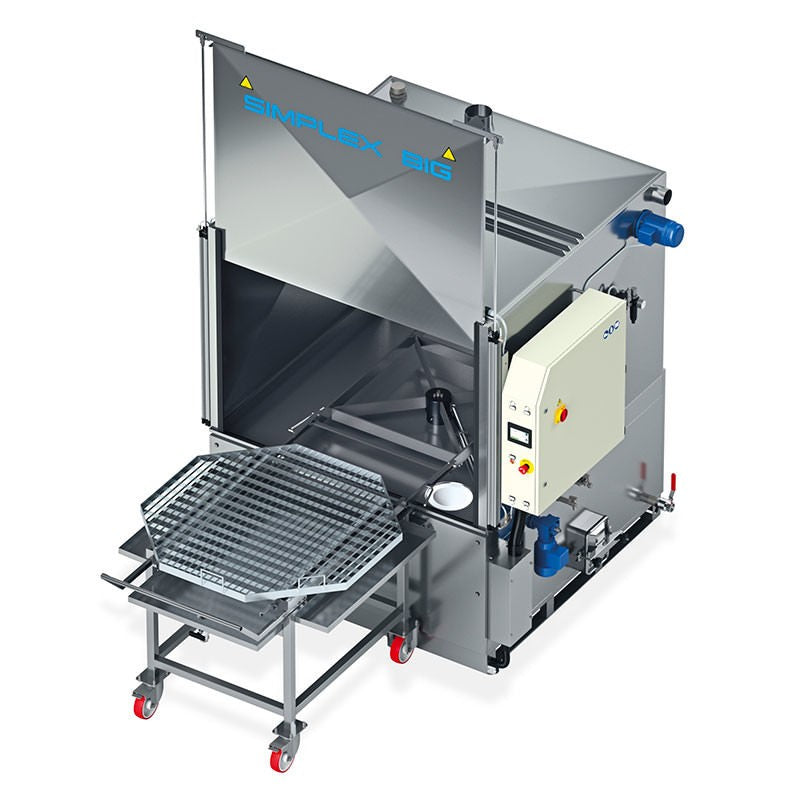

Simplex Big is a system ideal for the automatic washing of medium and large size mechanical parts.
The washing is carried out by the action of upper, lower and side jets.
The slow rotation of the platform is ensured by a gear motor with a torque limiter.
A PLC and touchscreen display management enables numberless customizations thanks to a wide range of accessories.
The 2-bath machines (2B) have two separate tanks and carry out both washing and rinsing.
For B2B customers, please register here for EU VAT exemption.
SIMPLEX BIG 1000 2B
Sale price€23.136,36
CHARACTERISTICS
What is included in each SIMPLEX BIG 2B
- Electric timed steam extraction
- External trolley in stainless steel AISI 304 with drip-catcher, wheels and safety brakes
- ISO pneumatic cylinders and "anti-fall" pneumatic safety valves
- Two-hand safety control for the door closing
- Tank liquid maximum level control and solenoid valve for automatic water intake
- Minimum level control
- Colour 4'' touchscreen display for settings and programs.
- Electric pumps in stainless steel AISI 304 with special gaskets
- Safety limit switch on the door opening
- IP 65 electric system with PLC touchscreen (DGT V4)
- Gear motor for basket rotation with torque limiter and centering sensor
- Reinforced basket in pressed grating with raised external edge in galvanized iron
- Sludge discharging door for an easy tank cleaning
- Stainless steel AISI 304 structure and plates in contact with the liquid
- Lower load-bearing structure in galvanized steel
- Triple door gasket (lower, upper and side)
- Flexible suction and pump delivery pipes (easy maintenance)
MACHINEPARTS
SIMPLEX BIG 2B 1000
- Washing capacity ( Ø x H ): Ø 90x H 70 cm
- Basket load capacity: 600 kg
- Tank: 280 lt/280lt
- Washing capacity ( Ø x H ): Ø 110 x H 80 cm
- Basket load capacity: 600 Kg
- Tank: 350 lt/350lt
- Washing capacity ( Ø x H ): Ø 128x H 90 cm
- Basket load capacity: 600 kg
- Tank: 500 lt/500lt
- Washing capacity ( Ø x H ): Ø 165 x H 100 cm
- Basket load capacity: 600 Kg
- Tank: 700 lt/700lt
- Washing capacity ( Ø x H ): Ø 200 x H 100 cm
- Basket load capacity: 600 Kg
- Tank: 1000 lt/1000lt
- Maximum temperature setting 60°C
- Maximum temperature setting 80°C
