SPT 1600L
Sale price€0,00
CHARACTERISTICS
- Increased cradle and tank size to fit large cylinder heads.
- Designed to welcome engines of passenger cars, vans and light commercial vehicle + IVECO CURSOR heads.
- Quick and easy clamping system allowing tests at a pressure of 0 to 10 bars.

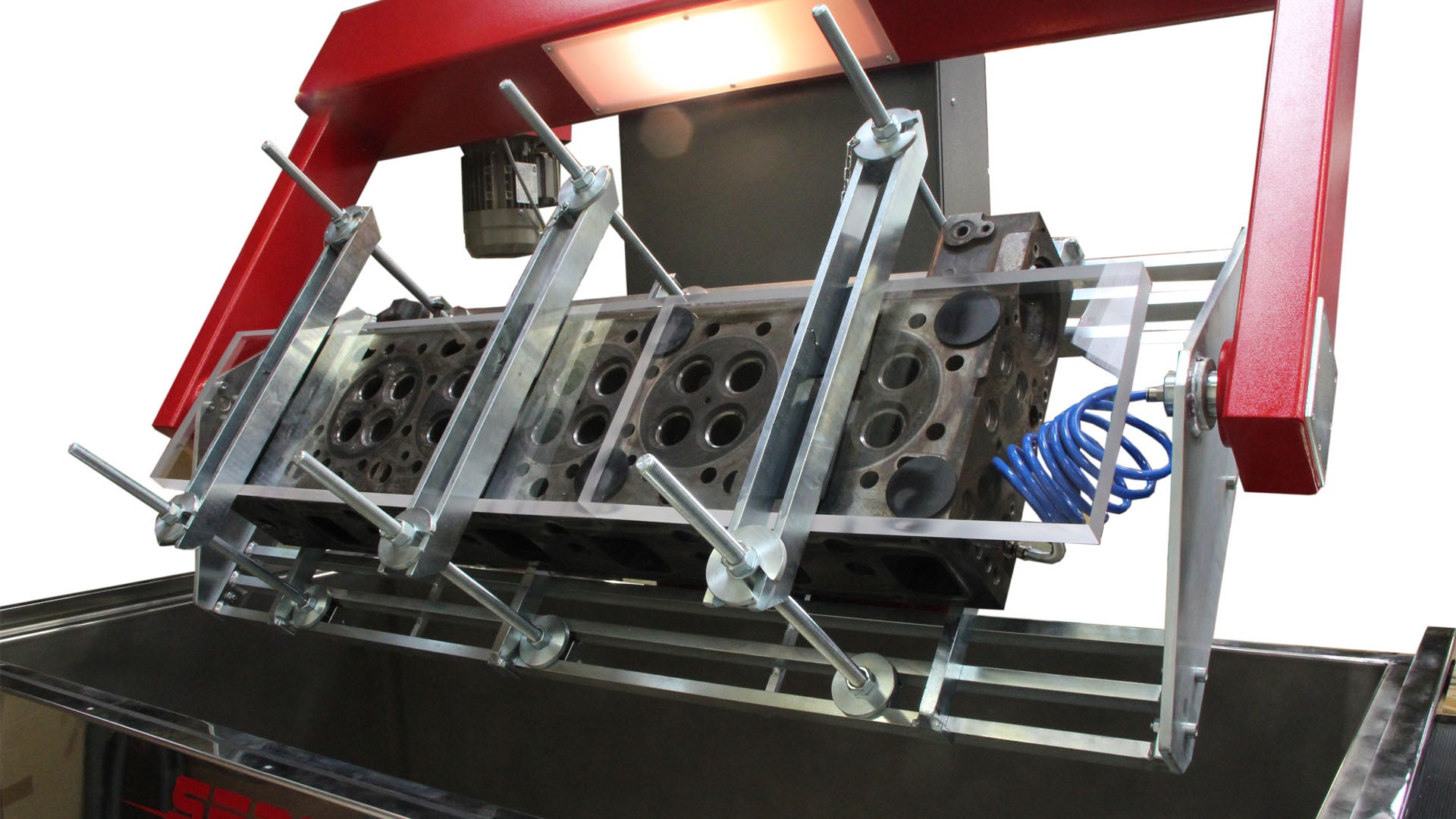

- 360° electric powered roll-over fixture.
- Hydraulic cradle lift for easy positioning of heavy cylinder heads.
- Stainless steel tank with heat barrier.
- Heating elements: two changeover 4500 Watts elements.
- Water level control.
- Low voltage: 24V operating control.

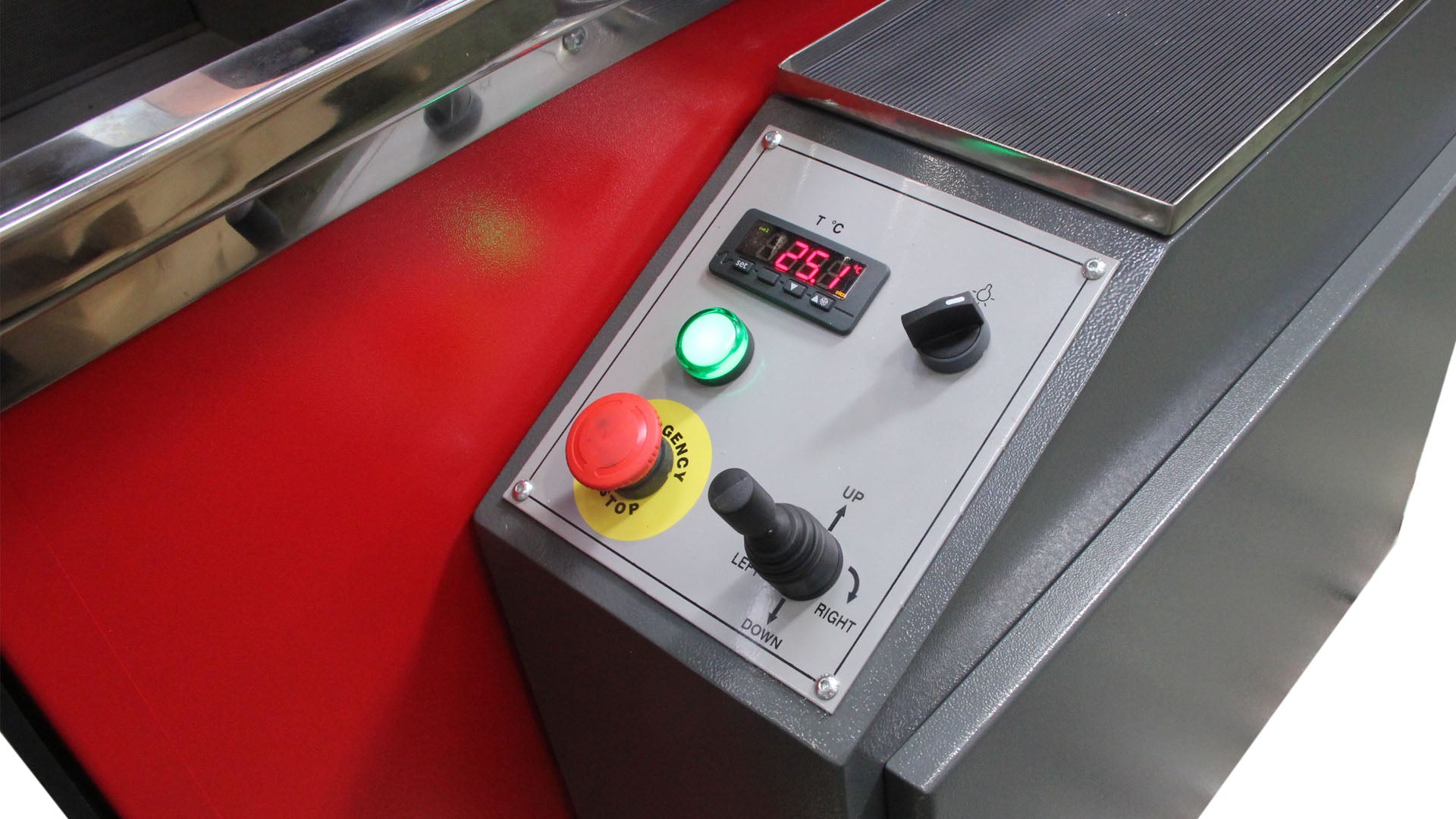

- Electronic adjustable thermostat.
MACHINEPARTS
Space requirements
- Length mm/in 1920 / 75.6
- Width mm/in 1050 / 41.4
- Height mm/in 1800 / 70.9
- Length mm/in 1350 / 53.1
- Width mm 395 / 15.5
- Height mm 300 /11.8
- Weight Kg / lbs 300 / 660
- Tank capacity l 590
- Heating elements kW 2x4.5
- Thermostat °C 0 - 90
- Hydraulic Hoist kW 0.75
- Gear-motor kW 0.18
- Rotational speed rpm 4
- Up and down stroke time mm in 10 sec 600
- Power supply 16kVA-3x400V-AC-50/60 Hz or 16kVA-3x230V-AC-50/60 Hz
- Net weight approx. wit
