Tierra Tech TT-1000N Ultrasonic Cleaning Equipment 1000 Liter
Tax excluded. Shipping calculated at checkout
The TT-1000N ultrasonic cleaning equipment is designed for intensive industrial use, featuring a 1000-litre tank and delivering 6800Wp (13600Wp-p) of ultrasonic power via four submersible emitters.
Each emitter, constructed with 2.5 mm thick AISI 316L stainless steel and 34 IBL piezoelectric transducers in titanium, ensures powerful and uniform cleaning.
A reinforced pneumatic platform supports loading and unloading of components up to 500 kg. Additional features include a 1½” drain ball valve, height-adjustable silentblock legs for stability, a pneumatically operated insulated tank cover in stainless steel, and an air blow gun for effective part drying.

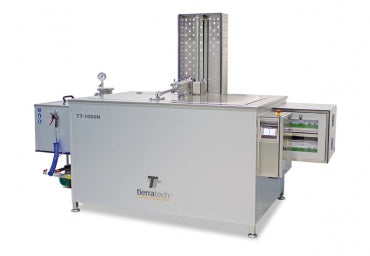

TT-1000N ultrasonic cleaning equipment with steel tank, pneumatic lift, air drying, and thermal insulation for high-performance industrial applications
Ultrasonic Characteristics
- Ultrasonic power: 6800Wp (13600Wp-p)
- 2 ultrasonic generator with an output power of 6800Wp (13600Wp-p)
- 4 submersibles emitters with a power of 1700Wp (3400W p-p) made of 2.5 mm thick stainless steel AISI 316L. The emitter contains 34 high-performance IBL piezo-electric transducers in titanium steel.
- Working frequency: 40 KHz sweep system ± 2%
Control Panel
- 4,3″ TFT LCD touch screen. Functional and intuitive access to ultrasound time setting, temperature and peripheric or optional systems.
- Programmable weekly calendar
- 6 outputs and 8 inputs temperature module PLC
Finishes and Accessories
- Tank made of 2 mm thick stainless steel AISI 304L
- External panel in 1 mm thick fingerprint resistant steel
- 20 mm thick thermo-acoustic insulation
- Reinforced pneumatic platform for loading and unloading up to 500 kg
- 1½” drain ball valve
- Height-adjustable silentblock legs
- Automatic insulated tank cover in stainless steel operated by a pneumatic cylinder
- Air blow gun for drying the parts
-
Integrated waterflow system. Sweeps the waste floating on the surface, keeping the cleaning equipment in perfect
condition - (Optional): Filtration system (stainless steel filter with polypropylene / polyester bag) for waste and mud
