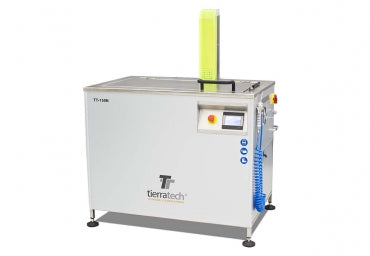

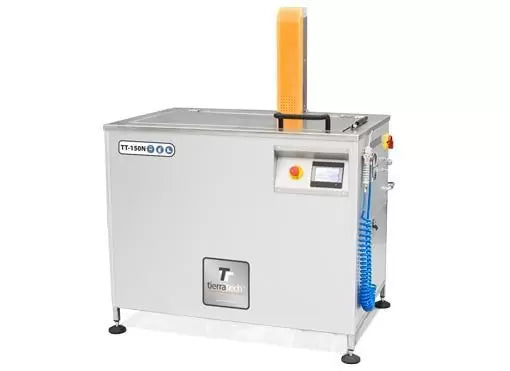

Tierra Tech TT-150N Ultrasonic Cleaning Equipment 150 Liter

The ultrasonic cleaning equipment TT-150N is engineered for precise and efficient industrial cleaning applications. It delivers 1700W(3400Wp-p) of ultrasonic power via a dedicated generator and a submersible emitter fitted with 34 high-performance IBL piezo-electric transducers in titanium steel.

 Operating at 40 kHz with a ±2% sweep system, it ensures thorough cleaning even on intricate components. The 4.3” touch screen offers intuitive control of time, temperature, and optional systems, supported by a PLC with multiple inputs and outputs.

Constructed with a 2 mm thick AISI 304L stainless steel tank and a 1 mm fingerprint-resistant steel exterior, the TT-150N combines durability with advanced functionality.

It is an ideal choice for high-precision cleaning in industrial environments requiring consistent, reliable results

Ultrasonic Characteristics

• 1 ultrasonic generator with an output power of 1700W(3400Wp-p)
• 1 submergible emitter with 1700W (3400Wp-p)made of 2.5 mm thick stainless steel AISI 316L.
  The emitter contains 34 high-performance IBL piezo-electric transducers in titanium steel
• Working frequency: 40 KHz sweep system ± 2%

Control Panel

• Integrated control panel  with 7″ TFT screen.
• Time and temperature control.
• Movement button (up – down – shaking).
• US button (connect – disconnect), direct ultrasonic alarms and selectors.
• Weekly programmer, for preheating and turning off the machine.

Finishes and Accessories

• Tank made of 2 mm thick stainless stell AISI 316L
• External panel in 1 mm thick fingerprint resistant steel
• 20 mm thick thermo-acoustic insulation
• Side handles integrated on the external panel
• Stainless steel basket with anchorage system for loading, unloading and draining the parts
• Reinforced pneumatic platform for loading and unloading up to 60 kg
• ½” drain ball valve
• Height-adjustable silentblock legs
• Insulated tank cover of Stainless steel with pneumatic shock absorber
