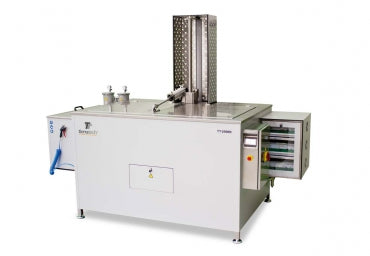

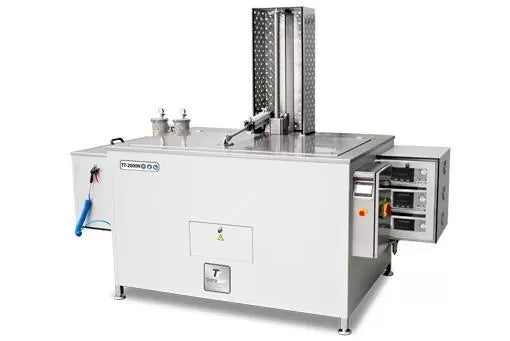

Standard TT 2000N
Tax excluded. Shipping calculated at checkout
-
Capacity: 2000 litres
- Internal dimensions: 1750 x 1100 x 1080 mm. (excluding auxiliary tank)
- Useful measurements: 1650 x 910 x 800 mm.
- Platform dimensions: 1650 x 910 mm.
- External dimensions: 3025 x 1580 x 1323 mm. (including auxiliary tank)
- Weight: 1250 Kg.
For B2B customers, please register here for EU VAT exemption.
Standard TT 2000N
Sale price€36.978,51
CHARACTERISTICS
ELECTRIC CHARACTERISTICS
- Power Supply: 400V.
- Heating element: 18000W.
- Ultrasonic Power: 10200 W. (20400W. p-p).
- 3 Ultrasound generators with an output power of 3400W (6800 W p-p) each one.
- Working frequency: 40 KHz with a frequency Sweep System(Sweep System ±2). 6 submersible emitters of 1700W each
MACHINEPARTS
CONTROL PANEL
- 4.3” TFT LCF touch screen. Functional and intuitive; with access to select the time of the ultrasounds, temperature and peripherals or optional systems; and it is programmable on a weekly calendar.
- PLC with a temperature model fitted with 7 outputs and 7 inputs.
- AISI 304 stainless steel tank, 2.5 mm thick.
- K-Flex Duct Net thermal and acoustic insulation, 20 mm.
- Exterior steel panelling with a special anti-fingerprint finish. Easy to clean.
- Reinforced pneumatic platform for loading, packing and unloading with capacity for 1000 Kg.
- 1” water inlet ball valve and a 2” one for drainage.
- Silentblock legs, adjustable in height
- Heat-insulated stainless steel end-of-day lid.
- Compressed air gun to dry parts. Integrated system to separate lubricants and oils. Removes residue from the surface of the ultrasound tank, keeping the cleaning equipment in perfect condition. Sloping bottom to facilitate cleaning. • (Optional): filtering system (stainless steel filter with a polypropylene/polyester bag) for residue and mud.
