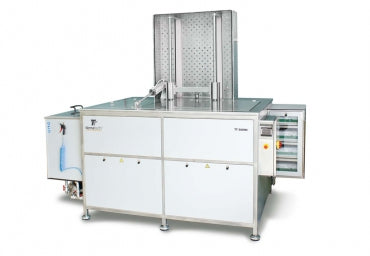

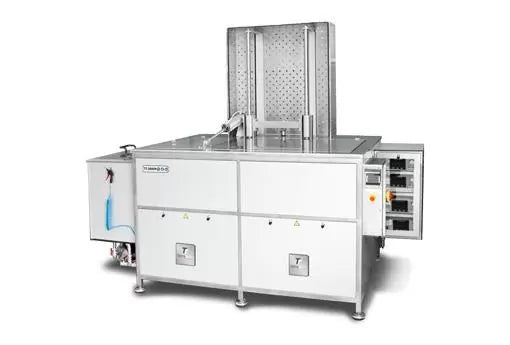

Tierra Tech TT-3000N Ultrasonic Cleaning Equipment 3000 Liter
Tax excluded. Shipping calculated at checkout
The ultrasonic cleaning equipment TT-3000N is designed for heavy-duty industrial applications, offering a large 3000-litre tank and a reinforced pneumatic platform that supports loads up to 1500 kg.
With 13600Wp (27200Wp-p) of ultrasonic power delivered through 8 submersible emitters—each equipped with 34 high-performance IBL piezo-electric transducers—it ensures deep and effective cleaning of large and complex parts. Operating at a frequency of 40 kHz with ±2% sweep system, the TT-3000N guarantees consistent and uniform ultrasonic performance.
Constructed with robust 2.5 mm thick AISI 316L stainless steel emitters and powered by 28000W heating element, this equipment is ideal for demanding industrial cleaning tasks requiring precision, power, and durability.
The TT-3000N offers unmatched cleaning capacity and power, making it the ultimate solution for large-scale industrial cleaning demands.
Ultrasonic Characteristics
- 4 Ultrasonic generators with an output power of 13600Wp (27200Wp-p)
- 8 submersibles emitters with a power of 1700Wp (3400Wp-p) made of 2.5 mm thick stainless steel AISI 316L steel. The emitter contains 34 high-performance IBL piezo-electric transducers in titanium steel
- Working frequency: 40 KHz sweep system ± 2%
Control Panel
- 4.3” touch screen. Functional and intuitive access to ultrasound time setting, temperature and peripheric or optional systems.
- Programmable weekly calendar
- 6 outputs and 8 inputs temperature module PLC
Finishes and Accessories
- Tank made of 2 mm thick stainless steel AISI 304L
- External panel in 1 mm thick fingerprint resistant steel
- 20 mm thick thermo-acoustic insulation
- Reinforced pneumatic platform for loading and unloading up to 1500 kg
- 1½” drain ball valve
- Height-adjustable silentblock legs
- Automatic insulated tank cover in stainless steel operated by a pneumatic cylinder
- Air blow gun for drying the parts
- Integrated waterflow system. Sweeps the waste floating on the surface, keeping the cleaning equipment in
perfect condition - (Optional): Filtration system (stainless steel filter with polypropylene / polyester bag) for waste and mud
