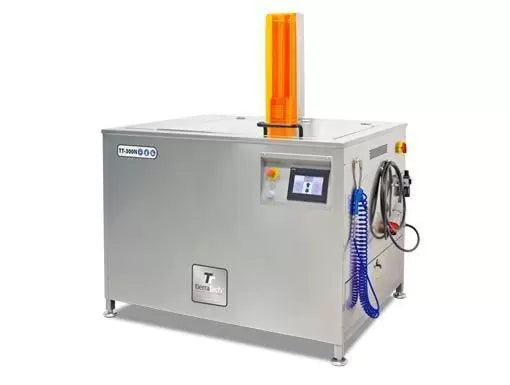

Standard TT 300N
Tax excluded. Shipping calculated at checkout
- Capacity: 300 litres
- Internal dimensions: 900 x 650 x 640 mm. (excluding auxiliary tank)
- Useful measurements: 850 x 495 x 360 mm.
- Platform dimensions: 850 x 495 mm.
- External dimensions: 1340 x 890 x 1020 mm.
- Weight: 300 Kg.
For B2B customers, please register here for EU VAT exemption.
Standard TT 300N
Sale price€15.161,65
CHARACTERISTICS
ELECTRIC CHARACTERISTICS
- Power Supply: 400V.
- Heating element: 7000W.
- Ultrasonic Power: 3000W. (6000W. p-p).
- 1 ultrasound generator with an output power of 3000 W (6000 W p-p).
- Working frequency: 40 KHz with a frequency Sweep System (Sweep System ± 2%).
MACHINEPARTS
CONTROL PANEL
- 4.3” TFT LCF touch screen. Functional and intuitive; with access to select the time of the ultrasounds, temperature and peripherals or optional systems; and it is programmable on a weekly calendar.
- PLC with a temperature model fitted with 7 outputs and 7 inputs.
- AISI 304 stainless steel tank, 2 mm thick.
- Exterior steel panelling with a special anti-fingerprint finish. Easy to clean.
- K-Flex Duct Net thermal and acoustic insulation, 20 mm.
- Reinforced pneumatic platform for loading and immersing. Maximum load capacity: 250 Kg.
- ½” water inlet ball valve and a 1½” one for drainage.
- Silentblock legs, adjustable in height.
- Heat-insulated stainless steel end-of-day lid.
- Compressed air gun to dry parts. Integrated system to separate lubricants and oils. Removes residue from the surface of the ultrasound tank, keeping the cleaning equipment in perfect condition.
- (Optional): filtering system (stainless steel filter with a polypropylene/polyester bag) for residue and mud.
