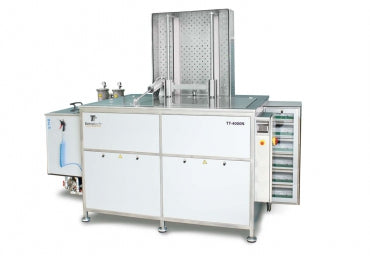

Standard TT 4000N
Tax excluded. Shipping calculated at checkout
-
Capacity: 4000 litres
- Internal dimensions: 2400 x 1500 x 1260 mm.
- Useful measurements: 2340 x 1320 x 880 mm.
- Platform dimensions: 2340 x 1320 mm.
- External dimensions: 2700 x 1920 x 1558 mm. (including auxiliary tank)
- Weight: 2800 Kg.
For B2B customers, please register here for EU VAT exemption.
Standard TT 4000N
Sale price€60.165,29
CHARACTERISTICS
ELECTRIC CHARACTERISTICS
- Power Supply: 400V.
- Heating element: 24000W.
- Ultrasonic power: 20400 W (40800 W p-p).
- 6 ultrasound generators with an output power of 3400 W (6800 W p-p) each.
- Working frequency: 40 KHz with a frequency Sweep System (Sweep System ± 2. 12 submersible emitters of 1700W each.
MACHINEPARTS
CONTROL PANEL
- 4.3” TFT LCF touch screen. Functional and intuitive; with access to select the time of the ultrasounds, temperature and peripherals or optional systems; and it is programmable on a weekly calendar.
- PLC with a temperature model fitted with 7 outputs and 7 inputs.
- AISI 304 stainless steel tank, 2.5 mm thick.
- K-Flex Duct Net thermal and acoustic insulation, 20 mm.
- Exterior steel panelling with a special anti-fingerprint finish. Easy to clean.
- Reinforced pneumatic platform for loading, packing and unloading with capacity for 2000 Kg.
- 1” water inlet valve and a 2” one for drainage.
- Silentblock legs, adjustable in height
- Heat-insulated stainless steel end-of-day lid.
- Compressed air gun to dry parts. Integrated system to separate lubricants and oils. Removes residue from the surface of the ultrasound tank, keeping the cleaning equipment in perfect condition.
- Sloping bottom to facilitate cleaning.
- (Optional): filtering system (stainless steel filter with a polypropylene/polyester bag) for residue and mud.
- (Optional): generator cabinet on an external electrical desk.
