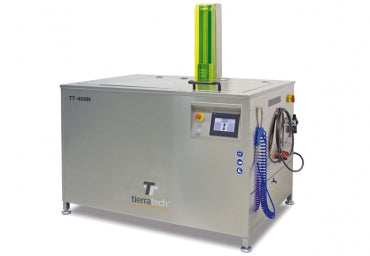

Standard TT 400N
Tax excluded. Shipping calculated at checkout
- Capacity: 400 litres
- Internal dimensions: 1100 x 650 x 690 mm. (excluding auxiliary tank)
- Useful measurements: 1050 x 495 x 415 mm.
- Platform dimensions: 1050 x 495 mm.
- External dimensions: 1540 x 890 x 1070 mm.
- Weight: 320 Kg.
For B2B customers, please register here for EU VAT exemption.

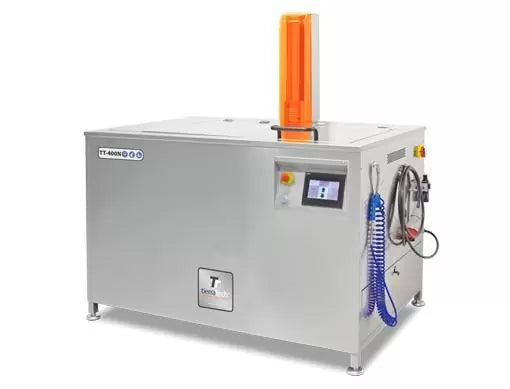

Standard TT 400N
Sale price€19.660,17
CHARACTERISTICS
ELECTRIC CHARACTERISTICS
- Power Supply: 400V.
- Heating element: 7000W.
- Ultrasonic Power: 3000W. (6000W. p-p).
- 1 ultrasound generator with an output power of 3400 W (6800 W p-p).
- Working frequency: 40 KHz with a frequency Sweep System (Sweep System ± 2%). 2 submersible emitters of 1700 W each.
MACHINEPARTS
CONTROL PANEL
4.3” TFT LCF touch screen. Functional and intuitive; with access to select the time of the ultrasounds, temperature and peripherals or optional systems; and it is programmable on a weekly calendar.
PLC with a temperature model fitted with 7 outputs and 7 inputs.
FINISHING AND ACCESSORIES
- AISI 304 stainless steel tank, 2 mm thick.
- Exterior steel panelling with a special anti-fingerprint finish. Easy to clean.
- K-Flex Duct Net thermal and acoustic insulation, 20 mm.
- Reinforced pneumatic platform for loading and immersing. Maximum load capacity: 250 Kg.
- ½” water inlet ball valve and a 1½” one for drainage.
- Silentblock legs, adjustable in height.
- Heat-insulated stainless steel end-of-day lid.
- Compressed air gun to dry parts. Integrated system to separate lubricants and oils. Removes residue from the surface of the ultrasound tank, keeping the cleaning equipment in perfect condition.
- (Optional): filtering system (stainless steel filter with a polypropylene/polyester bag) for residue and mud.
