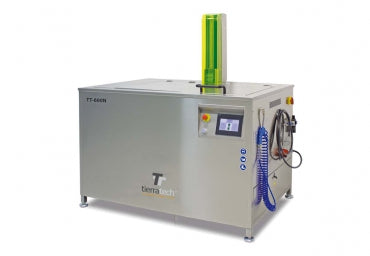

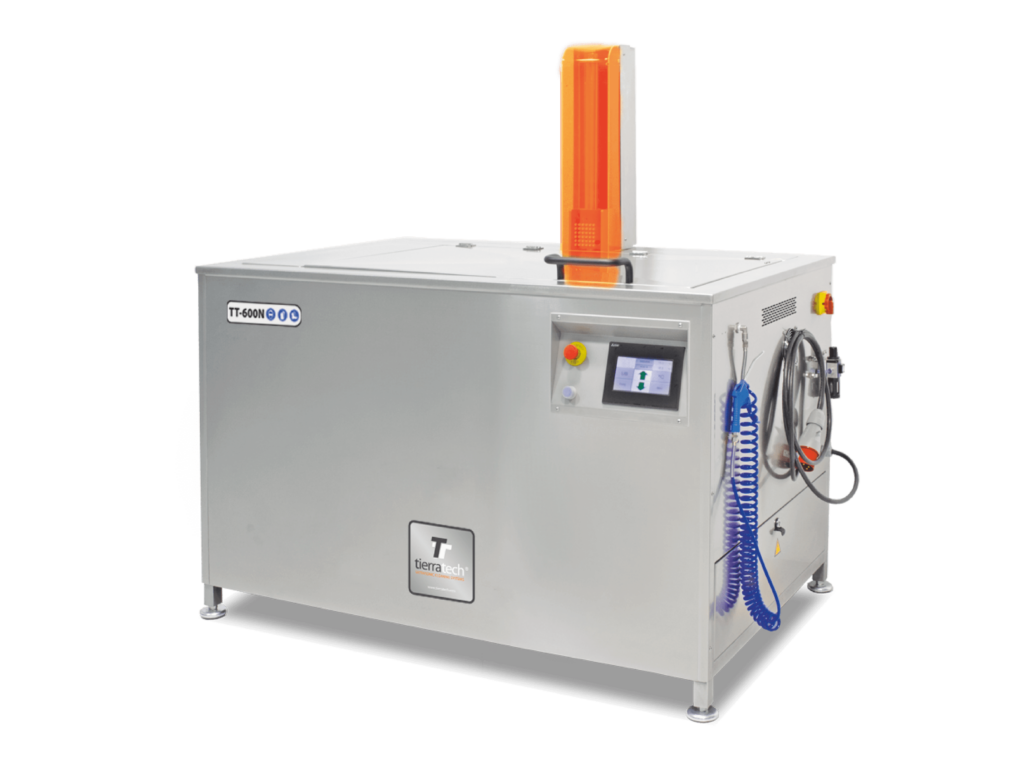

Tierra Tech TT-600N Ultrasonic Cleaning Equipment 600 Liter

The ultrasonic cleaning equipment TT-600N operates on a 400V power supply and features a powerful 9000W heating element. Its ultrasonic system delivers 6000W of effective power (12000W peak-to-peak), supported by three submersible emitters of 2000W each.

The unit is equipped with a 4.3” touchscreen control panel that provides intuitive access to settings such as ultrasonic cycle time, temperature control, and optional system management.

It also features a programmable weekly calendar for automated operation and includes a PLC module with 6 outputs and 8 inputs for precise temperature regulation.

The TT-600N is a robust and advanced ultrasonic cleaning equipment ideal for high-demand industrial cleaning applications.

Ultrasonic Characteristics

• Ultrasonic power: 5100Wp (10200W p-p)
• Ultrasonic generators with an output power of 5100Wp (10200W p-p)
• 3 submersible emitters with 34 PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body
• Working frequency: 40 KHz sweep system ± 2%

Control Panel

• 4.3” touch screen. Functional and intuitive access to ultrasound time setting, temperature and peripheric or optional systems.
• Programmable weekly calendar
• 6 outputs and 8 inputs temperature module PLC

Finishes and Accessories

• Tank made of 2 mm thick stainless steel AISI 304L
• External panel in 1 mm thick fingerprint resistant steel
• 20 mm thick thermo-acoustic insulation
• 1½” drain ball valve
• Height-adjustable silentblock legs
• Automatic insulated tank cover, in stainless steel, powered by pneumatic cylinder, with retainer, drip gutter and dead man safety system.
• Air blow gun for drying the parts
• Integrated waterflow system. Sweeps the waste floating on the surface, keeping the cleaning equipment inperfect condition
• (Optional): Filtration system (stainless steel filter with polypropylene / polyester bag) for waste and mud
