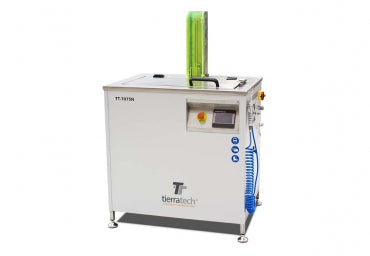

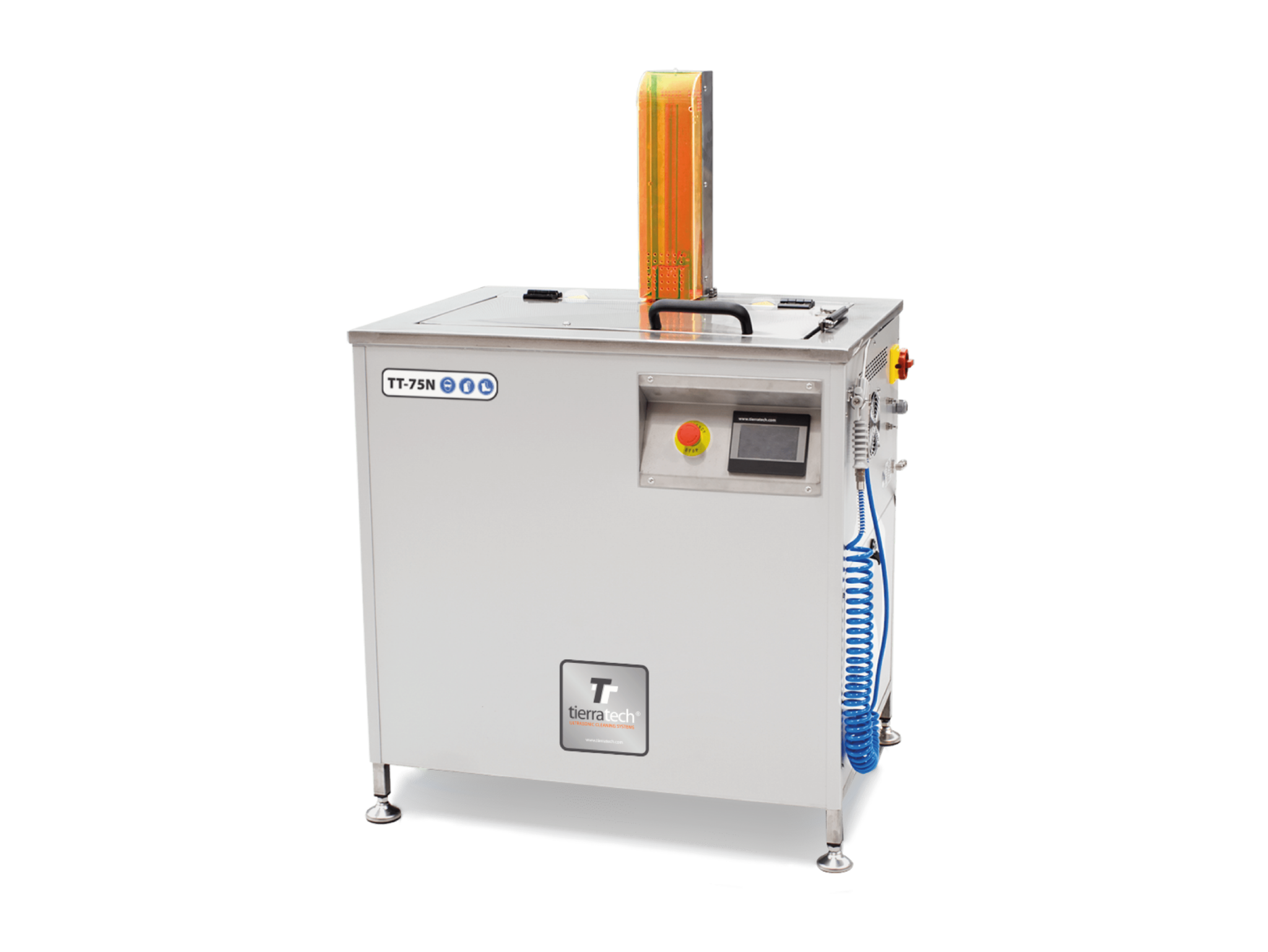

Tierra Tech TT-75N Ultrasonic Cleaning Equipment 75 Liter
Tax excluded. Shipping calculated at checkout
The ultrasonic cleaning equipment TT-75N is a compact yet powerful solution for precision cleaning, featuring a 100-liter capacity and powered by a 240V / 400V supply with a 2250W heating element.
Its ultrasonic system delivers 1000Wp (2000Wp-p) through a stainless steel submersible emitter equipped with 16 high-performance piezo-electric transducers for consistent and effective cleaning.
A 4.3” intuitive touchscreen control panel allows users to easily manage settings such as temperature and cleaning cycles, with a programmable weekly calendar for automated operation.
Ideal for industrial and technical applications, the TT-75N ensures reliable and efficient performance in maintaining component cleanliness.
Ultrasonic Characteristics
- Ultrasonic power: 1000Wp (2000W p-p)
- 1 ultrasonic generator with an output power of 1000Wp (2000W p-p)
- 1 submersible emitter with a power of 800Wp (1600Wp-p) made of 2,5 mm thick stainless steel AISI 316L. The emitter contains 16 PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body
- Working frequency: 40 KHz sweep system ± 2%
Control Panel
- 4.3” touch screen. Functional and intuitive access to ultrasound time setting, temperature and peripheric or optional systems.
- Programmable weekly calendar
- 6 outputs and 8 inputs temperature module PLC
Finishes and Accessories
- Tank made of 2 mm thick stainless steel AISI 304L
- External panel in 1 mm thick fingerprint resistant steel
- 20 mm thick thermo-acoustic insulation
- 1½” drain ball valve
- Height-adjustable silentblock legs
- Automatic insulated tank cover, in stainless steel, powered by pneumatic cylinder, with retainer, drip gutter and dead man safety system.
- Air blow gun for drying the parts
- Integrated waterflow system. Sweeps the waste floating on the surface, keeping the cleaning equipment inperfect condition
- (Optional): Filtration system (stainless steel filter with polypropylene / polyester bag) for waste and mud
For B2B customers, please register here for EU VAT exemption.
CHARACTERISTICS
- Power Supply: 220V.
- Heating element: 1500 W.
- Ultrasonic Power: 800W (1600W p-p).
- 1 ultrasonic generator with 800W (1600W p-p) output power.
- Working frequency: 40 KHz sweep system ± 2%.
- 1 transducer-box made of AISI 316 stainless-steel, 0’1” thick, with 16 high-performance IBL piezo-electric transducers in titanium-steel.
MACHINEPARTS
- 4.3” touch screen. Functional and intuitive access to ultrasound time setting, temperature and peripheric or optional systems. Programmable weekly calendar.
- 7 outputs & 7 inputs temperature module PLC.
- Tank built in AISI 304 Stainless steel, 2 mm thick.
- External panel in fingerprint-resistant steel, 1 mm thick.
- Reinforced pneumatic platform for loading and unloading up to 30 Kg.
- Thermo-acustic isolator K-Flex Duct Net,20 mm thick.
- 1" draining ball valve.
- Insulated tank cover made of Stainless-Steel.
- Air blow-gun for drying parts.
- Integrated wateflow system. Removes the existing waste on the tank surface, keeping the cleaning equipment in perfect condition.
- (Optional): Filtration system (Stailess-Steel filter with polypropylene/polyester bag) for waste and mud.
