Cleaning Machine with Pneumatic Lifting Door - PD models

Features and benefits

This machine performs a single stage cleaning process, making it a cost-effective solution for components requiring surface cleaning only. However, a range of accessory options are available to increase cleaning effieciency, optimizing labor, energy and water consumption while ensuring compliance with strict environmental regulations.

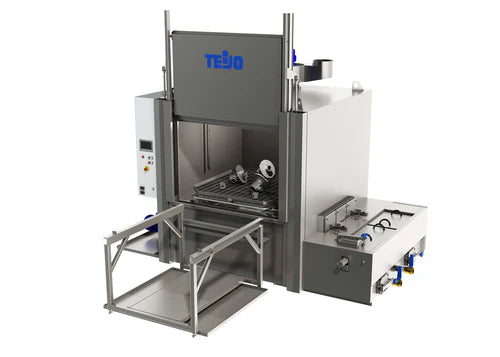

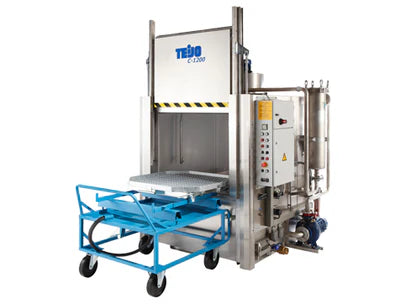

Parts are loaded from the front into the machine using a load carriage with a capacity of up to 2,500 kg. Depending on the model, the machine can be equipped with a pneumatic lift door (PD). The cleaning cabinet is available in heights of 550 mm, 800 mm or 1200 mm.

The operator controls the cleaning process via a timer, thermostat and dedicated switches (e.g., heating, oil skimming) located on the electrical control panel.
The machine is constructed from stainless steel for durability and long-lasting performance.

Selecting a model

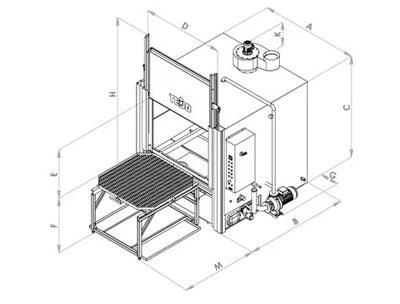

The correct cleaning machine model is determined by the dimensions of the component to be cleaned, taking into account its height and diameter or height and cross-
section.

The model number indicates the diameter of the spray pipe’s rotation circle (e.g., C-1600SS = 1600 mm), which determines the maximum cross-section of the component that can be cleaned.

The maximum component height is either

Standard equipment:
The machines C-800 - C-2600 are equipped with
- load carriage LC in stainless steel
- load grating LG in stainless steel
- filterbasket, water distributor, pump in stainless steel
- motorized rotation MR-2S of upper spray pipes for C-2600

Optional accessories
