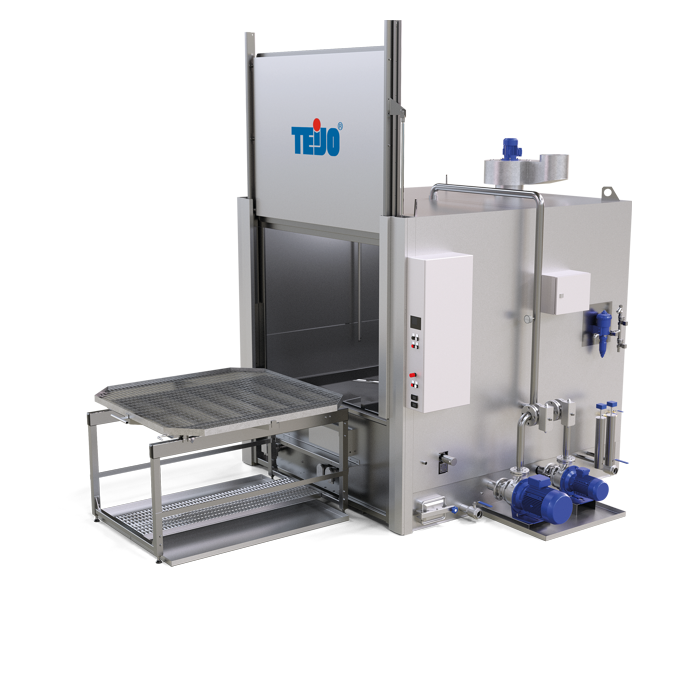

EVO MULTI-STAGE CLEANING MACHINES
Tax excluded. Shipping calculated at checkout
Features and benefits

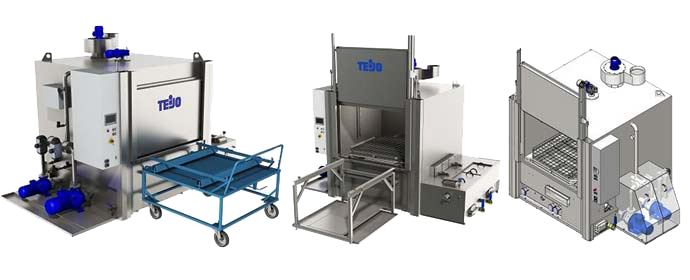

The EVO Series provides a cost-effective solution for applications requiring a multi-stage cleaning process. A compact version of the multi-stage machines with 2 liquid tanks below the cleaning chamber, the EVO is perfect for space-constrained environments, while offering the same high performance cleaning capabilities as the Multi-Stage model.
Various accessory options increase efficiency, optimizing labor, energy and water consumption while ensuring compliance with strict environmental regulations.
Parts are loaded from the front using a load carriage with a capacity of up to 2,000 kg. The standard configuration includes a pneumatic lift door (PD), with the option to add a second if required. The cabinet is available in heights of 800 mm or 1200 mm.
The operator controls the process via a programmable logic controller (PLC) with a user-friendly display. The EVO Series is constructed from stainless steel for durability and long-lasting performance.
Selecting a model
The correct cleaning machine model is determined by the dimensions of the component to be cleaned, taking into account its height and diameter or height and cross-section. The model number indicates the diameter of the spray pipe’s rotation circle (e.g. C-1600SS = Ø 1600 mm), which determines the maximum cross-section of the component that can be cleaned.
The maximum component height is either:
• 800 mm (e.g., C-1600-22SS-PD)
• 1200 mm (e.g., C-1600-22HSS-PD)
