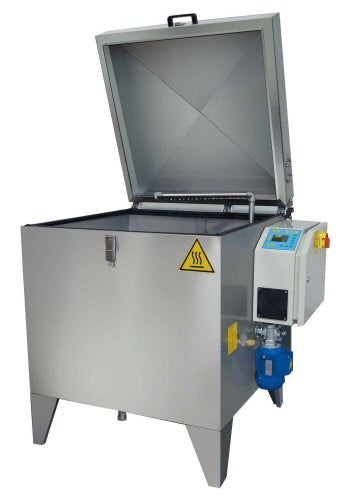

TEKNOX / SME S80 LT Washing Machine

SKU: S80 LT

- 400 Volt
- For washing temperatures up to 60⁰ C



What is included in all Simplex 80 machines

• Panels under the basket with grease collecting filters

• Disc oil separator with gear motor

• Reinforced basket in electrowelded net with external edge of galvanized steel

• Electric pump and pipes in stainless steel AISI 304 with special Gaskets

• Filter in stainless steel AISI 304 on the pump suction

• Tank edge Gasket in EPDM

• Electrical resistor in stainless steel Incoloy

• Mechanical rotation of the basket by a gear motor

• IP 65 electric system with PLC (DGT V4)

• Structure and plates in stainless steel

• Flexible suction and pump delivery pipes (easy maintenance)

• Tank liquid minimum level control for the protection of pump and resistor

• Tank liquid maximum level control and solenoid valve for automatic water intake

• Safety limit switch on the cover opening

• Laser-drilled washing pipes in stainless steel (more pressure, less maintenance)

• Weekly programming for the activation of heating and oil separator (if installed)

What are the additional accessories

• Steam extraction (patented system)
• High pressure washing pump 2,2 kW 5,0 bar 180 lt/min
• Compressed air blowing and independent pipes



TECHNICAL DATA SIMPLEX 80

Closed machine overall dimensions (L x P x H) 112 x 100 x 110 cm

Opened machine overall dimensions (L x P x H) 112 x 105 x 185 cm

Washing capacity ( Ø x H ) 78 x 43 cm

Basket load capacity 100 Kg

Tank capacity 130 lt

Washing pump 0,55 kW 2,5 bar 120 lt/min

Washing heating 4,0 kW

Mechanical rotation 0,09 kW

Steam extractor 0,09 kW 70 Nm3/h

Blowing (air consumption at 4 bar) 150 Nm3/h

Supply 400V 3PH+N+PE

Number of nozzles 30

Download SME/Teknox brochure
