Tierra Tech MOT-1000N Ultrasonic Cleaning Equipment 1000 Liter

SKU: MOT-1000N
Sale price€43.450,00

Tax excluded. Shipping calculated at checkout

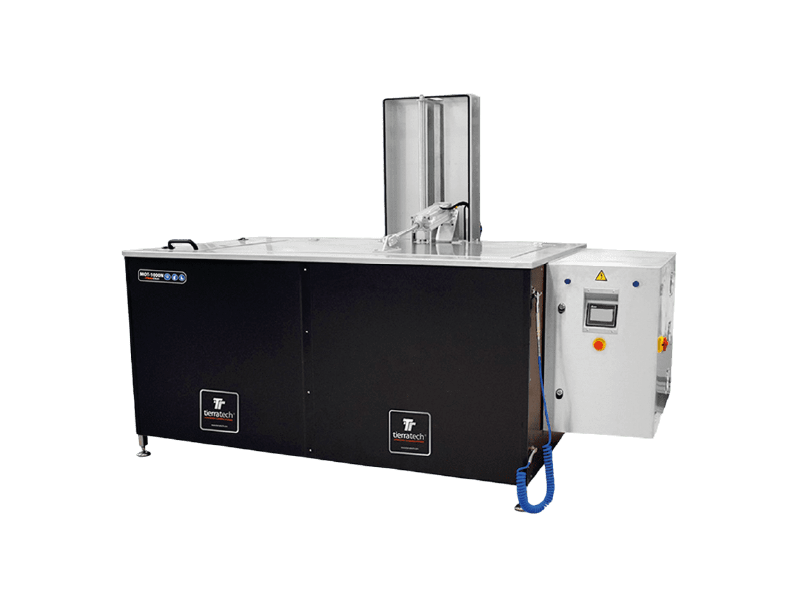

The ultrasonic cleaning equipment MOT-1000N features a robust 2 mm thick AISI 304L stainless steel tank with a fingerprint-resistant 1 mm thick external panel and 20 mm thermo-acoustic insulation for quiet, efficient operation.

It includes a reinforced pneumatic platform supporting loads up to 500 kg, height-adjustable silentblock legs, and an automatic insulated stainless steel tank cover operated by a pneumatic cylinder. Additional features include a 1½” drain ball valve, integrated waterflow system to maintain cleaning fluid quality, and an air blow gun for quick drying of parts.

The ultrasonic cleaning equipment MOT-1000N offers efficient and reliable cleaning for critical components, helping optimize processes and extend the lifespan of parts in the automotive sector

Ultrasonic Characteristics

  • Ultrasonic power: 6800Wp (13600Wp-p)
  • Ultrasonic generator with an output power of  6800Wp (13600Wp-p)
  • 4 submergible emitters with 1700W(3400Wp-p) of power built in INOX AISI 316L steel, 2,5mm thick. The emitter contains 34 high-performance PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body.
  • Working frequency: 40 KHz sweep system ± 2%

Control Panel

  • 4.3” touch screen. Functional and intuitive access to ultrasound time setting, temperature and peripheric or optional systems.
  • Programmable weekly calendar
  • 6 outputs and 8 inputs temperature module PLC

Finishes and Accessories

  • Tank made of 2 mm thick stainless steel AISI 304L
  • External panel in 1 mm thick fingerprint resistant steel
  • 20 mm thick thermo-acoustic insulation
  • 1½” drain ball valve
  • Height-adjustable silentblock legs
  • Automatic insulated tank cover, in stainless steel, powered by pneumatic cylinder, with retainer, drip gutter and dead man safety system.
  • Air blow gun for drying the parts
  • Integrated waterflow system. Sweeps the waste floating on the surface, keeping the cleaning equipment inperfect condition
  • Pneumatic load platform: Up to 500 kg
