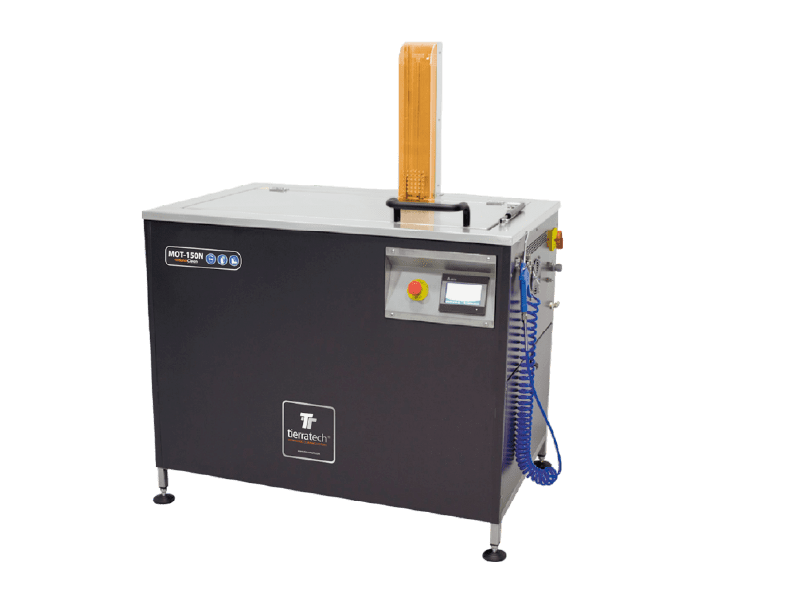

Tierra Tech MOT-150N Ultrasonic Cleaning Equipment 150 Liter

Motor Clean is a specialized line of ultrasonic cleaning equipment and systems developed to meet the needs of automotive professionals.

The ultrasonic cleaning equipment MOT-150N features a durable tank made of 2 mm thick AISI 304L stainless steel, complemented by a fingerprint-resistant 1 mm thick external panel. It is insulated with 20 mm thick thermo-acoustic material to ensure energy efficiency and quiet operation.

Additional features include a reinforced pneumatic platform capable of handling loads up to 60 kg, a 1” drain ball valve, and height-adjustable silentblock legs for stability. The insulated stainless steel tank cover has a pneumatic shock absorber, and the system comes equipped with an air blow gun for drying parts and an integrated waterflow system that removes floating debris, maintaining optimal cleaning conditions.

Experience unmatched durability and efficiency with the ultrasonic cleaning equipment MOT-150N, engineered to deliver superior cleaning performance while ensuring ease of use and long-lasting reliability.

Ultrasonic Characteristics

• Ultrasonic power: 1700Wp (3400Wp-p)
• 1 ultrasonic generator with an output power of 1700Wp (3400Wp-p)
• 1 submergible emitter with 1700Wp (3400Wp-p) of power built in INOX AISI 316L steel, 25,4 mm thick. The emitter contains 16 high-performance PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body.
• Working frequency: 40 KHz sweep system ± 2%

Control Panel

• Integrated control panel  with 7″ TFT screen.
• Time and temperature control.
• Movement button (up – down – shaking).
• US button (connect – disconnect), direct ultrasonic alarms and selectors.
• Heating button (on – off).
• WFS/Filter button (optional) (on – off).
• START-STOP button (connect – disconnect cycle).
• ON-OFF button (on – off control).
• Capacity to work with 22 programmable cycles, protected by password.
• Temperature control through PT100, over temperature safety and breakage sensor.
• Weekly programmer, for preheating and turning off the machine.
• Level control.
• IP65 protection.

Finishes and Accessories

• Tank built in stainless steel AISI 304L of 2 mm.
• Exterior paneling in 1 mm. steel with special anti-footprint finish and easy to clean.
• Thermal-acoustic insulation of 20 mm thickness.
• Recessed handles.
• Stainless steel basket with anchoring system for loading, unloading and draining of pieces.
• Ball valve for drainage of ½” inch.
• Height adjustable silentblock legs.
• Lid made of stainless steel, heat-insulated and manual opening.
