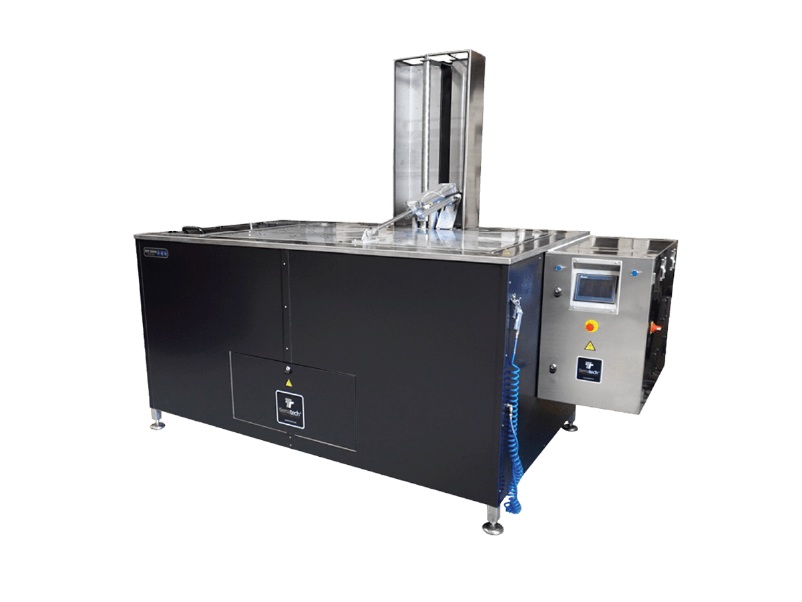

Tierra Tech MOT-2000N Ultrasonic Cleaning Machine 2000 Liter

SKU: MOT-2000N
Sale price€55.235,00

Tax excluded. Shipping calculated at checkout


The ultrasonic cleaning equipment MOT-2000N is designed for the automotive sector, offering a 1000-liter tank and 10200W of ultrasonic power (20400Wp-p). It includes four submersible emitters with 34 PZT piezoelectric transducers each, ensuring deep, uniform cleaning at a 40 kHz frequency with a ±2% sweep system.

With a robust AISI 304L stainless steel tank and a pneumatic loading platform that supports up to 500 kg, the MOT-2000N is ideal for cleaning large automotive components such as engine blocks, cylinder heads, and gearboxes.

This high-performance ultrasonic cleaning equipment ensures precision cleaning while reducing manual effort and downtime.

Ultrasonic Charcteristics

  • Ultrasound generators with an output power of 10200W(20400Wp-p)
  • Ultrasonic power: 10200W(20400Wp-p)
  • Working frequency: 40 KHz. Frequency (Sweep System ± 2%)
  • 4 submersible emitters 34 PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body

Control Panel

  • 4.3” touch screen. Functional and intuitive access to ultrasound time setting, temperature and peripheric or optional systems.
  • Programmable weekly calendar
  • 6 outputs and 8 inputs temperature module PLC

Finishes and Accessoiries

  • Tank made of 2 mm thick stainless steel AISI 304L
  • External panel in 1 mm thick fingerprint resistant steel
  • 20 mm thick thermo-acoustic insulation
  • 1½” drain ball valve
  • Height-adjustable silentblock legs
  • Automatic insulated tank cover, in stainless steel, powered by pneumatic cylinder, with retainer, drip gutter and dead man safety system.
  • Air blow gun for drying the parts
  • Integrated waterflow system. Sweeps the waste floating on the surface, keeping the cleaning equipment inperfect condition
  • Pneumatic load platform: Up to 500 kg
