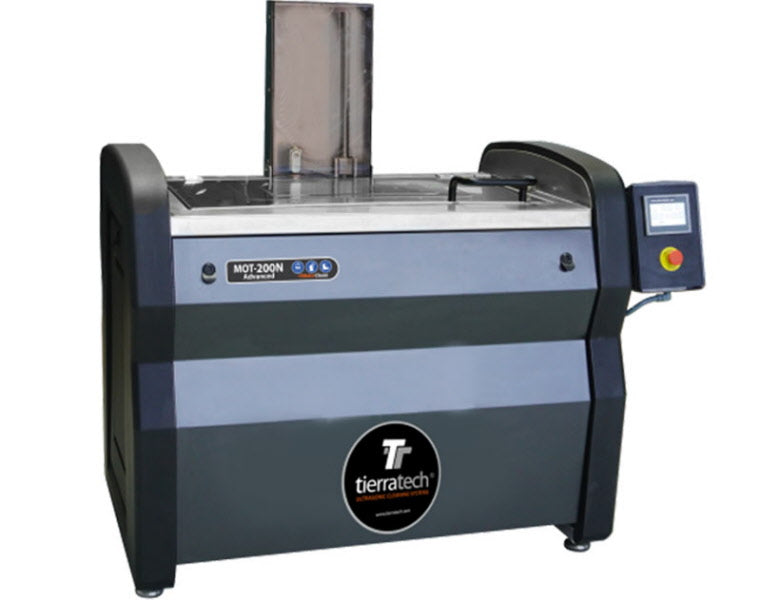

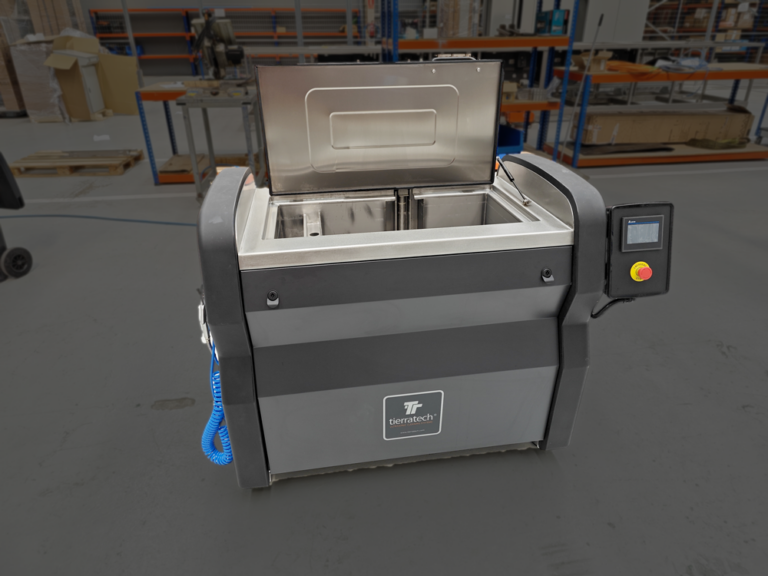

Tierra Tech MOT-200 ADVANCED Ultrasonic Cleaning Machine 200 Liter

The ultrasonic cleaning equipment MOT-200N ADVANCED is the ideal choice for degreasing, decarbonising, and descaling engine parts and component

Motor Clean is a dedicated range of ultrasonic cleaning equipment and systems, expertly engineered for automotive industry professionals.

At TierraTech, we have an in-depth understanding of the sector’s cleaning challenges, which has enabled us to develop a highly efficient solution that delivers consistent, high-quality results throughout the maintenance process.

Our systems are the perfect choice for degreasing, decarbonising, and descaling engine parts and components. They offer exceptional cleaning performance, even in the most inaccessible areas, regardless of part complexity — all while requiring minimal manual effort.

Ultrasonic Characteristics

• Ultrasonic Power: 1000W (2000W p-p)
• 1 Ultrasonic generator with an output power of 1000W (2000Wp-p) featuring automatic power monitoring and frequency wave tracking.
• Ultrasonic emitters with a power of 1000W (2000W p-p) made of 2.5 mm thick AISI 316 L stainless steel, equipped with 20 high-performance IBL piezoelectric transducers made of titanium-steel, each with 50 W.
• Operating frequency: 40 kHz with a frequency sweep system of ± 2%.

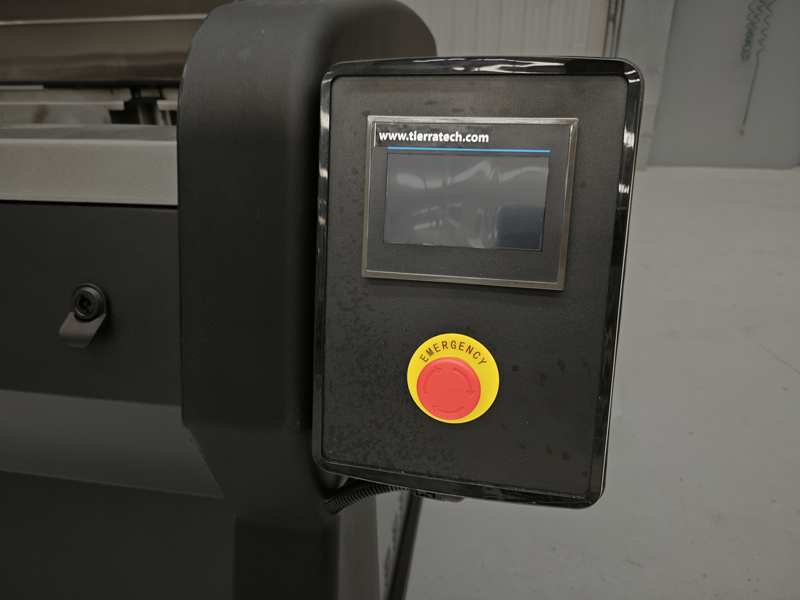

Control Panel

• 7″ Touch Screen
• Controls for equipment preheating time, weekly calendar, alarms, heating element, as well as full control of the lifting platform and water level.
• Includes the ability to create different work programs

Finishes and Accessories

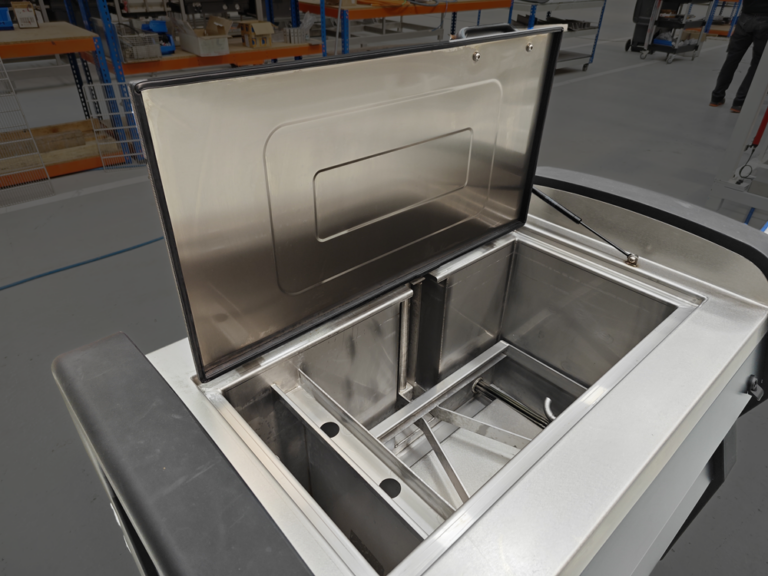

• Ultrasonic Cleaning Tank: Constructed from 2 mm thick AISI 304 stainless steel with 20 mm thick internal thermo-acoustic insulation.
• AISI 304 Lid: Opening/closing system with 10 mm thick thermo-acoustic insulation.
• Pneumatic Platform: Made from AISI 304 stainless steel with a load capacity of up to 60 kg.
• WFS (Waterflow System for Oil Separation): Independent tank for capturing surface oils and particles, with a drain for oil removal.
• Electric Heating Element: 2250 W power output, made from Incoloy®, a metal alloy resistant to high temperatures and corrosion.
• Optional: TTF1 Bag Filter for sludge removal from the bottom of the tank, constructed from AISI 304 stainless steel.
