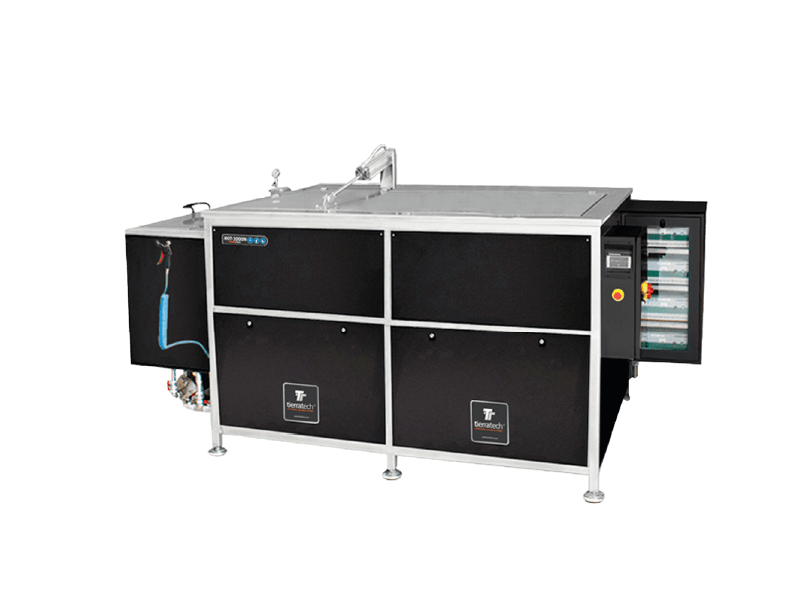

Tierra Tech MOT-3000N Ultrasonic Cleaning Machine 3000 Liter

SKU: MOT-3000N
Sale price€68.260,00

Tax excluded. Shipping calculated at checkout


The MOT-3000N ultrasonic cleaning equipment is engineered for heavy-duty industrial and automotive cleaning applications.

With a capacity to handle large components, it features 4 ultrasonic generators delivering 13600Wp (27200W p-p) and 8 submersible emitters equipped with high-performance PZT piezo-electric transducers.

Its reinforced pneumatic platform supports up to 1500 kg, enabling safe and efficient handling of large engine parts or industrial tools. Operates at 40 kHz with sweep system for optimal ultrasonic distribution.

Choose the MOT-3000N to ensure powerful, precise ultrasonic cleaning for oversized automotive components and industrial parts, improving maintenance and productivity.

Ultrasonic Characteristics

  • Ultrasonic power: 13600Wp (27200W p-p)
  • 4 ultrasonic generators with an output power of 13600Wp (27200W p-p)
  • 8 submersibles emitters with a power of 1700Wp (3400W p-p) made of 2.5 mm thick stainless steel AISI 316L steel, The emitter contains 34 PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body.
  • Working frequency: 40 KHz sweep system ± 2%

Control Panel

  • 4.3” touch screen. Functional and intuitive access to ultrasound time setting, temperature and peripheric or optional systems.
  • Programmable weekly calendar
  • 6 outputs and 8 inputs temperature module PLC

Finishes and Accessories

  • Tank made of 2,5 mm thick stainless steel AISI 304L
  • External panel in 1 mm thick fingerprint resistant steel
  • 20 mm thick thermo-acoustic insulation
  • Reinforced pneumatic platform for loading and unloading up to 1500 kg
  • 1½” drain ball valve
  • Height-adjustable silentblock legs
  • Automatic insulated tank cover in stainless steel operated by a pneumatic cylinder
  • Air blow gun for drying the parts
  • Integrated waterflow system. Sweeps the waste floating on the surface, keeping the cleaning equipment in perfect condition
  • (Optional): Filtration system (stainless steel filter with polypropylene / polyester bag) for waste and mud
