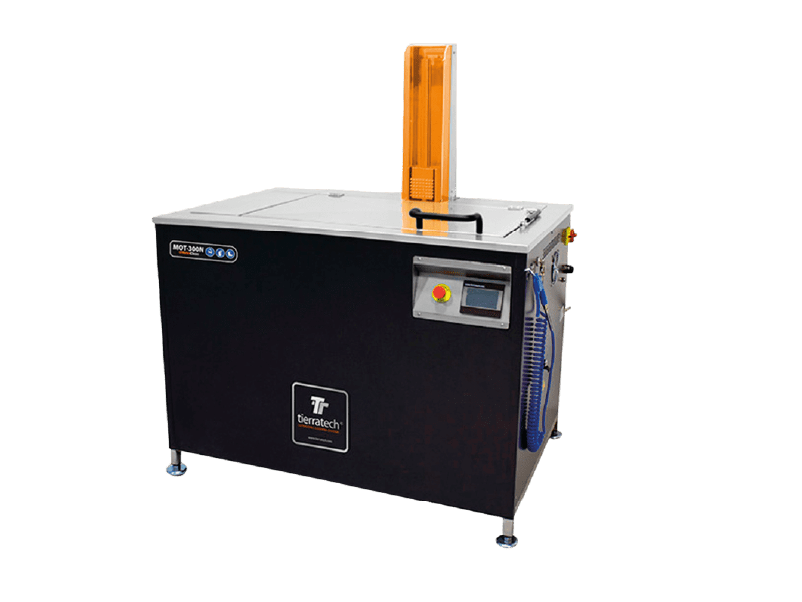

Tierra Tech MOT-300N Ultrasonic Cleaning Equipment 300 Liter
Tax excluded. Shipping calculated at checkout
The MOT-300N ultrasonic cleaning equipment features a 30-litre capacity and is engineered for demanding industrial and automotive applications.
It delivers 4000Wp (8000Wp-p) of ultrasonic power through two submersible emitters, each equipped with 34 high-efficiency PZT piezoelectric transducers.
With a durable stainless steel AISI 316 build, fingerprint-resistant exterior, and 20 mm thermo-acoustic insulation, it ensures optimal cleaning performance and thermal efficiency. The unit also includes a reinforced pneumatic platform for handling components up to 250 kg.
The ultrasonic cleaning equipment MOT-300N is the perfect choice for the automotive industry, delivering powerful, reliable, and precise cleaning for engine parts and components.
Ultrasonic Characteristics
- 1 ultrasonic generator with an output power of 3000Wp (6000Wp-p)
-
2 submersibles emitters with a power of 1700Wp
(3400W p-p) made of 2.5 mm thick sainless steel AISI 316L steel. The emitter contains 34 high-performance PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body. - Working frequency: 40 KHz sweep system ± 2%
Control Panel
- 4.3” touch screen. Functional and intuitive access to ultrasound time setting, temperature and peripheric or optional systems.
- Programmable weekly calendar
- 6 outputs and 8 inputs temperature module PLC
Finishes and Accessories
- Tank made of 2 mm thick stainless steel AISI 304L
- External panel in 1 mm thick fingerprint resistant steel
- 20 mm thick thermo-acoustic insulation
- Reinforced pneumatic platform for loading and unloading up to 250 kg
- 1½” drain ball valve
- Height adjustable legs
- Insulated tank cover in Stainless-Steel with pneumatic shock absorber
- Air blow-gun for drying parts
- Integrated wateflow system. Removes the existing waste on the tank surface, keeping the cleaning equipment in perfect condition
- (Optional): Filtration system (Stailess-Steel filter with polypropylene/polyester bag) for waste and mud
